MAGE316U20-ISCSI
Build-to-Order - 3U 16-bay iSCSI RAID Storage Rackmount JBOD Enclosures
Build-to-Order - 3U 16-bay iSCSI RAID Storage Rackmount JBOD Enclosures
- Aluminum Heat-Sink Body and Fan Coolers for Best Ventilation
- Supports Sixteen SATA Drives
- Individual Key Lock of Each HDD Tray for Physical Security
- LED Indicators for Power and Activity on Each HDD Tray
- Environmental Monitoring with Power/FAN/TEMP LEDs and Mutable Buzzer Alarm
- Front-end Dual Gigabit Ethernet TCP/IP Offload Device
- Hardware RAID Intel IOP 331 64-bit processor
- Supports Raid Levels 0, 1, 0+1, 5, 6, JBOD
- Online Volume Expansion & Migration
- Supports MPIO in Windows 2000 & Windows 2003 Server system
- Event notification via Email, SNMP trap, Windows & bower
- Hot-Swap Both on Host and Device
Product Introduction
MAGE316U20-iSCSI a 16 bay iSCSI RAID rackmount storage subsystem it provide two 1Gb iSCSI host Supports MPIO in Windows 2000/2003 server system and SATA device attachment. The array controller provides reliable data protection for servers and offers a newer level polynomial technology to implement the extreme performance RAID 6 function. On the each HDD tray have individual key lock for physical security and LED Indicators for power and activity. The chassis build with an aluminum handle, heavy-duty cold-rolled steel metal manufactured to EIA-RS310D industry Standard with RoHS Compliance. Advance thermal cooling design with two of 7.5cm tool-less hot-swap blowers fan for self-contained ventilation that optimize airflow to keep system cooler and easy maintenance.
MAGE316U20-iSCSI a 16 bay iSCSI RAID rackmount storage subsystem it provide two 1Gb iSCSI host Supports MPIO in Windows 2000/2003 server system and SATA device attachment. The array controller provides reliable data protection for servers and offers a newer level polynomial technology to implement the extreme performance RAID 6 function. On the each HDD tray have individual key lock for physical security and LED Indicators for power and activity. The chassis build with an aluminum handle, heavy-duty cold-rolled steel metal manufactured to EIA-RS310D industry Standard with RoHS Compliance. Advance thermal cooling design with two of 7.5cm tool-less hot-swap blowers fan for self-contained ventilation that optimize airflow to keep system cooler and easy maintenance.
SUPPORT
Providing technical support as of top priority.
Contact us today!
tech support contact info:
Tel: 1-626-303-8885
Product Support Request
Contact us today!
tech support contact info:
Tel: 1-626-303-8885
Product Support Request
| Model Number | MAGE316U20-ISCSI |
| RoHS Compliance Version | Yes |
| Form Factor | 3U |
| Host Interface | Dual Port iSCSI Gigabit Ethernet |
| HDD Interface | 3.5" SATA I/II |
| Hot Swap | Both on Host and Device |
| Hotswap 3.5" | 16 |
| LED Display | Green-Power on indicator/ Blue-Busy (HDD Accessing) indicator/ Power on LED-white/ Fan normal-green; fail-red (too slow rpm or stop)/ Temp normal-green; over 55 ?C-red |
| Material | Heavy-duty Cold-rolled Steel |
| OS Support | OS Independent, Compatible with Windows, Linux & Mac |
| Package Content | Enclosure x1, HDD Tray x16, Power Cord x1, Manual CD x1, HDD Mounting Screws x64, Key for HDD Tray x2 |
| Power Supply | 400W Single PSU |
| Raid Level | 0, 1, 0+1, 3, 5, 6 & JBOD |
| Ordering Information (Part Number) | with 400W Redundant PSU:mAGE316U20-iSCSI-R |
| Dimensions (WxHxD) | 19.00" x 5.16" x 18.00" 482.6 mm x 131.1 mm x 457.2 mm |
FAQ
There are no FAQ entries for this model. |
Accessories
| Image | Accessory | Description |

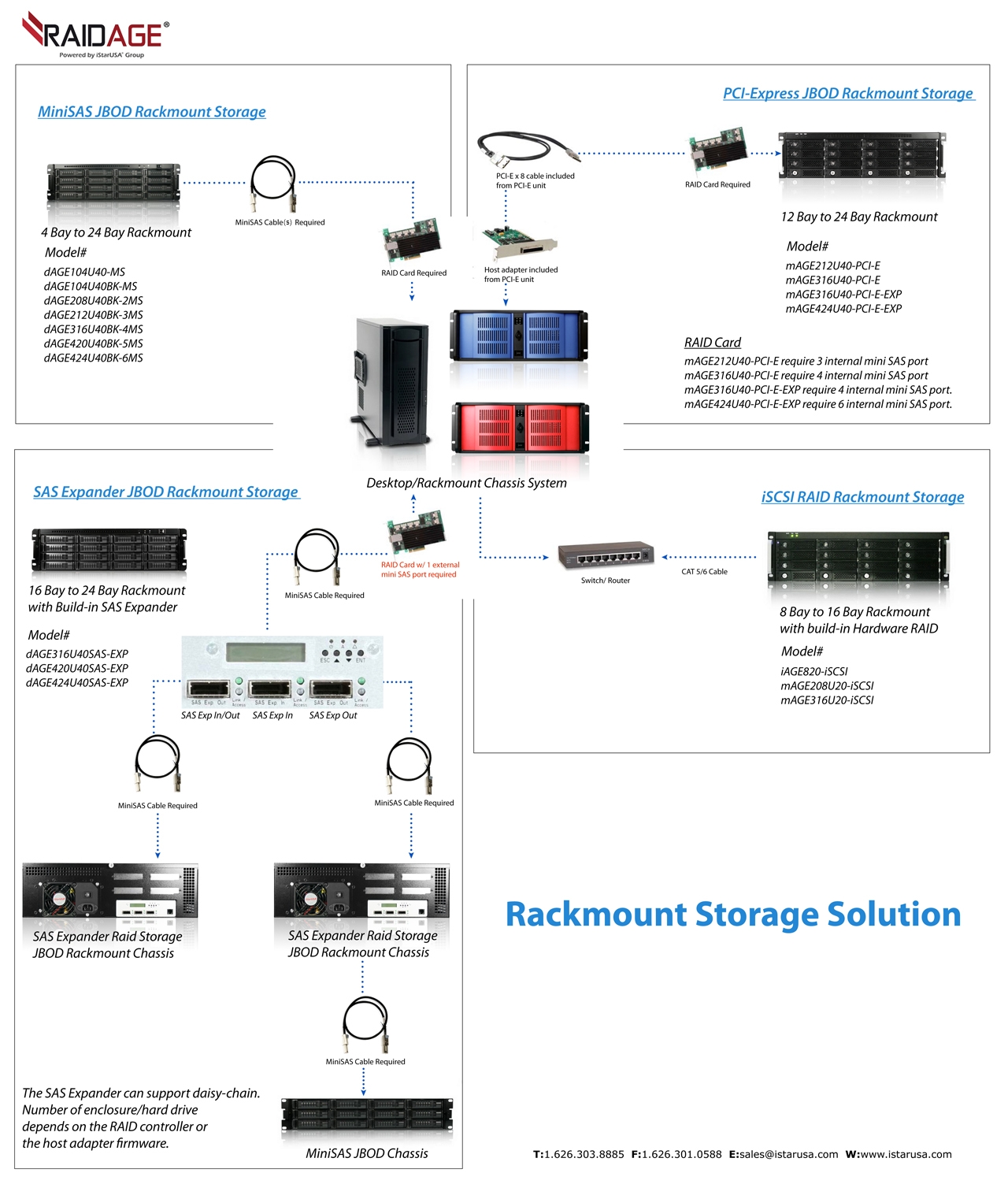

Connection Diagram
