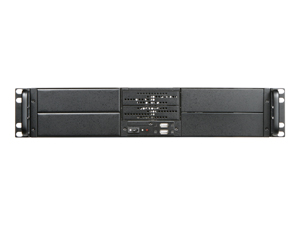

E-204V2-L
Build-to-Order - 2U E-ATX 4 x 5.25" Bays Rackmount Chassis
Build-to-Order - 2U E-ATX 4 x 5.25" Bays Rackmount Chassis
- Power and Reset Switch
- 1.2mm Steel Body Chassis
- 80mm x4 Cooling Fans
- Supports E-ATX Motherboard
- Supports Front Access USB2.0 x2
- 2 x 3.5" Bays & 4 x 5.25" Bay
- Power and HDD LED Indicators
- Supports HDD installation from front side
Product Introduction
E-204V2-L rackmount chassis is designed with four 5.25" drive bays and two 3.5" drive bays. combined with BPU 2.5" to 5.25" hdd cages provides up to 24 x 2.5" hard drives or SSDs capability for any RAID configuration. Four 80mm fans is equipped with E-204V2-L to provide the best air ventilation preventing critical equipment from heat damage. The chassis also supports E-ATX motherbaord and redundant power supply to provide maximum reliability and performance for server applications.
E-204V2-L rackmount chassis is designed with four 5.25" drive bays and two 3.5" drive bays. combined with BPU 2.5" to 5.25" hdd cages provides up to 24 x 2.5" hard drives or SSDs capability for any RAID configuration. Four 80mm fans is equipped with E-204V2-L to provide the best air ventilation preventing critical equipment from heat damage. The chassis also supports E-ATX motherbaord and redundant power supply to provide maximum reliability and performance for server applications.
SUPPORT
Providing technical support as of top priority.
Contact us today!
tech support contact info:
Tel: 1-626-303-8885
Product Support Request
Contact us today!
tech support contact info:
Tel: 1-626-303-8885
Product Support Request
| Model Number | E-204V2-L |
| RoHS Compliance Version | Yes |
| Form factor | 2 U |
| Standard Drive Bays |
3.5" Drives: 2 5.25" Drives: 4 |
| Indicators | Power, HDD |
| Switches | Power, Reset |
| Expansion Slots | 7 (Low profile) |
| Material of Handle | Aluminum |
| Material of Main Chassis | Zinc-Coated Steel SECC 1.2mm |
| Color of Main Chassis | Black |
| Front Connector | 2x USB 2.0 |
| Motherboard Size | 12 x 13 (EATX, ATX, microATX) |
| Cooling Fan | 4x80mm |
| Dimensions (WxHxD) | 19.00" x 3.50" x 24.61" 482.6 mm x 88.9 mm x 625.1 mm |
FAQ
There are no FAQ entries for this model. |
Optional Accessories
| Model # | Description | |
 | BPU-124V2-SS | Build-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack |
 | BPU-126-SA | Special Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack |
 | BPU-230SATA | 2x 5.25" to 3x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack |
 | BPU-2535-SI | Build-to-Order - 3.5" to 2.5" SATA 6 Gbps HDD Hot-swap Rack |
 | RP-COMBO-SLIM | 5.25" Optical Drive and Floppy Drive Cage Holder |
 | RP-COMBO-SLIM2535 | 2.5"/ 3.5" HDD & Slim Optical Drive to 5.25" Drive Bay Cage |
 | RP-FDD35 | 5.25" Drive Bay Bracket for 3.5" Devices |
 | T5F-SS | EOL - Trayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack |
 | T-7M1-SATA | 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack |
 | T-7-SA | Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack |
 | TC-ISTORM7 | 2x5.25" to 3x3.5" Internal Mounting Cooling Kit with Removable Filter |
 | TC-ISTORM8 | 3.5" to 5.25" Hard Drive Cooling Heat Sink |
 | TC-RAIL-24 | 24" Sliding Rail Kit for Most Rackmount Chassis |
 | TC-RAIL-26 | 26" Sliding Rail Kit for Most Rackmount Chassis |
 | BPN-DE230SS | Trayless 2x5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack |
 | RP-4HDD255F | EOL 4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket |
 | RP-2HDD2535 | 5.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives |
 | BPN-DE110SS | Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack |
 | BPU-124DE-SS | 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack |
 | T-G525-SS | Industrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack |
 | BPN-2535DE-SA | 3.5" to 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack |
 | T-G35-SS | Industrial 3.5" to 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack |
 | BPN-DE110SS-WB | Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel |
 | BPN-DE230SS-WB | Trayless 2x 5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack with Wood Look Bezel |
 | BPN-124K-SA | Trayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack |
 | T-5K3525U-SA | Trayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0 |
 | T-5K225T-SA | Trayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack |
 | T-5K35T-SA | Trayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack |
 | T-5K25TU-SA | Trayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0 |
 | T-35K25-SA | Build-to-Order - Trayless 3.5" to 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack |
Compatible Power Supplies
| Model # | Description | Required Bracket(s) | |
| Redundant | |||
 | IS-500S2UP | Build-to-Order - 500W 2U Redundant Power Supply | Brackets Not Required |
 | IS-600S2UP | EOL - 600W 2U Redundant Power Supply | Brackets Not Required |
 | IS-700S2UP | Build-to-Order - 700W 2U Redundant Power Supply | Brackets Not Required |
| Single | |||
 | IS-2U35PD8 | 2U 350W 80 Plus High Efficiency Power Supply | Brackets Not Required |
 | IS-2U46PD8 | 2U 460W 80 Plus High Efficiency Power Supply | Brackets Not Required |
 | TC-2U50PD8 | EOL - 500W 2U High Efficiency Switching Power Supply | BRT-0303-1 (1) |
 | IS-2U50PD8 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply | Brackets Not Required |
 | TC-2U60PD8 | EOL - 600W 2U High Efficiency Switching Power Supply | BRT-0303-1 (1) |
Compatible Motherboards
| Model # | Motherboard Size | Company Name |
There are no compatibility motherboard for this model. | ||
