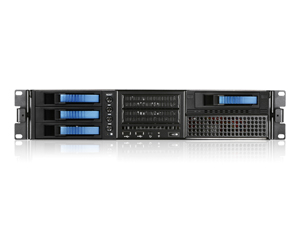

E204L-M1B3SA
2U EATX Rugged Rackmount 4x3.5" Hotswap Chassis
  • 1.2mm Steel Body Chassis
  • 80mm x4 Cooling Fans
  • Supports E-ATX Motherboard
  • Supports Front Access USB2.0 x2
  • 4x 3.5" Hotswap Drive Bays with Optional Color





Product Introduction
E204L-M1B3SA series rackmount chassis is designed with 4 x 3.5" hotswap drive bays, one 5.25" drive bays, and two 3.5" drive bays. Four 80mm fans are equipped with chassis to provide the best air ventilation preventing critical equipment from heat damage. E204L-M1B3SA also supports E-ATX motherbaord and redundant power supply to provide maximum reliability and performance for server applications.

SUPPORT

Providing technical support as of top priority.
Contact us today!
tech support contact info:
Tel: 1-626-303-8885

Product Support Request

Model NumberE204L-M1B3SA
RoHS Compliance VersionYes
Form factor2 U
Standard Drive Bays 3.5" Drives: 2
Hotswap 3.5": 4
5.25" Drives: 1
Hotswap HDD Type:3.5" SAS I/II & SATA I/II/III
IndicatorsPower, HDD
SwitchesPower, Reset
Supported PSU Type2U
Expansion Slots6x low profile
Material of HandleAluminum
Material of Main ChassisZinc-Coated Steel SECC 1.2mm
Color of Main ChassisBlack
Front Connector2x USB 2.0
Motherboard Size12 x 13 (EATX, ATX, microATX)
Cooling Fan4x80mm
Ordering Information
(Part Number)		Black HDD Handle:E204L-M1B3BK
Blue HDD Handle:E204L-M1B3BL
Red HDD Handle:E204L-M1B3RD
Silver HDD Handle:E204L-M1B3SL
Dimensions (WxHxD)19.00" x 3.50" x 25.10"
482.6 mm x 88.9 mm x 637.5 mm


Download
FAQ


There are no FAQ entries for this model.

Optional Accessories

Model #Description
TC-RAIL-2424" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2626" Sliding Rail Kit for Most Rackmount Chassis
BPN-2535DE-SA3.5" to 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-G35-SSIndustrial 3.5" to 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
BPN-124K-SATrayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-5K3525U-SATrayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
T-5K225T-SATrayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-5K35T-SATrayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack
T-5K25TU-SATrayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
BPU-124V2-SSBuild-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
BPU-126-SASpecial Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T5F-SSEOL - Trayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack
T-7M1-SATA5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
BPU-124DE-SS5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
T-G525-SSIndustrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack

Compatible Power Supplies

Model #DescriptionRequired
Bracket(s)
Redundant
IS-350R2UPBuild-to-Order - 350W 2U Redundant Power SupplyBrackets Not Required
IS-400R2UPBuild-to-Order - 400W 2U Redundant Power SupplyBrackets Not Required
IS-460R2UPEOL - 460W 2U Redundant Power SupplyBrackets Not Required
IS-500S2UPBuild-to-Order - 500W 2U Redundant Power SupplyBrackets Not Required
IS-600S2UPEOL - 600W 2U Redundant Power SupplyBrackets Not Required
Single
IS-2U35PD82U 350W 80 Plus High Efficiency Power SupplyBrackets Not Required
IS-2U46PD82U 460W 80 Plus High Efficiency Power SupplyBrackets Not Required
TC-2U50PD8EOL - 500W 2U High Efficiency Switching Power SupplyBrackets Not Required
IS-2U50PD8Build-to-Order - 2U 500W 80 Plus High Efficiency Power SupplyBrackets Not Required
TC-2U60PD8EOL - 600W 2U High Efficiency Switching Power SupplyBrackets Not Required

Compatible Motherboards

Model #Motherboard SizeCompany Name

There are no compatibility motherboard for this model.
