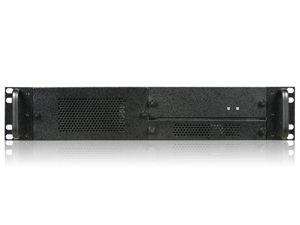

RG-2200T
2U Rugged Rackmount Chassis
  • 1.6mm SGCC with rugged construction
  • Anti-vibration HDD cage design for shock and high vibration environments
  • Cooling provided by 2x 90mm blower fans in front and back of chassis for high pressure air flow
  • Power and reset buttons mounted behind the removable bezel to prevent unintentional access
  • Removable front plate. Easy access to drive cage
  • Ease of maintenance with one front hotswap blower fan
  • Compatible with ATX and microATX motherboards
  • Power LED and HDD access indicator are visible through the bezel
  • Compatible with redundant power supply for zero down time





Product Introduction
The Rugged Series rackmount chassis are designed to withstand the toughest and compact environment and perform industrial applications that require spill proof with 21" in depth. The RG-2200T is designed with a spill proof bezel, 1.6mm heavy-duty SECC steel, and shock absorbing drive cage to have the maximum protection. This 2U rugged rackmount chassis is designed with 2 front access USB2.0 ports, 2x 3.5" internal bay, 2x 5.25" bays, and 5.25" slim bay. The IPC Rugged series is the most versatile and tough rackmount chassis for critical application.

SUPPORT

Providing technical support as of top priority.
Contact us today!
tech support contact info:
Tel: 1-626-303-8885

Product Support Request

Model NumberRG-2200T
RoHS Compliance VersionYes
Form factor2 U
Standard Drive Bays 3.5" Drive (internal): 2
5.25" Drives: 2
Slim 5.25" Optical: 1
IndicatorsPower, HDD
SwitchesPower, Reset
Expansion Slots3
Material of Main ChassisHeavy-duty SGCC 1.6mm
Color of Main ChassisBlack
Front Connector2x USB 2.0
Motherboard Size12 x 9.6 (ATX, microATX)
Cooling Fan2x90mm blower
Dimensions (WxHxD)19.00" x 3.50" x 20.50"
482.6 mm x 88.9 mm x 520.7 mm


Download
FAQ


There are no FAQ entries for this model.

Optional Accessories

Model #Description
TC-RAIL-2020" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2424" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2626" Sliding Rail Kit for Most Rackmount Chassis

Compatible Power Supplies

Model #DescriptionRequired
Bracket(s)
Redundant
IS-350R2UPBuild-to-Order - 350W 2U Redundant Power SupplyBrackets Not Required
IS-400R2UPBuild-to-Order - 400W 2U Redundant Power SupplyBrackets Not Required
IS-460R2UPEOL - 460W 2U Redundant Power SupplyBrackets Not Required

Compatible Motherboards

Model #Motherboard SizeCompany Name
P8B-C(4L)ATXASUS
P8B-E(4L)ATXASUS
P8B-XATXASUS
P6T WS ProfessionalATXASUS
P6X58-E WSATXASUS
P8B WSATXASUS
P8C WSATXASUS
P8P67 WS REVOLUTIONATXASUS
P8Z77 WSATXASUS
Z9PA-U8ATXASUS
P8B-MXMicro-ATXASUS
C216 WSATXASRock
E3C204ATXASRock
E3C204-4LATXASRock
E3C204-V+ATXASRock
E3C204-V4LATXASRock
H77WS-DLATXASRock
Z77 WSATXASRock
AD2550R/U3S3Mini ITXASRock
S5512ATXTYAN
S5510MicroATXTYAN
S5515MicroATXTYAN
GA-6UASV3microATXGIGABYTE
GA-6UASL3microATXGIGABYTE
GA-6PXSV4ATXGIGABYTE
GA-6PXSV1ATXGIGABYTE
GA-6PXSV2ATXGIGABYTE
GA-6PXSV3ATXGIGABYTE
