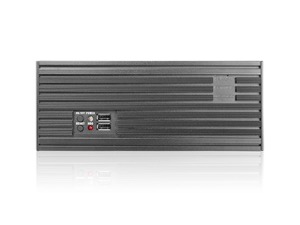

S-21
Compact Stylish Mini-ITX Enclosure
Compact Stylish Mini-ITX Enclosure
- Smooth Aluminum Front Panel with Contemporary Touch
- Next Generation Cooling Performance
- Outstanding Potential for Silent Operation
- Conveniently Located Front I/O Ports
- Strategically Placed Side Ventilation Aid in Cooling
- Accommodate either 2x 2.5" or 1x 3.5" HDD
Product Introduction
The new S-21 series offers both extreme performance & high capacity, The S-21series proves that it is possible to build an enclosure for entertainment or industrial field. The aluminum front panel is crafted to achieve a generous feeling of substance by minimizing gaps and holes. Everything is either covered or hidden to make sure the look is clean. The S-21 is compatible with the Next Generation Cooling Performance and full range of Mini-ITX motherboards (17cmx17cm).
The new S-21 series offers both extreme performance & high capacity, The S-21series proves that it is possible to build an enclosure for entertainment or industrial field. The aluminum front panel is crafted to achieve a generous feeling of substance by minimizing gaps and holes. Everything is either covered or hidden to make sure the look is clean. The S-21 is compatible with the Next Generation Cooling Performance and full range of Mini-ITX motherboards (17cmx17cm).
SUPPORT
Providing technical support as of top priority.
Contact us today!
tech support contact info:
Tel: 1-626-303-8885
Product Support Request
Contact us today!
tech support contact info:
Tel: 1-626-303-8885
Product Support Request
| Model Number | S-21 |
| RoHS Compliance Version | Yes |
| Form factor | Desktop U |
| Standard Drive Bays |
2.5" Drive (internal): 2 |
| Indicators | Power, HDD |
| Switches | Power, Reset |
| Expansion Slots | 1 (full height, riser card required) |
| Material of Front Bezel | Aluminum |
| Material of Main Chassis | Cold-rolled Steel |
| Color of Front Bezel | Black |
| Color of Main Chassis | Black |
| Front Connector | 2x USB 2.0 |
| Motherboard Size | 6.7 x 6.7 (mini-ITX) |
| Optional Fan: | 1x80mm |
| Dimensions (WxHxD) | 8.82" x 3.50" x 8.48" 224.0 mm x 88.9 mm x 215.4 mm |
| Notes | - for PCI riser, use DD-711R-C5-02. - for PCIe x16 riser, use DD-766R-C5-02. - 3.5" HDD can be mounted when an add-on card is in place. - optional 80mm case fan needs to be 15mm thick or less. |
FAQ
There are no FAQ entries for this model. |
Optional Accessories
| Model # | Description | |
 | DD-S21-VESA | VESA Mount Bracket for S-21 Chassis |
 | DD-S21-WM | Wall Mount Bracket for S-21 Chassis |
 | DD-711R-C5-02 | PCI to PCI Reversed Riser Card with 5cm Ribbon Cable |
 | DD-766R-C5-02 | PCIe x16 to PCIe x16 Reversed Riser Card with 5cm Ribbon Cable |
Compatible Power Supplies
| Model # | Description | Required Bracket(s) | |
| Single | |||
 | TC-1U15FX1 | Special Order - 1U 150W Flex Power Supply | Brackets Not Required |
 | TC-1U18FX1 | 1U 180W Flex Power Supply | Brackets Not Required |
 | TC-1U22FX8 | Special Order - 1U 220W Flex High Efficiency Power Supply | Brackets Not Required |
 | TC-1U30FX8 | 1U 300W Flex High Efficiency Power Supply | Brackets Not Required |
Compatible Motherboards
| Model # | Motherboard Size | Company Name |
There are no compatibility motherboard for this model. | ||
Featured Videos
 | Description: How to Install SSD's into iStarUSA S-21 Mini-ITX Products: S-21 |
