DAGE416UTL-4MS
4U 16-bay 3.5" SAS/SATA 6.0Gb/s miniSAS SFF8088 JBOD Trayless Rackmount Chassis
  • Supports 16x 3.5" SAS/SATA 6Gb/s Hard Drives
  • LED Indicators for Power and Activity on Each Hard Drive
  • 3x 120mm Cooling Fans for Ventilation
  • 4x miniSAS (SFF8088) Connectors for Fast Data Transfer Speed
  • Trayless Design
  • Hot-swappable Both on Host and Device
  • Supports up to 6.0Gb/s Data Transfer Speed Per Port/Channel; Total Bandwidth up to 24Gb/s per Connector





Product Introduction
DAGE416UTL-4MS is an external 4U-16 bay hot-swappable SAS/SATA rackmount disk array storage chassis. It provides users a most big storage capacity for up to 16 hard drives for RAID configurations. This 4U-16 bay external SAS/SATA JBOD is designed with 4 high quality miniSAS (SFF8088) connectors. Three 120mm ball bearing fans offer long lasting and enhanced thermal cooling solution. DAGE416UTL-4MS provides maximum storage and performance to high density storage system.

SUPPORT

Providing technical support as of top priority.
Contact us today!
tech support contact info:
Tel: 1-626-303-8885

Product Support Request

Model NumberDAGE416UTL-4MS
RoHS Compliance VersionYes
Form Factor4U
Host Interface4x miniSAS (SFF8088)
HDD Interface3.5" SAS I/II & SATA I/II/III
Hotswap 3.5"16
LED DisplayPower and HDD Activity
MaterialSteel
Main ColorBlack
Power Supply700W
Raid LevelConfigured by Host Controller
Cooling Fan3x120mm
Ordering Information
(Part Number)		with 700W Single PSU: DAGE416UTL-4MS
with 550W Redundant PSU: DAGE416UTL-4MS-R
Dimensions (WxHxD)19.00" x 7.00" x 22.90"
482.6 mm x 177.8 mm x 581.7 mm
Download
FAQ


There are no FAQ entries for this model.
Accessories

ImageAccessoryDescription
RP-RAIL-26SEOL - 26" Slim Sliding Rail Kit for M Series 2U 3U 4U Rackmount Chassis
K-HD4488-1MHD miniSAS SFF-8644 to miniSAS SFF-8088 1 meter Cable
K-SF88-1MminiSAS SFF-8088 1 meter Cable

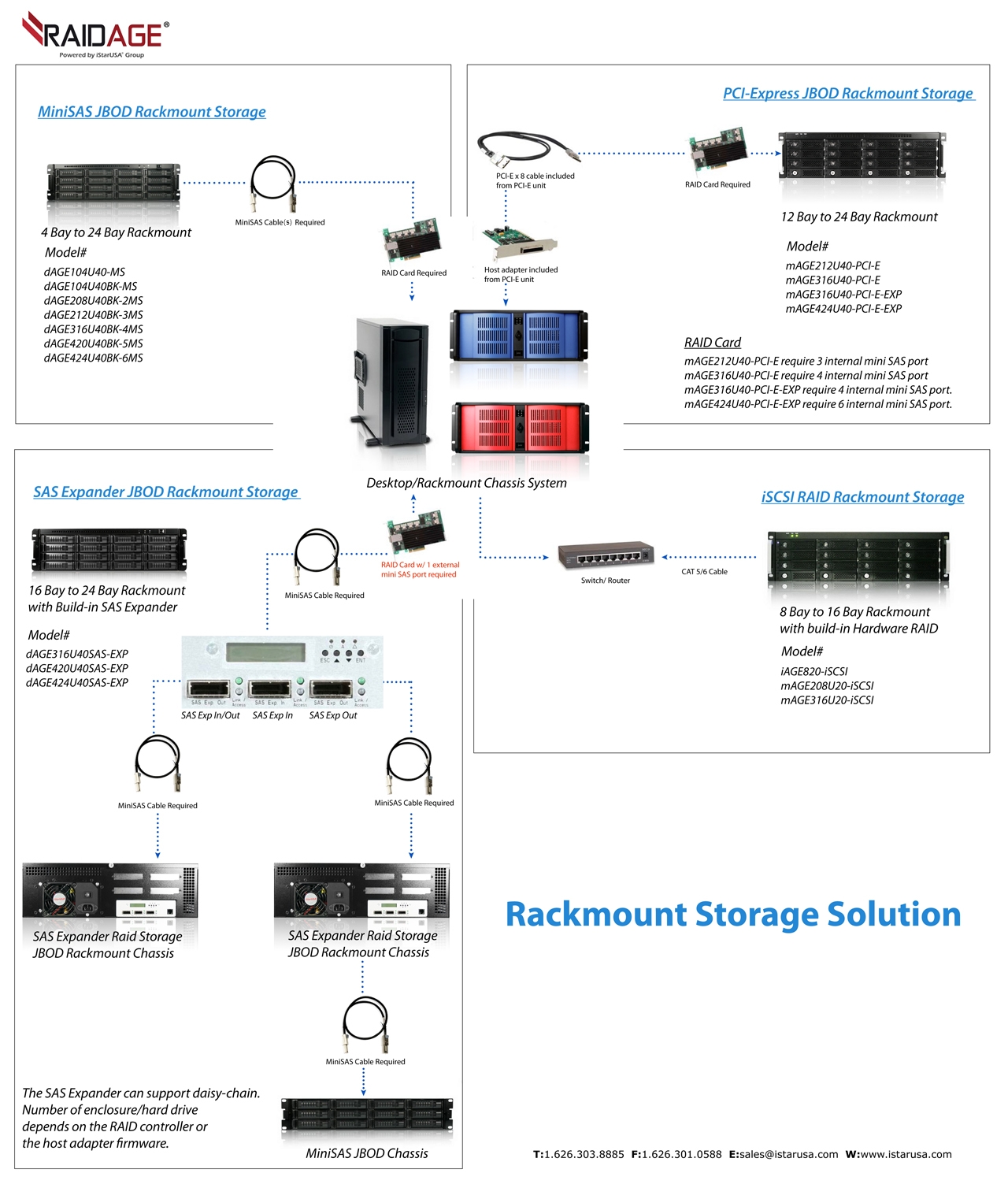

Connection Diagram
Featured Videos
