IX-600S2UPD8
EOL - 600W 2U High Efficiency Redundant Power Supply
EOL - 600W 2U High Efficiency Redundant Power Supply
- Universal Input, Active PFC
- MTBF > 100,000 Hours
- Power Failure Alarm & Signals
- High Efficiency 80% minimum
- PMBus Support
- OPP (Over Power Protection)
- OVP (Over Voltage Protection)
- OCP (Over Current Protection)
- SCP (Short Circuit Protection)
Product Introduction
XEAL dual AC input high efficiency 2U 600W redundant power supply IX-600S2UPD8. It offers your server and workstation zero down time with full 600W power redundancy. Active PFC, Automatic Fan Thermal Control, hot swappable power modules and load sharing function provide ultimate precision power and safety protection for all electronic equipment. This is a new generation power supply with PMBus Support to provide a reliable power supply for your mission critical system integration.
XEAL dual AC input high efficiency 2U 600W redundant power supply IX-600S2UPD8. It offers your server and workstation zero down time with full 600W power redundancy. Active PFC, Automatic Fan Thermal Control, hot swappable power modules and load sharing function provide ultimate precision power and safety protection for all electronic equipment. This is a new generation power supply with PMBus Support to provide a reliable power supply for your mission critical system integration.
SUPPORT
Providing technical support as of top priority.
Contact us today!
tech support contact info:
Tel: 1-626-303-8885
Product Support Request
Contact us today!
tech support contact info:
Tel: 1-626-303-8885
Product Support Request
| Model Number | IX-600S2UPD8 |
| RoHS Compliance Version | Yes |
| Output Wattage | 600 |
| Efficiency | 80% |
| Connector Type | Main Connector :: 24 pin 4+4pin 12V :: 1 8pin EPS 12V :: 1 Molex :: 8 SATA :: 4 Floppy :: 2 |
| Dimensions (WxHxD) | 4.00" x 3.28" x 11.02" 101.6 mm x 83.3 mm x 279.9 mm |
Parts & Accessories
| Image | Accessory | Description |

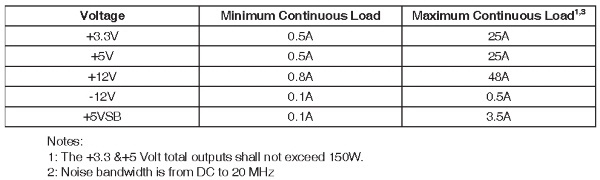

Output
FAQ
| Q | What is the dBA of the power supply? |
| A | 50.1 dBA (10% load) to 58.3 dBA (100% load). |
Featured Videos
There are currently no iStarVideos for this Item.
Compatible Chassis
| Model # | Description | |
 | E2M8 | 2U 8-Bay Storage Server Rackmount Chassis |
 | EX2M8 | Build-to-Order - 2U 8-Bay Storage Server Rackmount Chassis |
 | EX4M24 | EOL - 4U 24-Bay Storage Server Rackmount Chassis |
 | EX4M36-EXP | EOL - 4U 36-Bay Storage Server Rackmount Chassis with SAS Expander |
 | EX3M16 | Build-to-Order - 3U 16-Bay Storage Server Rackmount Chassis |
 | D-300 | 3U Compact Stylish Rackmount Chassis |
 | D-300-MUSIC | Build-to-Order - 3U Silent Rackmount Chassis |
 | D-300-TS669 | 3U Compact Stylish Rackmount Chassis with 7" Touch Screen LCD |
 | D-300A | Build-to-Order - 3U Compact Stylish Aluminum Rackmount Chassis |
 | D-300A-TS669 | Build-to-Order - 3U Compact Stylish Aluminum Rackmount Chassis with 7" Touch Screen LCD |
 | D-300L | 3U High Performance Rackmount Chassis |
 | D-300L-B6SA | 3U High Performance Rackmount Chassis |
 | D-300LSE | 3U High Performance Rackmount Chassis |
 | D-300L-TS669 | 3U High Performance Rackmount Chassis with 7" Touch Screen LCD |
 | D-300SE | 3U Compact Stylish Rackmount Chassis |
 | D-300SEA | 3U Compact Stylish Rackmount Chassis with SEA Bezel |
 | E-204L | 2U E-ATX 4 x 5.25" Bays Rackmount Chassis |
 | E-207L | 2U E-ATX 7 x 3.5" Bays Rackmount Chassis |
 | E-212L | 2U E-ATX 12 x 3.5" Bays Rackmount Chassis |
 | E2M10 | 2U 10-Bay Storage Server Rackmount Chassis |
 | E2M12 | Build-to-Order - 2U 12-Bay Storage Server Rackmount Chassis |
 | E2M4 | 2U 4-Bay E-ATX Storage Server Rackmount Chassis |
 | EX2M8-750PD8G | Build-to-Order - 2U 8-Bay Storage Server Rackmount Chassis with 750W Redundant Power Supply |
 | EX3M16-750PD8G | Build-to-Order - 3U 16-Bay Storage Server Rackmount Chassis with 750W Redundant Power Supply |
 | EX2M8-60S2UP8 | Build-to-Order - 2U 8-Bay Storage Server Rackmount Chassis with 600W Redundant Power Supply |
 | EX2M8-80S2UP8 | Build-to-Order - 2U 8-Bay Storage Server Rackmount Chassis with 800W Redundant Power Supply |
 | EX3M16-60S2UP8 | Build-to-Order - 3U 16-Bay Storage Server Rackmount Chassis with 600W Redundant Power Supply |
 | EX3M16-80S2UP8 | Build-to-Order - 3U 16-Bay Storage Server Rackmount Chassis with 800W Redundant Power Supply |
 | D-200 | 2U Compact Stylish Rackmount Chassis |
 | D-200-T | 2U Compact Stylish Rackmount Chassis |
 | D-200L | 2U High Performance Rackmount Chassis |
 | D-200L-T | 2U High Performance Rackmount Chassis |
 | D-200SE | 2U Compact Stylish Rackmount Chassis |
 | D-200LSE | 2U High Performance Rackmount Chassis |
 | D-200SEA | 2U Compact Stylish Rackmount Chassis with SEA Bezel |
 | D-300-95R3K8 | 3U Compact Stylish Rackmount Chassis with 950W Redundant Power Supply |
 | E-204L-80S2UP8 | 2U E-ATX 4 x 5.25" Bays Rackmount Chassis with 800W Redundant Power Supply |
 | E-204L-75S2UP8G | 2U E-ATX 4 x 5.25" Bays Rackmount Chassis with 750W Redundant Power Supply |
 | E2M8HD | 2U 8-Bay Storage Server Rackmount Chassis 12Gb/s HDD SSD SFF-8643 Backplane |
 | E2M12HD | 2U 12-Bay Storage Server Rackmount Chassis 12Gb/s HDD SSD SFF-8643 Backplane |
