IS-2U35PD8
2U 350W 80 Plus High Efficiency Power Supply
  • 80 Plus High Efficiency and Reliability
  • 16ms Hold Up Time
  • Over Current Protection
  • Over Voltage Protection
  • Short Circuit Protection
  • Low Noise and Thermal-controlled Fan





Product Introduction
XEAL 2U power supply series provide high performance in compact form factor. The IS-2U35PD8 supports server, compact PC, and space constrained application. Standard feature includes 80+ efficiency, triple circuits protection, and active PFC for industrial and high performance system requirement.

SUPPORT

Providing technical support as of top priority.
Contact us today!
tech support contact info:
Tel: 1-626-303-8885

Product Support Request

Model NumberIS-2U35PD8
RoHS Compliance VersionYes
Output Wattage350
Efficiency80%
Connector TypeMain Connector :: 24 pin
4pin 12V :: 1
8pin EPS 12V :: 1
Molex :: 4
SATA :: 2
Floppy :: 1
Dimensions (WxHxD)3.94" x 2.76" x 7.87"
100.1 mm x 70.1 mm x 199.9 mm
Download
Parts & Accessories

ImageAccessoryDescription

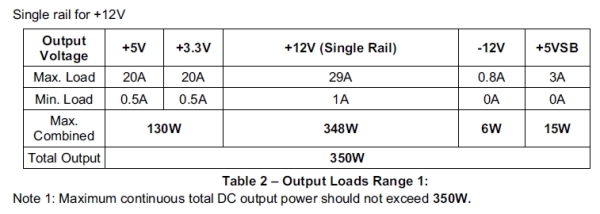

Output

FAQ

QWhat is the dBA of the power supply?
A40.3 dBA Max.

Featured Videos

There are currently no iStarVideos for this Item.
