EOL - 1U 4-bay 3.5" SATA 6.0Gb/s eSATA USB3.0 Trayless JBOD Rackmount Chassis

Supports 4x 3.5" SATA 6Gb/s Hard Drives
LED Indicators for Power and Activity on Each Hard Drive
2x 40mm Cooling Fans for Ventilation

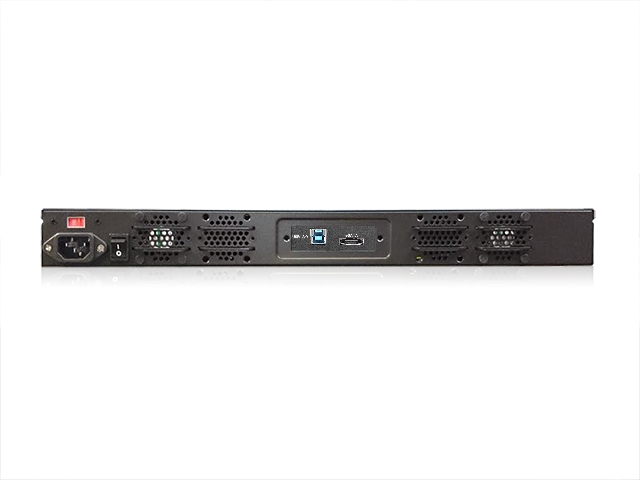

Multi-interface Support - with USB 3.0 and eSATA (Port Multiplier) Connectors
Trayless Design
Hot-swappable Both on Host and Device
eSATA Chipset: JMicron JMB575
Supports SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transfer rate
Supports individual drive mode via *eSATA or USB connection

Product Introduction

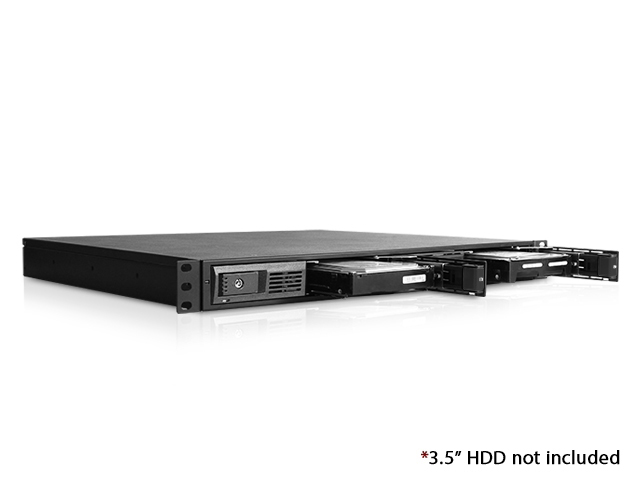

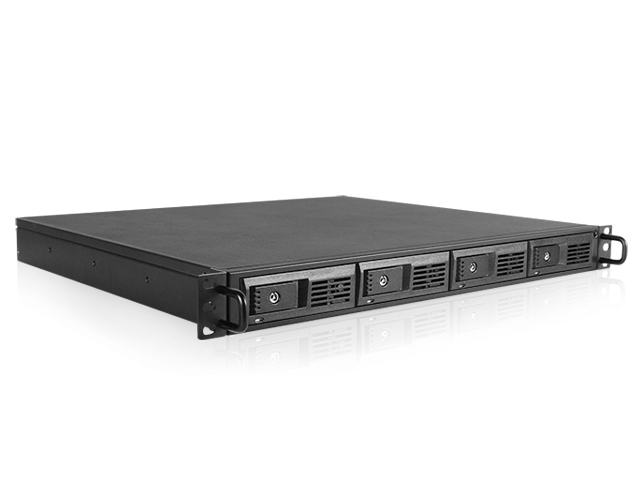

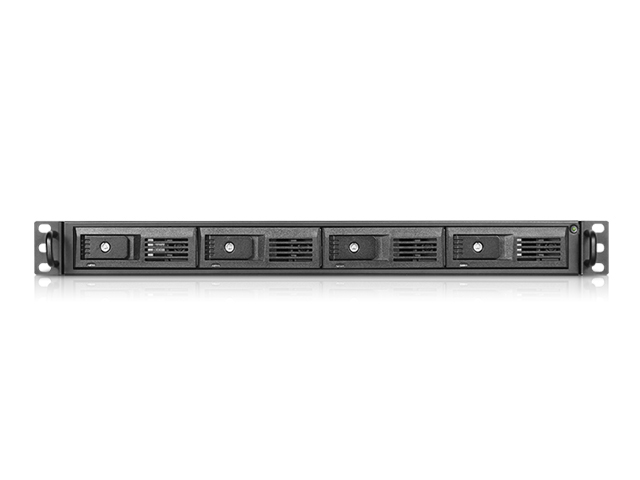

DAGE104UTL-SAU3 is an external 1U 4-bay trayless hot-swappable SATA rackmount disk array storage chassis. It provides users a most big storage capacity for four 3.5" hard drives for RAID configurations in 1U form factor. This 1U 4-bay external SATA JBOD is designed with a high quality of USB 3.0 and eSATA with Port Multiplier connectors. Two 40mm ball bearing fans offer long lasting and enhanced thermal cooling solution. DAGE104UTL-SAU3 provides maximum storage and performance to high density storage system.

Specifications	Download	Optional Accessories
Output	FAQ
Compatible Chassis

Model Number	DAGE104UTL-SAU3
RoHS Compliance	Yes
Dimensions (WxHxD)	19.00" x 1.75" x 15.00" 482.6 mm x 44.5 mm x 381.0 mm
Notes	- *individual drive configuration is supported via eSATA controllers with Port Multiplier function. Controllers without Port Multiplier function will only recognize one single hard drive via eSATA connection.

Download

There are no downloadable media for this product.

Parts & Accessories

Image	Accessory	Description
	RP-RAIL-20-1U	20" Sliding Rail Kit for 1U Short Rackmount Chassis
