EOL - 8-bay 2.5" SATA 6.0 Gb/s eSATA USB3.0 Hotswap JBOD Tower

Supports 8x 2.5" SATA 6Gb/s HDDs/SSDs (up to 9.5mm thick)
HDD Tray with Thumb Screw Design for Easy Swap

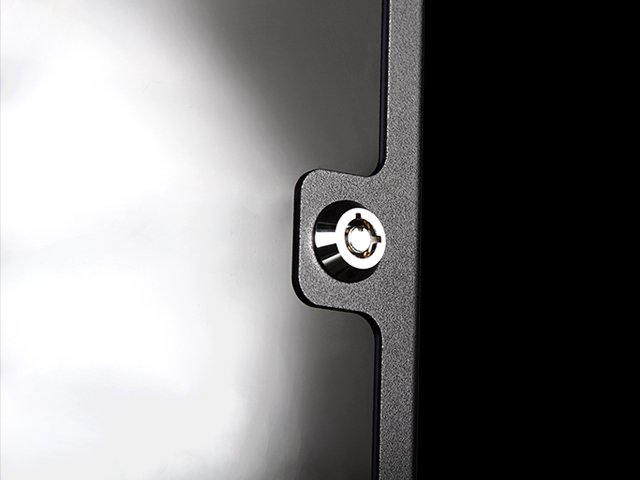

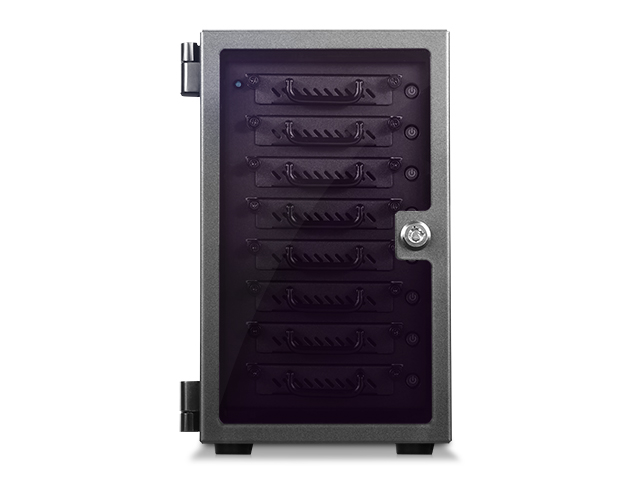

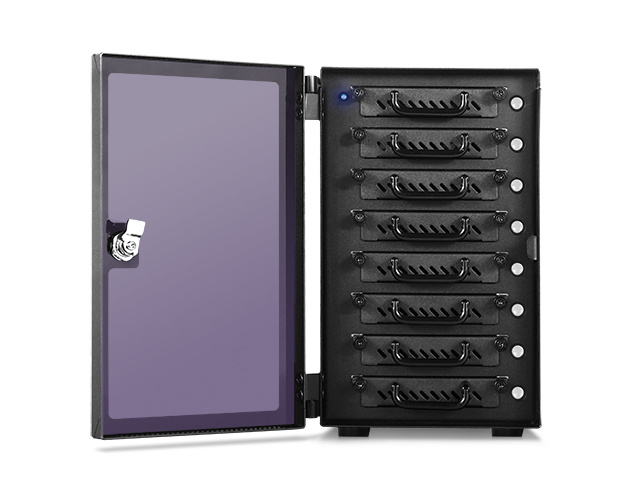

Semi-transparent Door with Key Lock Design

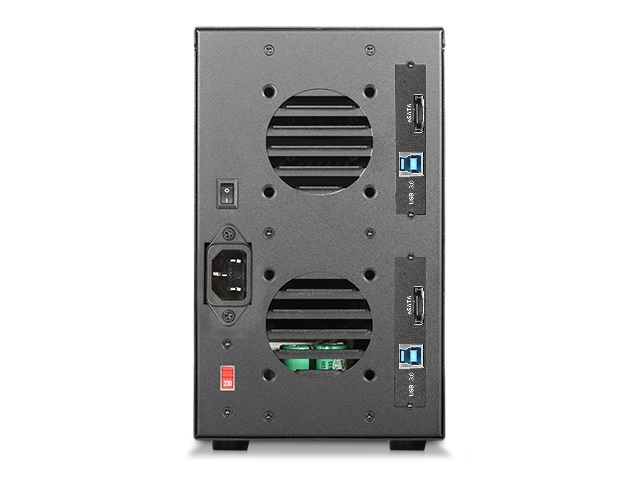

Multi-interface Support - with 2x USB 3.0 and 2x eSATA (Port Multiplier) Connectors
eSATA Chipset: JMicron JMB575
Supports SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transfer rate
Supports individual drive mode via *eSATA or USB connection

Product Introduction

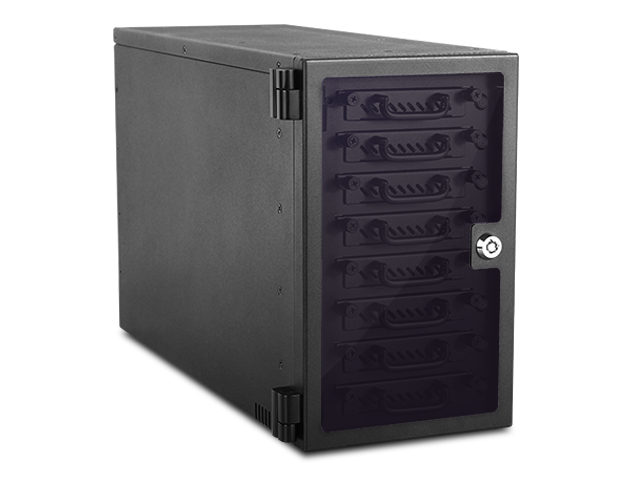

EAGE8402TG-SAU3 external multi-bay JBOD tower is designed especially for storage applications. It is able to hold eight 2.5" HDDs/SSDs for storing mass data via 6.0 Gb/s eSATA connectors or USB 3.0 interfaces, offering a fast data transfer rate. Two 60mm cooling fans enhance the ventilation inside. The external JBOD storage case has solid construction and a semi-transparent door with key lock, and is a cost-effective and flexible solution for your critical data storage.

Specifications	Download	Optional Accessories
Output	FAQ
Compatible Chassis

Model Number	EAGE8402TG-SAU3
RoHS Compliance	Yes
Dimensions (WxHxD)	5.31" x 8.39" x 10.76" 134.9 mm x 213.1 mm x 273.3 mm
Notes	- each USB or eSATA connector controls 5x HDDs. - individual drive configuration is supported via eSATA controllers with Port Multiplier function. Controllers without Port Multiplier function will only recognize one single hard drive via one single eSATA connection.

Download

User's Manual

Parts & Accessories


Accessory

Description

Output

There are no Power Output Specifications for this product.

FAQ

There are no FAQ entries for this model.
