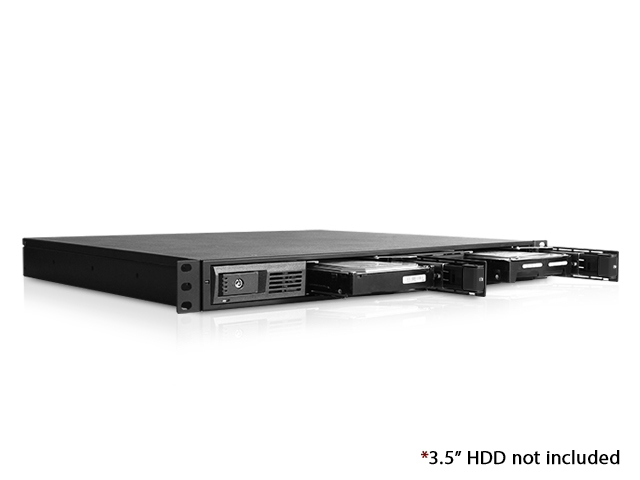

COMING SOON - 1U 4-Bay Trayless JBOD Storage Rackmount Chassis 12Gb/s HDD SFF-8643 Backplane

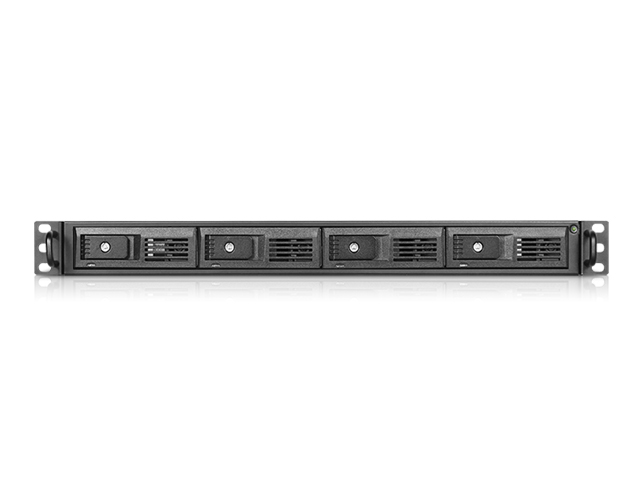

4 trayless hot-swappable bays for 3.5" HDDs
Worlds first trayless storage rackmount
HD miniSAS (SFF-8643) HDD Backplane
Metal key lock for HDD front bezel
Fully RoHS compliant
Built-in 150W open-frame PSU
Centronics cut-out to support various interface bridgeboards
Supports 3.5" SAS I/II/III and SATA I/II/III HDD
High Performance Transfer Rate up to 12Gb/s

Product Introduction

The M-140HD-JB M series of trayless storage JBOD rackmounts not only have a compact size, but the trayless and hot-swappable 3.5" bays make this chassis a new breed of storage chassis. The chassis also has a built-in 150W open-frame power supply and one HD miniSAS (SFF-8643) backplane to support SAS and SATA hard drives. The M series chassis are available in 1U, 2U, 3U, and 4U form factors.

Specifications	Download	Optional Accessories
Output	FAQ
Compatible Chassis

Model Number	M-140HD-JB
RoHS Compliance	Yes
Dimensions (WxHxD)	19.00" x 1.75" x 14.96" 482.6 mm x 44.5 mm x 380.0 mm
Notes	- power cord is not included.

Download

Data Sheet

Parts & Accessories

Image	Accessory	Description
	RP-RAIL-20-1U	20" Sliding Rail Kit for 1U Short Rackmount Chassis

Output

There are no Power Output Specifications for this product.

FAQ

There are no FAQ entries for this model.
