Product Detail

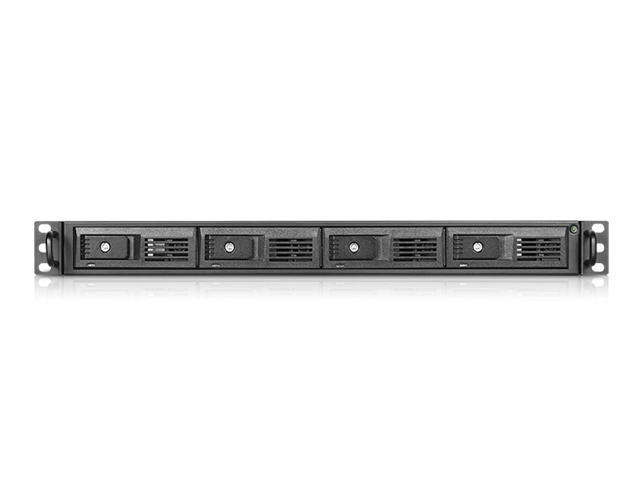

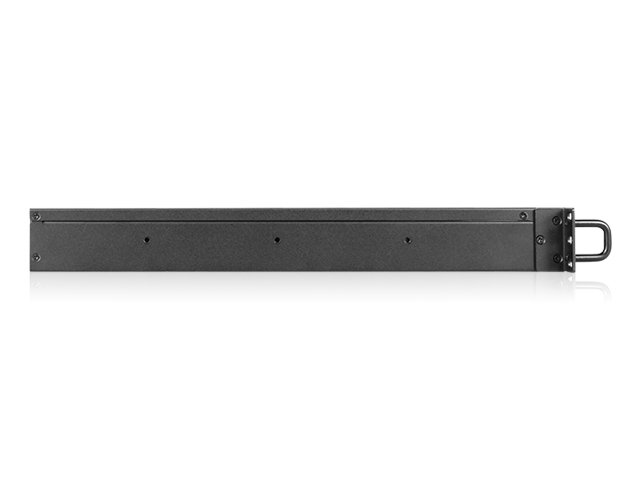

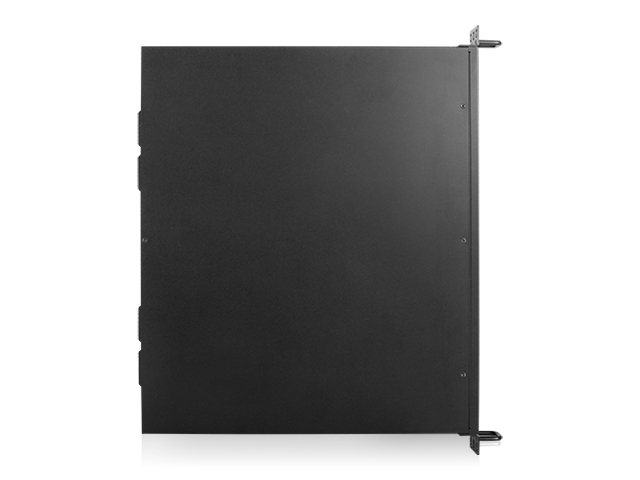

1U 3.5" 4-Bay Trayless JBOD Storage Rackmount Chassis

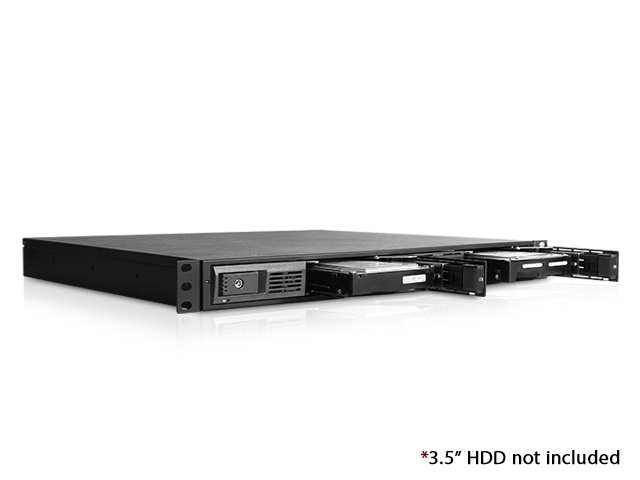

4 trayless hot-swappable bays for 3.5" HDDs
Worlds first trayless storage rackmount

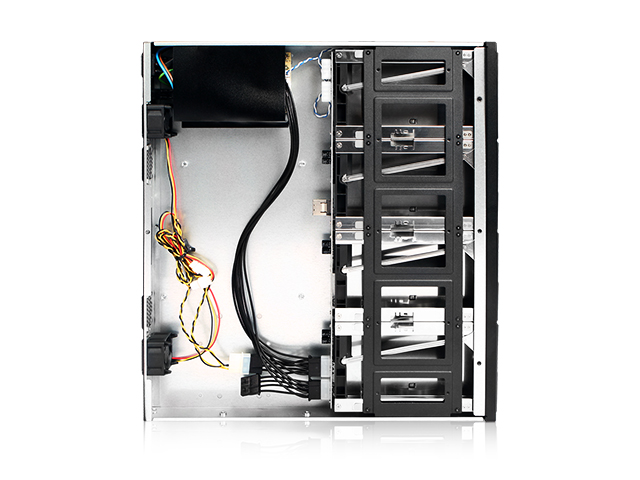

miniSAS (SFF-8087) backplane
Metal key lock for HDD front bezel
Fully RoHS compliant

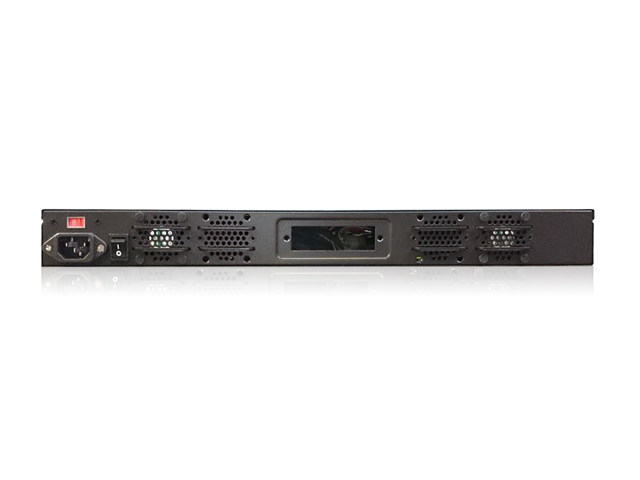

Built-in 150W open-frame PSU
Centronics cut-out to support various interface bridgeboards

Product Introduction

The M-140SS-JB M series of trayless storage JBOD rackmounts not only have a compact size, but the trayless and hot-swappable 3.5" bays make this chassis a new breed of storage chassis. The chassis also has a built-in 150W open-frame power supply and one miniSAS connector on the backplane to support SAS and SATA hard drives. The M series chassis are available in 1U, 2U, 3U, and 4U form factors.

Specifications	Download	Optional Accessories
Output	FAQ
Compatible Chassis

Model Number	M-140SS-JB
RoHS Compliance	Yes
Dimensions (WxHxD)	19.00" x 1.75" x 14.96" 482.6 mm x 44.5 mm x 380.0 mm
Notes	- power cord is not included. - HDD backplane is compatible with SAS drives w/o SAS features supported.

Download

Data Sheet

Parts & Accessories

Image	Accessory	Description
	RP-RAIL-20-1U	20" Sliding Rail Kit for 1U Short Rackmount Chassis

Output

There are no Power Output Specifications for this product.

FAQ

There are no FAQ entries for this model.
