Product Detail

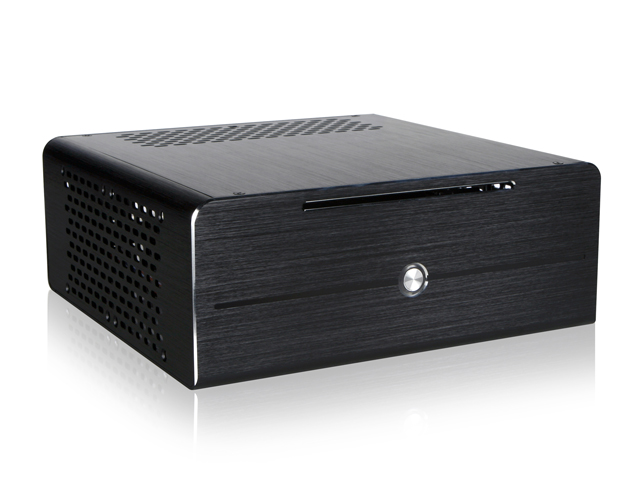

Build-to-Order - Compact Stylish Mini-ITX Enclosure with 120W PSU

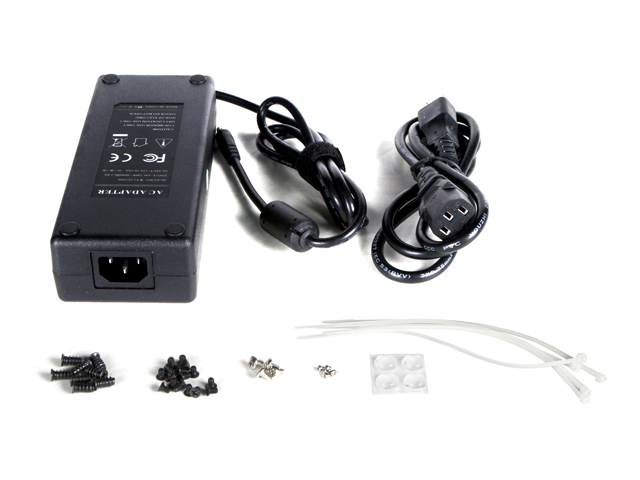

Comes with 120W (12V/10A) power adapter
Aluminum Thickness 2.0mm

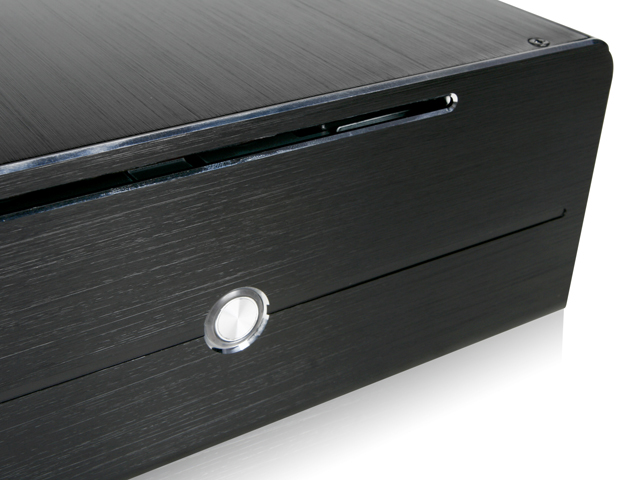

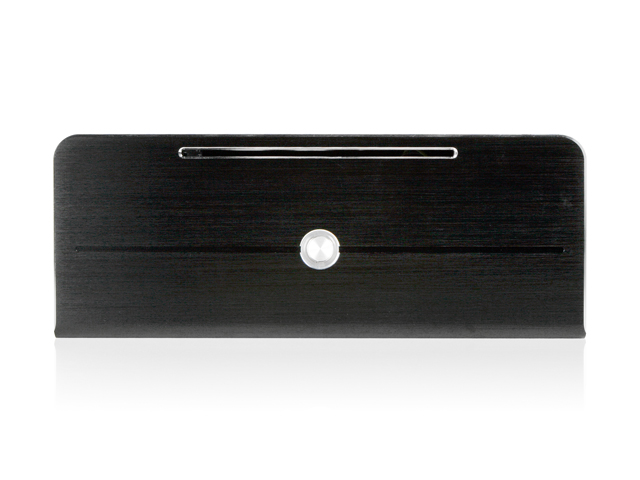

Sleek front panel with power button

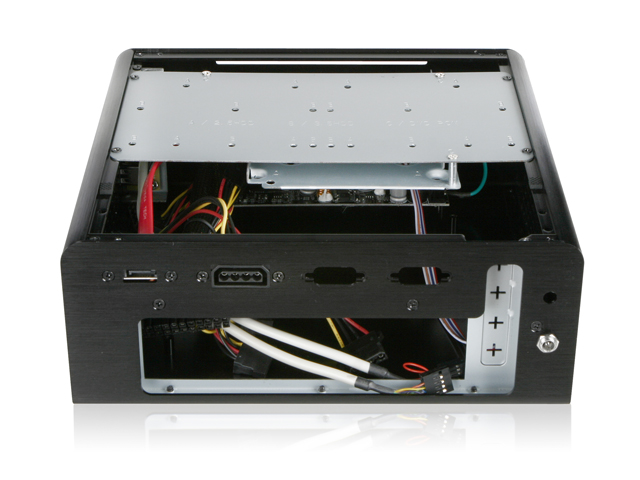

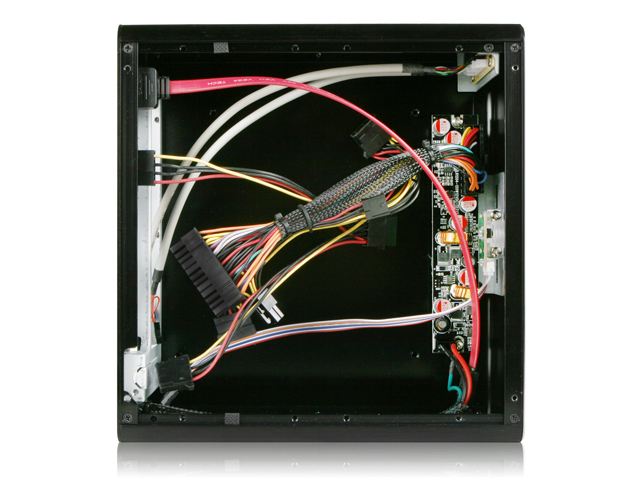

Power Connectors: 20+4 pin, Floppy x1, SATA,x1, Molex x2 (1*internal & 1*external), 4pin 12V x1

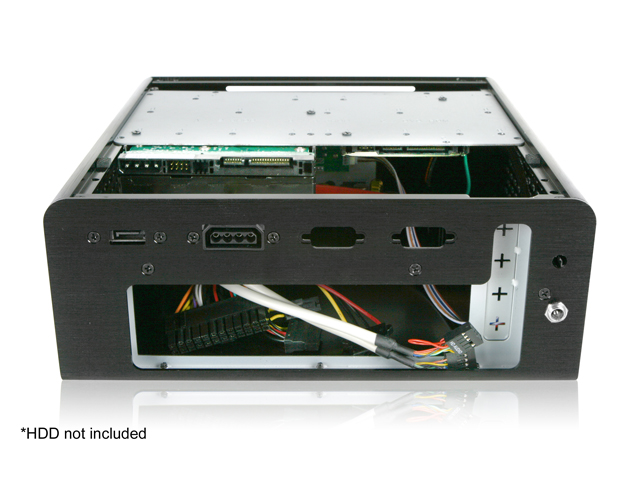

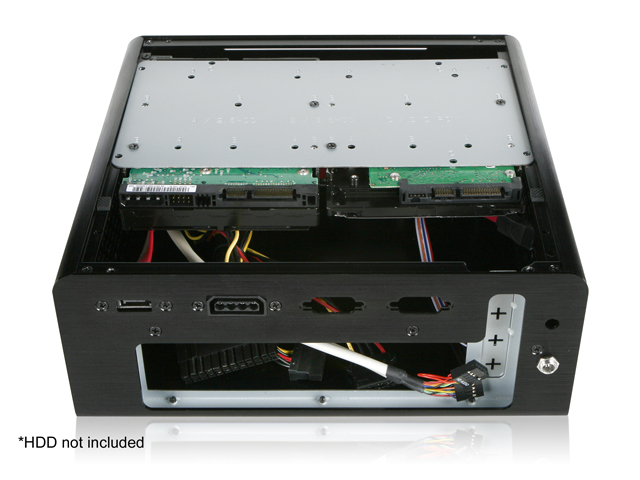

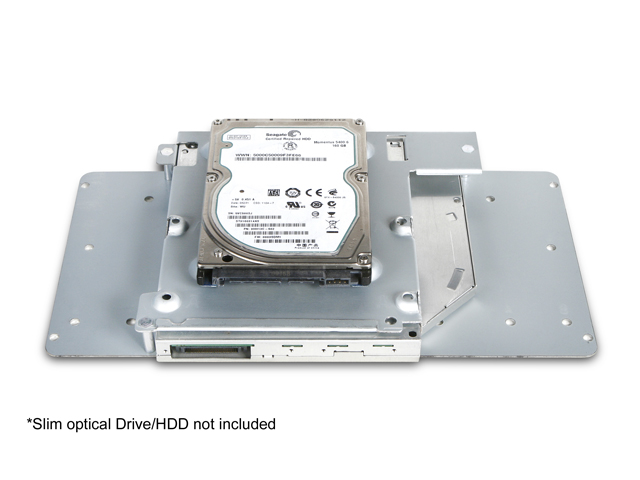

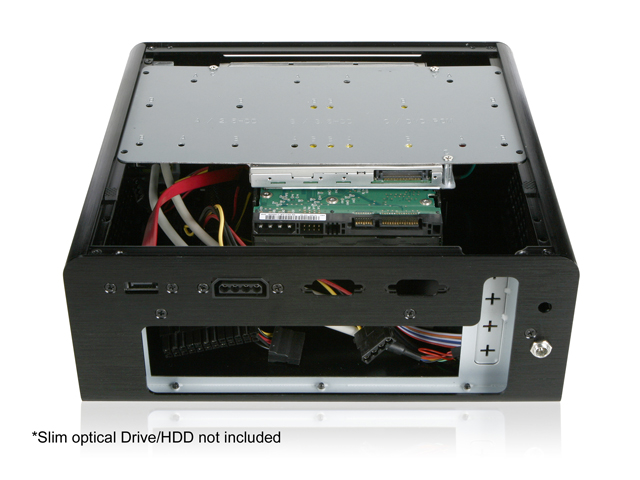

Supports 2x 3.5" or 2x 2.5" HDDs

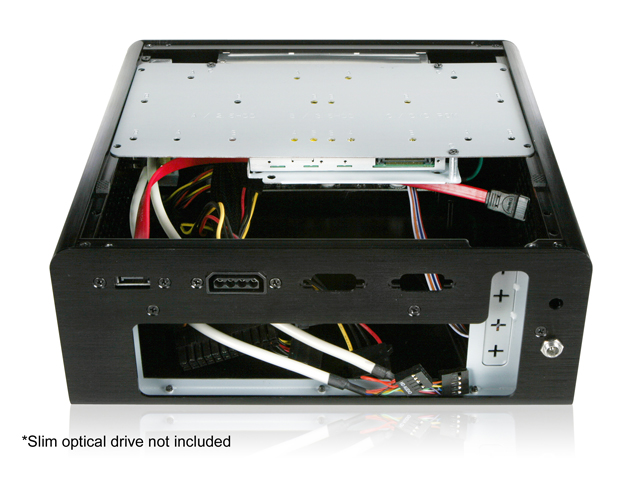

Compatible with slot load slim optical drive
WiFi antenna port ready

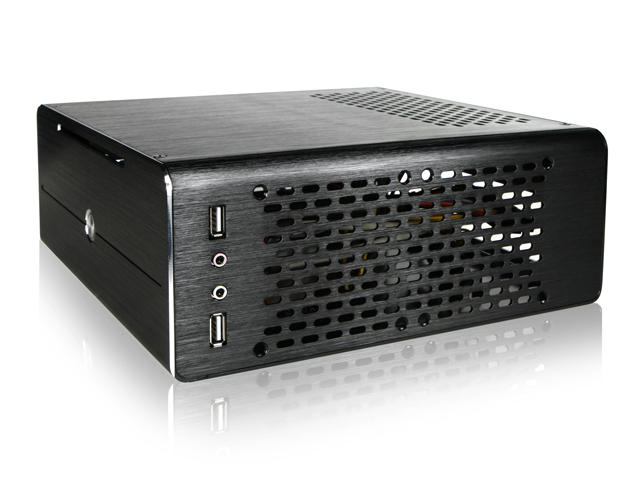

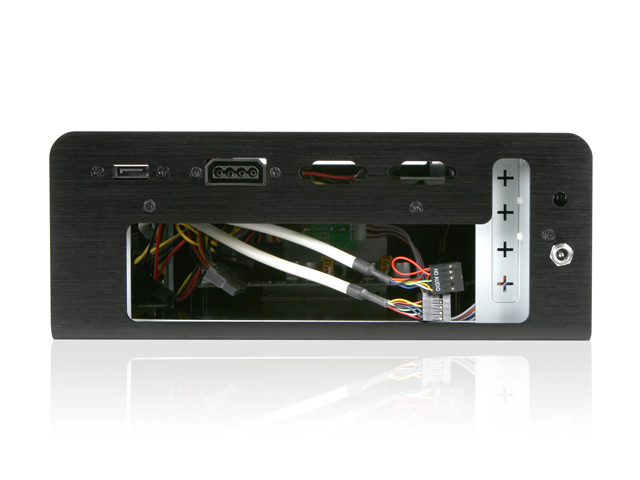

2x USB 2.0 and Audio port on side

Product Introduction

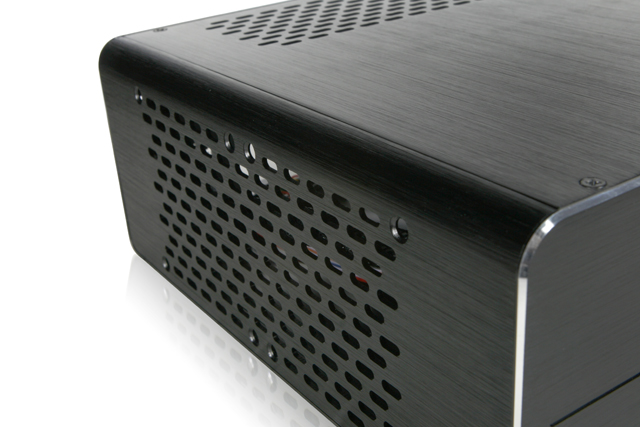

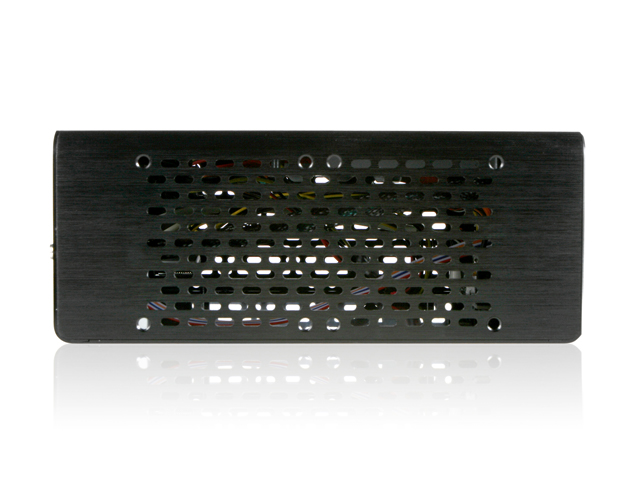

The S-0712-DT is designed to house high performing systems at a much reduced size. This model is featured with a built-in 120W power board and 120W (12V/10A power adapter). Porous cover and a slim optical drive bay makes this case a workstations new friend.

Specifications	Download	Optional Accessories
Output	FAQ
Compatible Chassis

Model Number	S-0712T-DT
RoHS Compliance	Yes
Dimensions (WxHxD)	9.30" x 3.70" x 9.60" 236.2 mm x 94.0 mm x 243.8 mm

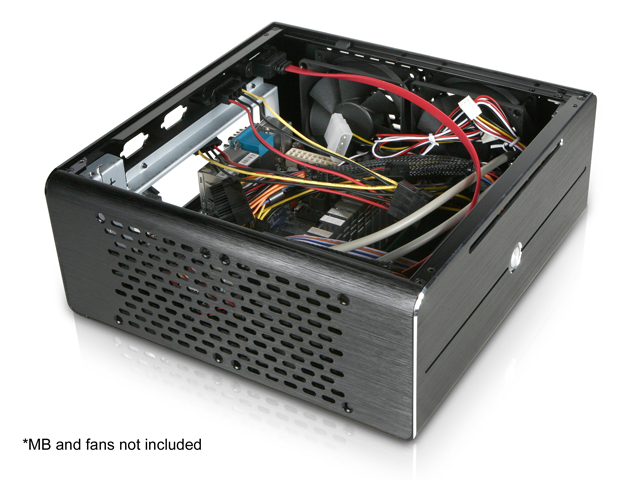

Notes	- M/B height under 54mm with add-on card installed, 13.5" or 2.5" HDD can be installed. - M/B height under 54mm without add-on card and DVD drive installed, 23.5" or 2.5" HDDs can be installed.

Download

There are no downloadable media for this product.

Parts & Accessories

Image	Accessory	Description

Output

There are no Power Output Specifications for this product.

FAQ

There are no FAQ entries for this model.
