Build-to-Order - Compact Stylish Mini-ITX Enclosure

Wallmount kit included

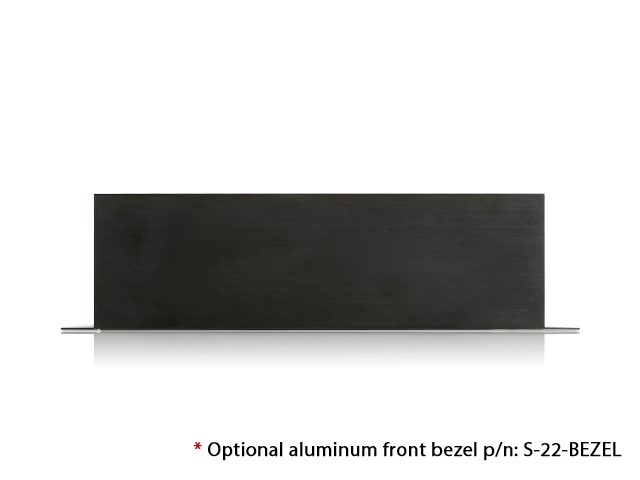

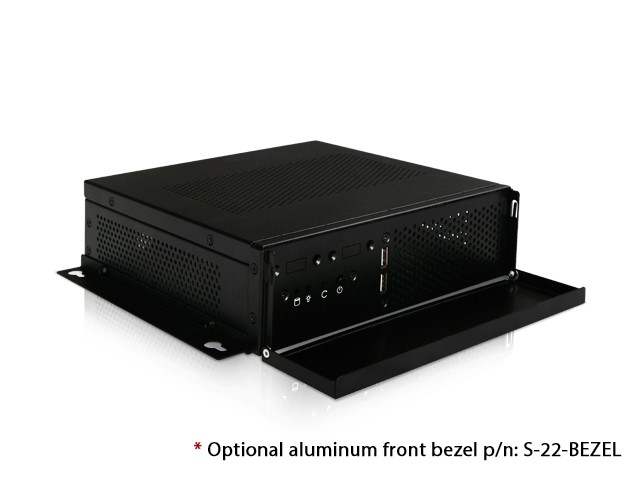

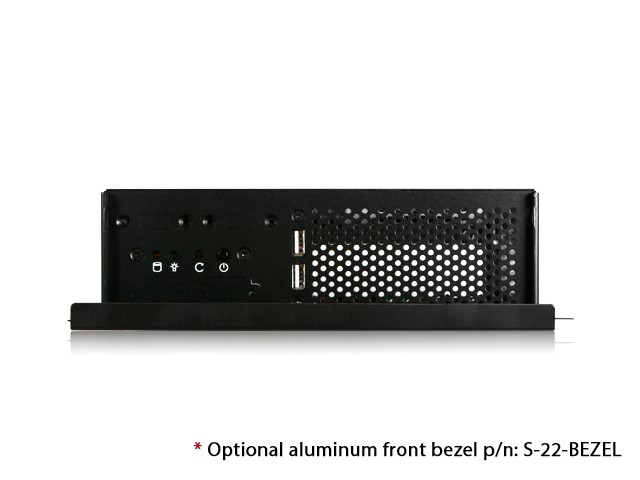

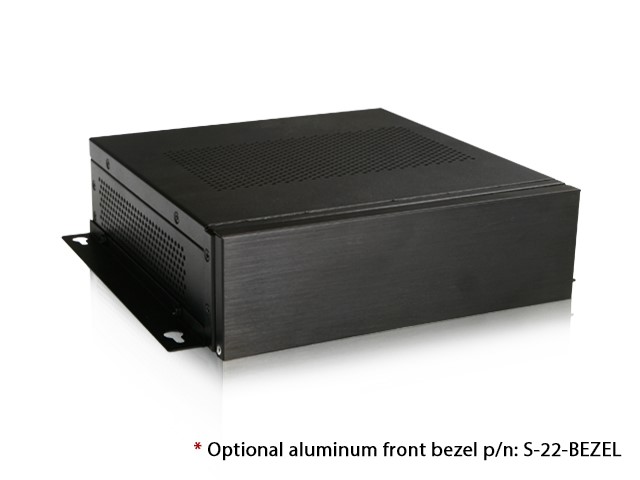

Optional aluminum front bezel for logo silkscreen (p/n: S-22-BEZEL, AL5052 0.8mm)
Pre-cut two COM port mounting holes in the front
Pre-cut two antenna mounting holes in the rear
Pre-cut one DC jack mounting hole in the rear

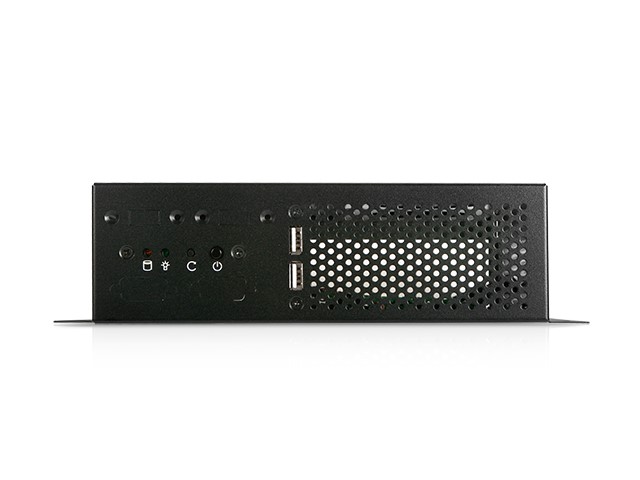

Pre-cut two USB 3.0 panel mount connectors in the front
VESA mount ready

Product Introduction

The new S-22 mini ITX case proves that it is possible to build an enclosure for entertainment or industrial field. Porous body with an optional 60mm case fan allow maximum heat ventilation. S-22 is designed to house a high performance system at a much reduced size.

Specifications	Download	Optional Accessories
Output	FAQ
Compatible Chassis

Model Number	S-22
RoHS Compliance	Yes
Dimensions (WxHxD)	8.22" x 2.50" x 8.28" 208.8 mm x 63.5 mm x 210.3 mm
Notes	- optional 60mm case fan up to 25 mm thick.

Download

Data Sheet

Product Drawing

Parts & Accessories

Image	Accessory	Description
	DD-FAN60-Q	60mm Liquid State Bearing Fan

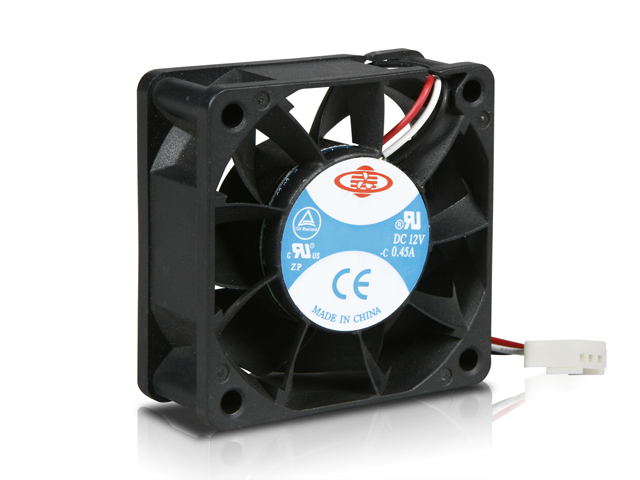

	DD-FAN60-126025BM	60mm 2-Balls Bearing Fan

Output

There are no Power Output Specifications for this product.

FAQ

There are no FAQ entries for this model.
