TC-2U70PD8UC
700W 2U High Efficiency Switching Power Supply
- High Efficiency 82% minimum
- Universal Power Input
- Over Current Protection
- Over Voltage Protectio
- Over Power Protection
- Short Circuit Protection
Product Introduction
XEAL 2U power supply series provide high performance in compact form factor. The TC-2U70PD8UC supports server, compact PC, and space constrained application. Standard feature includes high efficiency, triple circuits protection, and EPS 2U for industrial and high performance system requirement.
| Model Number | TC-2U70PD8UC |
| RoHS Compliance | Yes |
| Output Wattage | 700 |
| Efficiency | 82% |
| Noise Level | |
| Connector Type | Main Connector :: 20+4 pin 4+4pin 12V :: 1 8pin EPS 12V :: 1 6+2 Pin PCIE :: 2 Molex :: 4 SATA :: 7 Floppy :: 1 |
| Dimensions (WxHxD) | 3.94" x 2.76" x 9.46" 100.1 mm x 70.1 mm x 240.3 mm |
Parts & Accessories
| Image | Accessory | Description |

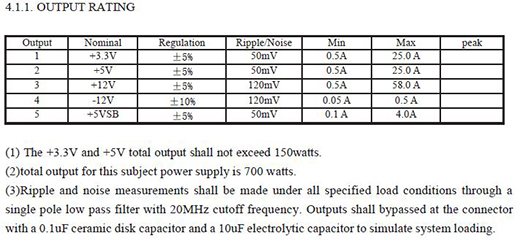

Output
