TC-500PD8B
500W PS2 ATX High Efficiency Switching Power Supply
- Complies with ATX/EPS 12V Standards
- Dual 12V Rails
- High Reliability: MTBF>100,000 hours
- Protection: Over Current, Over Voltage, and Short-Circuit
- Active PFC Circuit
- Full Range Input
- 80mm Dual Ball Bearing Fan
- High Efficiency 82% minimum
- ROHS Compliance
Product Introduction
The TC-500PD8B high performance switching power supply supports latest motherboard connectors of 20, 24, 8, and 4 pins. High efficiency saves you on electric bills and less cooling requirement. Dual 12V rails increase overall system stability. TC-500PD8B is the ideal power supply for server and high-end gaming workstation.
| Model Number | TC-500PD8B |
| RoHS Compliance | Yes |
| Output Wattage | 500 |
| Efficiency | 80% |
| Connector Type | Main Connector :: 20+4 pin 4+4pin 12V :: 1 8pin EPS 12V :: 1 6+2 Pin PCIE :: 1 Molex :: 5 SATA :: 4 Floppy :: 1 6pin PCIE :: 1 |
| Dimensions (WxHxD) | 5.91" x 3.39" x 5.51" 150.1 mm x 86.1 mm x 140.0 mm |
Download
| There are no downloadable media for this product. |
Parts & Accessories
| Image | Accessory | Description |

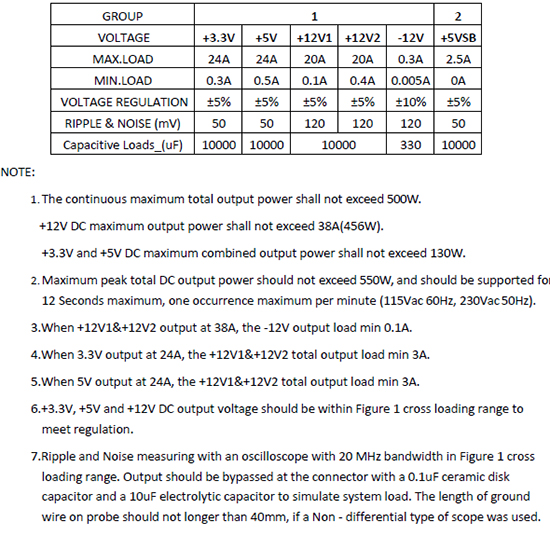

Output
FAQ
There are no FAQ entries for this model. |
Featured Videos
Compatible Chassis
| Model # | Description | |
|
D-265-MATX | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-265-DE9-MATX | 500W PS2 ATX High Efficiency Switching Power Supply |
|
M-280-MATX | 500W PS2 ATX High Efficiency Switching Power Supply |
|
M-280-JB | 500W PS2 ATX High Efficiency Switching Power Supply |
|
M-3120-JB | 500W PS2 ATX High Efficiency Switching Power Supply |
|
M-4160-JB | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-200-FS | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-200-PFS | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-200-PFS-WB | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-300-FS | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-300-PFS | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-300-PFS-WB | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-213-MATX | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-213-MATX-WB | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-213-MATX-WB-DT | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-213-MATX-DT | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-214-MATX | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-213ASE-MATX | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-200L-FS | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-200L-PFS | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-300L-FS | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-300L-PFS | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-260HN-DT | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-260HN | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-260HB | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-260HB-DT | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-230HB-T | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-230HN-T | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-230HN-DT | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-230HB-DT | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-340HB-T | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-350HB-T | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-340HN-T | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-350HN-T | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-380HN | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-380HB | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-3100HN | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-3100HB | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-313SE-MATX | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-213-MATX-B126SA | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-213-MATX-M1 | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-213-MATX-B124 | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-313ASE-MATX | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-313SE-MATX-2M1 | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-313SE-MATX-M1 | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-313SE-MATX-B124 | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-313SE-MATX-2B126SA | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-313SE-MATX-B126SA | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-313SE-MATX-2B124 | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-314-MATX | 500W PS2 ATX High Efficiency Switching Power Supply |
|
M-3120-ATX | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-313SE-MATX-2BX5 | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-213-MATX-BX5 | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-214-MATX-2BX5 | 500W PS2 ATX High Efficiency Switching Power Supply |
|
DN-200 | 500W PS2 ATX High Efficiency Switching Power Supply |
|
DN-300 | 500W PS2 ATX High Efficiency Switching Power Supply |
|
DN-400 | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-202A-6 | 500W PS2 ATX High Efficiency Switching Power Supply |
|
DW-102 | 500W PS2 ATX High Efficiency Switching Power Supply |
|
|
D-313ASE-ND-MATX | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-214E-MATX | 500W PS2 ATX High Efficiency Switching Power Supply |
|
M-280HD-MATX | 500W PS2 ATX High Efficiency Switching Power Supply |
|
M-280HD-JB | 500W PS2 ATX High Efficiency Switching Power Supply |
|
M-3120HD-JB | 500W PS2 ATX High Efficiency Switching Power Supply |
|
M-4160HD-JB | 500W PS2 ATX High Efficiency Switching Power Supply |
|
M-3120HD-ATX | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-314E-MATX | 500W PS2 ATX High Efficiency Switching Power Supply |
|
U-424HD | 500W PS2 ATX High Efficiency Switching Power Supply |
|
D-400 | 500W PS2 ATX High Efficiency Switching Power Supply |
