Build-to-Order - 750W PS2 ATX High Efficiency Switching Power Supply

Complies with ATX/EPS 12V Standards
High Reliability: MTBF>100,000 hours
Protection: Over Current, Over Voltage, and Short-Circuit
Active PFC Circuit
Full Range Input
120mm Low Noise Ball Bearing Fan
High Efficiency 80% minimum

Product Introduction

The TC-750PD8 high performance switching power supply supports latest motherboard connectors of 24, 8, and 4 pins. Large 120mm ball bearing cooling fan reduces operation noise while keep the optimal airflow. High efficiency saves you on electric bills and less cooling requirement. TC-750PD8 is the ideal power supply for server and high-end gaming workstation.

Specifications	Download	Optional Accessories

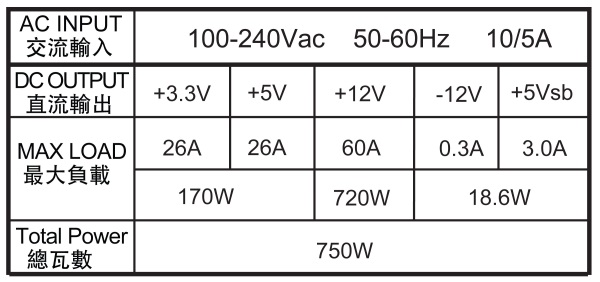

Output	FAQ
Compatible Chassis

Model Number	TC-750PD8
RoHS Compliance	Yes
Output Wattage	750
Efficiency	80%
Connector Type	Main Connector :: 24 pin 4+4pin 12V :: 1 6+2 Pin PCIE :: 4 Molex :: 3 SATA :: 9 Floppy :: 1
Dimensions (WxHxD)	5.91" x 3.39" x 5.51" 150.1 mm x 86.1 mm x 140.0 mm

Download

Data Sheet

Spec Sheet

Product Drawing

Parts & Accessories


Accessory

Description

Output

FAQ

Q :	What is the dBA of the power supply?
A :	20% loading less than 18dBA, 50% loading less than 19dBA, and 100% loading less than 25dBA.
