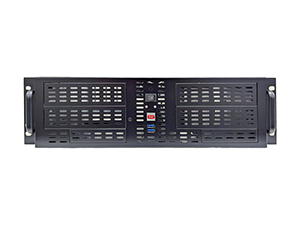

D-300-EC
3U Compact Stylish Rackmount Chassis
  • Front Access USB3.0 x2
  • 60mm x2 Cooling Fan
  • Power and HDD LED
  • Full ODM/OEM Capable
Product Introduction
The 3U economy industrial rackmount chassis D Storm D-300-EC. Optional BPU series enable hot-swappable storage and RAID configuration. D-300-EC backplane supports 7 full-length add-on cards. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution provide your system with maximum flexibility and performance.

Model NumberD-300-EC
RoHS ComplianceYes
Form factor3 U
Standard Drive Bays 3.5" Drives: 2
3.5" Drive (internal): 1
5.25" Drives: 4
IndicatorsPower, HDD
SwitchesPower, Reset
Supported PSU Type1U, 2U
Expansion Slots7
Material of HandleSECC Zinc-Coated Steel
Material of Main Chassis1.2mm SECC Zinc-Coated Steel
Color of Front BezelBlack
Color of Main ChassisBlack
Front Connector2x USB 3.0
Motherboard Size12 x 9.6 (ATX, microATX)
Cooling Fan2x60mm
Optional Fan:80mm x3 (bracket DD-FANGUARD-8 required)
Dimensions (WxHxD)19.00" x 5.25" x 20.80"
482.6 mm x 133.3 mm x 528.3 mm
Notes- supports power supply length up to 250mm when hotswap cages installed in the front.
