D-300A-TS669

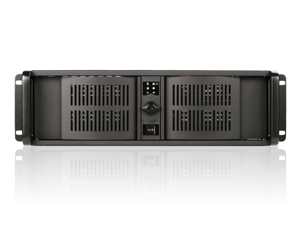

Build-to-Order - 3U Compact Stylish Aluminum Rackmount Chassis with 7" Touch Screen LCD
  • Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
  • Front Access USB2.0 x2
  • 60mm x1 Cooling Fan
  • Removable Air Filter
  • Power and HDD LED
  • Power and Alarm Reset Switch
  • Standard I/O Shield
  • Standard Aluminum Chassis
  • Optional BPU-230 2 to 3 Hot-Swappable HDD Cage
  • Built-in 7" Touch Screen LCD
  • Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
  • Front Access USB2.0 x2
  • Removable Air Filter
  • Power and HDD LED
  • Power and Alarm Reset Switch
  • Built-in 7" Touch Screen LCD
Product Introduction
Introducing the new D-300A-TS669 from our well-praised D-Storm rackmount chassis. Built-in 7" touch screen LCD enables instant system control and configuration. The 3U aluminum rackmount chassis D Storm D-300A-TS669. Aluminum body reduces chassis weight and offer better cooling solution. Optional 3.5" and 5.25" bays enable hot-swappable storage and RAID configuration.

Model NumberD-300A-TS669
RoHS ComplianceYes
Form factor3 U
Standard Drive Bays 3.5" Drives: 1
3.5" Drive (internal): 1
5.25" Drives: 2
IndicatorsPower, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )
SwitchesPower, Reset
Supported PSU Type1U, 2U
Expansion Slots7
SecurityFront Bezel Key Lock
Material of Front BezelAluminum alloy
Material of HandleSECC Zinc-Coated Steel
Material of Main ChassisAluminum
Color of Front BezelBlack
Color of Main ChassisBlack
Front Connector2x USB 2.0
Air FilterRemovable & Washable
Motherboard Size12 x 9.6 (ATX, microATX)
Cooling Fan1x60mm
Optional Fan:60mm x1, 80mm x3 (bracket DD-FANGUARD-8 required)
Ordering Information
(Part Number)		Black Bezel:D-300A-BK-TS669
Blue Bezel:D-300A-BL-TS669
Red Bezel:D-300A-RD-TS669
Silver Bezel:D-300A-SL-TS669
Dimensions (WxHxD)19.00" x 5.25" x 20.80"
482.6 mm x 133.3 mm x 528.3 mm
Notes- supports power supply length up to 250mm when hotswap cages installed in the front.


Download
FAQ


There are no FAQ entries for this model.

Optional Accessories

Model #Description
BPU-124V2-SSBuild-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
BPU-126-SASpecial Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
BPU-230SATA2x 5.25" to 3x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
BPU-2535-SIBuild-to-Order - 3.5" to 2.5" SATA 6 Gbps HDD Hot-swap Rack
DD-FAN8080mm Ball Bearing Fan
DIY-RHF03Build-to-Order - 3.5" to 5.25" Anti-Vibration Hard Drive Mounting Bracket
RP-4HDD25F
RP-COMBO-SLIM5.25" Optical Drive and Floppy Drive Cage Holder
RP-COMBO-SLIM25352.5"/ 3.5" HDD & Slim Optical Drive to 5.25" Drive Bay Cage
RP-FDD355.25" Drive Bay Bracket for 3.5" Devices
RP-HDD2.52.5" to 3.5" Hard Drive Mounting Bracket
RP-HDD25BC2.5" HDD SSD Mounting Bracket for 3.5" Bay
RP-HDD25P3.5" Drive Bay Bracket for 2x 2.5" SSDs
RP-HDD3.53.5" to 5.25" Hard Drive Mounting Bracket
RP-HUB-SAUF3.5" Combo Hub for USB2.0/ Firewire/ e-SATA
RP-READER35Build-to-Order - All-in-one USB 2.0 Card Reader
T-25HD-SIBuild-to-Order - 2.5" SATA HDD SSD Slot Carrier
T5F-SSEOL - Trayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack
T5-SABuild-to-Order - Trayless 5.25" to 3.5" SATA HDD Anti-vibration Hotswap Rack
T-7M1-SATA5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
T-7-SARugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
TC-ISF088 Ports Fan Sensor Board
TC-ISTORM72x5.25" to 3x3.5" Internal Mounting Cooling Kit with Removable Filter
TC-ISTORM83.5" to 5.25" Hard Drive Cooling Heat Sink
TC-RAIL-2020" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2424" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2626" Sliding Rail Kit for Most Rackmount Chassis
RP-4HDD255FEOL 4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket
RP-2HDD25355.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives
DD-300-DBLUED-300 BLUE DOOR
DD-300-DREDD-300 RED DOOR
DD-300-DSILVERD-300 SILVER DOOR
DD-300-SE-BLACK3U Black Bezel for SE series
DD-300-SE-BLUE3U Blue Bezel for SE series
DD-300-SE-RED3U Red Bezel for SE series
DD-300-SE-SILVER3U Silver Bezel for SE series
BPU-124V2-SSBuild-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
BPU-126-SASpecial Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
BPU-230SATA2x 5.25" to 3x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
BPU-2535-SIBuild-to-Order - 3.5" to 2.5" SATA 6 Gbps HDD Hot-swap Rack
DD-FAN8080mm Ball Bearing Fan
DIY-RHF03Build-to-Order - 3.5" to 5.25" Anti-Vibration Hard Drive Mounting Bracket
RP-COMBO-SLIM5.25" Optical Drive and Floppy Drive Cage Holder
RP-COMBO-SLIM25352.5"/ 3.5" HDD & Slim Optical Drive to 5.25" Drive Bay Cage
RP-FDD355.25" Drive Bay Bracket for 3.5" Devices
RP-HDD2.52.5" to 3.5" Hard Drive Mounting Bracket
RP-HDD2535F
RP-HDD25BC2.5" HDD SSD Mounting Bracket for 3.5" Bay
RP-HDD25P3.5" Drive Bay Bracket for 2x 2.5" SSDs
RP-HDD3.53.5" to 5.25" Hard Drive Mounting Bracket
RP-HUB-SAUF3.5" Combo Hub for USB2.0/ Firewire/ e-SATA
RP-READER35Build-to-Order - All-in-one USB 2.0 Card Reader
T-25HD-SIBuild-to-Order - 2.5" SATA HDD SSD Slot Carrier
T5F-SSEOL - Trayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack
T5-SABuild-to-Order - Trayless 5.25" to 3.5" SATA HDD Anti-vibration Hotswap Rack
T-7M1-SATA5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
T-7-SARugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
TC-ISF088 Ports Fan Sensor Board
TC-ISTORM72x5.25" to 3x3.5" Internal Mounting Cooling Kit with Removable Filter
TC-ISTORM83.5" to 5.25" Hard Drive Cooling Heat Sink
TC-RAIL-2020" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2424" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2626" Sliding Rail Kit for Most Rackmount Chassis
BPN-DE230SSTrayless 2x5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack
RP-4HDD255FEOL 4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket
RP-2HDD25355.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives
DD-300-DBLUED-300 BLUE DOOR
DD-300-DREDD-300 RED DOOR
DD-300-DSILVERD-300 SILVER DOOR
DD-300-SE-BLACK3U Black Bezel for SE series
DD-300-SE-BLUE3U Blue Bezel for SE series
DD-300-SE-RED3U Red Bezel for SE series
DD-300-SE-SILVER3U Silver Bezel for SE series
BPN-DE110SSTrayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
BPN-DE110SSTrayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
BPU-124DE-SS5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
BPU-124DE-SS5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
T-G525-SSIndustrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
T-G525-SSIndustrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
BPN-2535DE-SA3.5" to 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
BPN-2535DE-SA3.5" to 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-G35-SSIndustrial 3.5" to 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
T-G35-SSIndustrial 3.5" to 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
BPN-DE110SS-WBTrayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
BPN-DE110SS-WBTrayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
BPN-DE230SS-WBTrayless 2x 5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
BPN-124K-SATrayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-5K3525U-SATrayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
T-5K3525U-SATrayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
T-5K225T-SATrayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-5K225T-SATrayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-5K35T-SATrayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack
T-5K35T-SATrayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack
T-5K25TU-SATrayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
T-5K25TU-SATrayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
T-35K25-SABuild-to-Order - Trayless 3.5" to 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-35K25-SABuild-to-Order - Trayless 3.5" to 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack

Compatible Power Supplies

Model #DescriptionRequired Bracket(s)
Redundant
IS-350R2UPBuild-to-Order - 350W 2U Redundant Power SupplyBRT-0203-R2 (1)
DD-STANDOFF-12MM (2)
IS-400R2UPBuild-to-Order - 400W 2U Redundant Power SupplyBRT-0203-R2 (1)
DD-STANDOFF-12MM (2)
IS-500S2UPBuild-to-Order - 500W 2U Redundant Power SupplyBRT-0203-S2 (1)
DD-STANDOFF-12MM (2)
IX-550R2UPD8550W 2U High Efficiency Redundant Power SupplyBRT-0203-R2 (1)
BRT-0203-4R (1)
IS-700S2UPBuild-to-Order - 700W 2U Redundant Power SupplyBRT-0203-S2 (1)
DD-STANDOFF-12MM (2)
IS-700R3KPEOL - 700W 3U Redundant Power SupplyBrackets Not Required
IS-1000R3KPEOL - 1000W 3U Redundant Power SupplyBrackets Not Required
Single
IS-2U40PD8Build-to-Order - 2U 400W 80 Plus High Efficiency Power SupplyBRT-0003-RR-S6 (1)
BRT-0003-FR (1)
IS-2U46PD82U 460W 80 Plus High Efficiency Power SupplyBRT-0003-RR-S6 (1)
BRT-0003-FR (1)
TC-2U50PD8EOL - 500W 2U High Efficiency Switching Power SupplyBRT-0303-1 (1)
BRT-0003-RR (1)
IS-2U50PD8Build-to-Order - 2U 500W 80 Plus High Efficiency Power SupplyBRT-0003-RR-S6 (1)
BRT-0003-FR (1)
TC-2U60PD8EOL - 600W 2U High Efficiency Switching Power SupplyBRT-0303-1 (1)
BRT-0003-RR (1)

Compatible Motherboards

Model #Motherboard SizeCompany Name
P8B-C(4L)ATXASUS
P8B-E(4L)ATXASUS
P8B-XATXASUS
P6T WS ProfessionalATXASUS
P6X58-E WSATXASUS
P8B WSATXASUS
P8C WSATXASUS
P8P67 WS REVOLUTIONATXASUS
P8Z77 WSATXASUS
Z9PA-U8ATXASUS
P8B-MXMicro-ATXASUS
C216 WSATXASRock
E3C204ATXASRock
E3C204-4LATXASRock
E3C204-V+ATXASRock
E3C204-V4LATXASRock
H77WS-DLATXASRock
Z77 WSATXASRock
AD2550R/U3S3Mini ITXASRock
S5512ATXTYAN
S5510MicroATXTYAN
S5515MicroATXTYAN
GA-6UASV3microATXGIGABYTE
GA-6UASL3microATXGIGABYTE
GA-6PXSV4ATXGIGABYTE
GA-6PXSV1ATXGIGABYTE
GA-6PXSV2ATXGIGABYTE
GA-6PXSV3ATXGIGABYTE
