D-300L

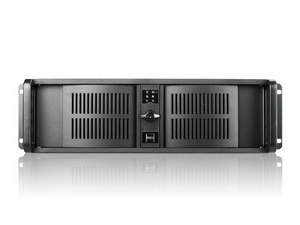

3U High Performance Rackmount Chassis
3U High Performance Rackmount Chassis
- Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
- Front Access USB2.0 x2
- 60mm x1, 80mm x3 Cooling Fan
- Removable Air Filter
- Power and HDD LED
- Power and Alarm Reset Switch
Product Introduction
Introduce iStarUSA 3U industrial rackmount chassis D Storm D-300L. The full size back plane and width supports dual Intel and AMD CPU motherboard. It has excellent thermal solution with extra cooling fans. Optional 3.5 and 5.25 tray enable hot-swappable storage, RAID configuration, and total storage capacity up to 6 storage drives provide your server or cluster maximum flexibility and performance.
Introduce iStarUSA 3U industrial rackmount chassis D Storm D-300L. The full size back plane and width supports dual Intel and AMD CPU motherboard. It has excellent thermal solution with extra cooling fans. Optional 3.5 and 5.25 tray enable hot-swappable storage, RAID configuration, and total storage capacity up to 6 storage drives provide your server or cluster maximum flexibility and performance.
| Specifications | Download | FAQ |
| Optional Accessories | Compatible Power Supplies | Compatible Motherboards |
| Chassis Combo |  |
| Model Number | D-300L |
| RoHS Compliance | Yes |
| Form factor | 3 U |
| Standard Drive Bays |
3.5" Drives: 2 3.5" Drive (internal): 1 5.25" Drives: 4 |
| Indicators | Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) |
| Switches | Power, Reset |
| Supported PSU Type | 1U, 2U |
| Expansion Slots | 7 |
| Security | Front Bezel Key Lock |
| Material of Front Bezel | Aluminum alloy |
| Material of Handle | SECC Zinc-Coated Steel |
| Material of Main Chassis | 1.2mm SECC Zinc-Coated Steel (Japan Made) |
| Color of Front Bezel | Black |
| Color of Main Chassis | Black |
| Front Connector | 2x USB 2.0 |
| Air Filter | Removable & Washable |
| Motherboard Size | 12 x 13 (EATX, ATX, microATX) |
| Cooling Fan | 1x60mm, 3x80mm |
| Optional Fan: | 60mm x1 |
| Ordering Information (Part Number) | Black Bezel:D-300L Blue Bezel:D-300L-BLUE Red Bezel:D-300L-RED Silver Bezel:D-300L-SILVER |
| Dimensions (WxHxD) | 19.00" x 5.25" x 27.90" 482.6 mm x 133.3 mm x 708.7 mm |
FAQ
| Q : | How to install TC-500S2U into D-300L chassis? |
| A : | Please refer to the PDF file.
 |
| Q : | Does D-300L support Hot-swappable fan? |
| A : | Yes, please refer to the PDF file. |
Optional Accessories
| Model # | Description | |
 | BPU-124V2-SS | Build-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack |
 | BPU-126-SA | Special Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack |
 | BPU-230SATA | 2x 5.25" to 3x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack |
 | BPU-2535-SI | Build-to-Order - 3.5" to 2.5" SATA 6 Gbps HDD Hot-swap Rack |
 | DD-FAN60-Q | 60mm Liquid State Bearing Fan |
 | DIY-RHF03 | Build-to-Order - 3.5" to 5.25" Anti-Vibration Hard Drive Mounting Bracket |
 | RP-COMBO-SLIM | 5.25" Optical Drive and Floppy Drive Cage Holder |
 | RP-COMBO-SLIM2535 | 2.5"/ 3.5" HDD & Slim Optical Drive to 5.25" Drive Bay Cage |
 | RP-FDD35 | 5.25" Drive Bay Bracket for 3.5" Devices |
 | RP-HDD2.5 | 2.5" to 3.5" Hard Drive Mounting Bracket |
 | RP-HDD25BC | 2.5" HDD SSD Mounting Bracket for 3.5" Bay |
 | RP-HDD25P | 3.5" Drive Bay Bracket for 2x 2.5" SSDs |
 | RP-HDD3.5 | 3.5" to 5.25" Hard Drive Mounting Bracket |
 | RP-HUB-SAUF | 3.5" Combo Hub for USB2.0/ Firewire/ e-SATA |
 | RP-READER35 | Build-to-Order - All-in-one USB 2.0 Card Reader |
 | T-25HD-SI | Build-to-Order - 2.5" SATA HDD SSD Slot Carrier |
 | T5F-SS | EOL - Trayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack |
 | T5-SA | Build-to-Order - Trayless 5.25" to 3.5" SATA HDD Anti-vibration Hotswap Rack |
 | T-7M1-SATA | 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack |
 | T-7-SA | Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack |
 | TC-ISF08 | 8 Ports Fan Sensor Board |
 | TC-ISTORM7 | 2x5.25" to 3x3.5" Internal Mounting Cooling Kit with Removable Filter |
 | TC-ISTORM8 | 3.5" to 5.25" Hard Drive Cooling Heat Sink |
 | TC-RAIL-26 | 26" Sliding Rail Kit for Most Rackmount Chassis |
 | BPN-DE230SS | Trayless 2x5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack |
 | RP-2HDD2535 | 5.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives |
 | RP-4HDD255F | EOL 4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket |
 | DD-300-DBLUE | D-300 BLUE DOOR |
 | DD-300-DRED | D-300 RED DOOR |
 | DD-300-DSILVER | D-300 SILVER DOOR |
 | DD-300-SE-BLACK | 3U Black Bezel for SE series |
 | DD-300-SE-BLUE | 3U Blue Bezel for SE series |
 | DD-300-SE-RED | 3U Red Bezel for SE series |
 | DD-300-SE-SILVER | 3U Silver Bezel for SE series |
 | BPN-DE110SS | Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack |
 | BPU-124DE-SS | 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack |
 | T-G525-SS | Industrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack |
 | BPN-2535DE-SA | 3.5" to 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack |
 | T-G35-SS | Industrial 3.5" to 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack |
 | BPN-DE110SS-WB | Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel |
 | BPN-DE230SS-WB | Trayless 2x 5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack with Wood Look Bezel |
 | BPN-124K-SA | Trayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack |
 | T-5K3525U-SA | Trayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0 |
 | T-5K225T-SA | Trayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack |
 | T-5K35T-SA | Trayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack |
 | T-5K25TU-SA | Trayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0 |
 | T-35K25-SA | Build-to-Order - Trayless 3.5" to 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack |
Compatible Power Supplies
| Model # | Description | Required Bracket(s) | |
| Redundant | |||
 | IS-350R2UP | Build-to-Order - 350W 2U Redundant Power Supply | BRT-0203-R2 (1) DD-STANDOFF-12MM (2) |
 | IS-400R2UP | Build-to-Order - 400W 2U Redundant Power Supply | BRT-0203-R2 (1) DD-STANDOFF-12MM (2) |
 | IS-500S2UP | Build-to-Order - 500W 2U Redundant Power Supply | BRT-0203-S2 (1) DD-STANDOFF-12MM (2) |
 | IX-550R2UPD8 | 550W 2U High Efficiency Redundant Power Supply | BRT-0203-R2 (1) BRT-0203-4R (1) |
 | IS-700S2UP | Build-to-Order - 700W 2U Redundant Power Supply | BRT-0203-S2 (1) DD-STANDOFF-12MM (2) |
| Single | |||
 | IS-2U40PD8 | Build-to-Order - 2U 400W 80 Plus High Efficiency Power Supply | BRT-0003-RR-S6 (1) |
 | IS-2U46PD8 | 2U 460W 80 Plus High Efficiency Power Supply | BRT-0003-RR-S6 (1) |
 | IS-2U50PD8 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply | BRT-0003-RR-S6 (1) |
 | TC-2U50PD8 | EOL - 500W 2U High Efficiency Switching Power Supply | BRT-0303-1 (1) BRT-0003-RR (1) |
 | TC-2U60PD8 | EOL - 600W 2U High Efficiency Switching Power Supply | BRT-0303-1 (1) BRT-0003-RR (1) |
 | TC-2U70PD8 | 700W 2U High Efficiency Switching Power Supply | BRT-0303-1 (1) BRT-0003-RR (1) |
Compatible Motherboards
| Model # | Motherboard Size | Company Name |
| P8B-C(4L) | ATX | ASUS |
| P8B-E(4L) | ATX | ASUS |
| P8B-X | ATX | ASUS |
| P6T WS Professional | ATX | ASUS |
| P6X58-E WS | ATX | ASUS |
| P8B WS | ATX | ASUS |
| P8C WS | ATX | ASUS |
| P8P67 WS REVOLUTION | ATX | ASUS |
| P8Z77 WS | ATX | ASUS |
| Z9PA-U8 | ATX | ASUS |
| P9X79 WS | CEB | ASUS |
| Z8PE-D18 | EEB | ASUS |
| Z9PE-D16 | EEB | ASUS |
| Z9PR-D12 | EEB | ASUS |
| Z9PE-D16/2L | EEB | ASUS |
| Z9PE-D8 WS | EEB | ASUS |
| P8B-MX | Micro-ATX | ASUS |
| C216 WS | ATX | ASRock |
| E3C204 | ATX | ASRock |
| E3C204-4L | ATX | ASRock |
| E3C204-V+ | ATX | ASRock |
| E3C204-V4L | ATX | ASRock |
| H77WS-DL | ATX | ASRock |
| Z77 WS | ATX | ASRock |
| EN2C602 | CEB | ASRock |
| EN2C602-4L | CEB | ASRock |
| EN2C602/D12 | EEB | ASRock |
| EN2C602-4L/D12 | EEB | ASRock |
| EP2C602 | EEB | ASRock |
| EP2C602/D16 | EEB | ASRock |
| EP2C602-4L | EEB | ASRock |
| EN2C602-4L/D16 | EEB | ASRock |
| AD2550R/U3S3 | Mini ITX | ASRock |
| S5512 | ATX | TYAN |
| S7002 | CEB | TYAN |
| S7040 | CEB | TYAN |
| S7010 | EEB | TYAN |
| S7050 | EEB | TYAN |
| S7052 | EEB | TYAN |
| S7045 | EEB | TYAN |
| S7053 | EEB | TYAN |
| S7012 | EEB | TYAN |
| S5510 | MicroATX | TYAN |
| S5515 | MicroATX | TYAN |
| GA-6UASV3 | microATX | GIGABYTE |
| GA-6UASL3 | microATX | GIGABYTE |
| GA-6PXSV4 | ATX | GIGABYTE |
| GA-6PXSV1 | ATX | GIGABYTE |
| GA-6PXSV2 | ATX | GIGABYTE |
| GA-6PXSV3 | ATX | GIGABYTE |
| GA-7PCSL | CEB | GIGABYTE |
| GA-7PESH4 | EEB | GIGABYTE |
| GA-7PESH2 | EEB | GIGABYTE |
| GA-7PESH3 | EEB | GIGABYTE |
| GA-7PESH1 | EEB | GIGABYTE |
| GA-7PESE3 | EEB | GIGABYTE |
| GA-7PESL | EEB | GIGABYTE |
Chassis Combo
| Model # | HDD Tray | Front Bezel Color | Hotswap 3.5" Bay |
Hotswap 2.5" Bay | Ext 5.25" |
Ext 3.5" | HDD Type |
 | D300L-4DE1BK-SL | Trayless | Silver | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3DE1BK-SL | Trayless | Silver | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2DE1BK-SL | Trayless | Silver | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE1BK-SL | Trayless | Silver | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4DE1SL-SL | Trayless | Silver | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3DE1SL-SL | Trayless | Silver | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2DE1SL-SL | Trayless | Silver | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE1SL-SL | Trayless | Silver | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4DE1BL-SL | Trayless | Silver | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3DE1BL-SL | Trayless | Silver | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2DE1BL-SL | Trayless | Silver | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE1BL-SL | Trayless | Silver | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4DE1RD-SL | Trayless | Silver | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3DE1RD-SL | Trayless | Silver | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2DE1RD-SL | Trayless | Silver | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE1RD-SL | Trayless | Silver | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4DE1BK-RD | Trayless | Red | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3DE1BK-RD | Trayless | Red | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2DE1BK-RD | Trayless | Red | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE1BK-RD | Trayless | Red | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4DE1SL-RD | Trayless | Red | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3DE1SL-RD | Trayless | Red | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2DE1SL-RD | Trayless | Red | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE1SL-RD | Trayless | Red | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4DE1BL-RD | Trayless | Red | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3DE1BL-RD | Trayless | Red | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2DE1BL-RD | Trayless | Red | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE1BL-RD | Trayless | Red | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4DE1RD-RD | Trayless | Red | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3DE1RD-RD | Trayless | Red | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2DE1RD-RD | Trayless | Red | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE1RD-RD | Trayless | Red | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4DE1BK-BL | Trayless | Blue | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3DE1BK-BL | Trayless | Blue | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2DE1BK-BL | Trayless | Blue | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE1BK-BL | Trayless | Blue | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4DE1SL-BL | Trayless | Blue | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3DE1SL-BL | Trayless | Blue | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2DE1SL-BL | Trayless | Blue | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE1SL-BL | Trayless | Blue | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4DE1BL-BL | Trayless | Blue | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3DE1BL-BL | Trayless | Blue | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2DE1BL-BL | Trayless | Blue | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE1BL-BL | Trayless | Blue | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4DE1RD-BL | Trayless | Blue | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3DE1RD-BL | Trayless | Blue | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2DE1RD-BL | Trayless | Blue | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE1RD-BL | Trayless | Blue | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4DE1BK | Trayless | Black | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3DE1BK | Trayless | Black | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2DE1BK | Trayless | Black | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE1BK | Trayless | Black | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4DE1SL | Trayless | Black | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3DE1SL | Trayless | Black | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2DE1SL | Trayless | Black | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE1SL | Trayless | Black | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4DE1BL | Trayless | Black | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3DE1BL | Trayless | Black | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2DE1BL | Trayless | Black | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE1BL | Trayless | Black | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4DE1RD | Trayless | Black | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3DE1RD | Trayless | Black | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2DE1RD | Trayless | Black | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE1RD | Trayless | Black | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-25M4-SL | Trayless | Silver | 0 | 4 | 4 | 0 | 2.5" SATA I/II |
 | D300L-25M2-SL | Trayless | Silver | 0 | 2 | 4 | 1 | 2.5" SATA I/II |
 | D300L-25M4-RD | Trayless | Red | 0 | 4 | 4 | 0 | 2.5" SATA I/II |
 | D300L-25M2-RD | Trayless | Red | 0 | 2 | 4 | 1 | 2.5" SATA I/II |
 | D300L-25M4-BL | Trayless | Blue | 0 | 4 | 4 | 0 | 2.5" SATA I/II |
 | D300L-25M2-BL | Trayless | Blue | 0 | 2 | 4 | 1 | 2.5" SATA I/II |
 | D300L-25M4 | Trayless | Black | 0 | 4 | 4 | 0 | 2.5" SATA I/II |
 | D300L-25M2 | Trayless | Black | 0 | 2 | 4 | 1 | 2.5" SATA I/II |
 | D300L-DE6BK | Trayless | Black | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE6SL | Trayless | Black | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE6BL | Trayless | Black | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE6RD | Trayless | Black | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE3BK | Trayless | Black | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE3SL | Trayless | Black | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE3BL | Trayless | Black | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE3RD | Trayless | Black | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE6BK-SL | Trayless | Silver | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE6SL-SL | Trayless | Silver | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE6BL-SL | Trayless | Silver | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE6RD-SL | Trayless | Silver | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE3BK-SL | Trayless | Silver | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE3SL-SL | Trayless | Silver | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE3BL-SL | Trayless | Silver | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE3RD-SL | Trayless | Silver | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE6BK-RD | Trayless | Red | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE6SL-RD | Trayless | Red | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE6BL-RD | Trayless | Red | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE6RD-RD | Trayless | Red | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE3BK-RD | Trayless | Red | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE3SL-RD | Trayless | Red | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE3BL-RD | Trayless | Red | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE3RD-RD | Trayless | Red | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE6BK-BL | Trayless | Blue | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE6SL-BL | Trayless | Blue | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE6BL-BL | Trayless | Blue | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE6RD-BL | Trayless | Blue | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE3BK-BL | Trayless | Blue | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE3SL-BL | Trayless | Blue | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE3BL-BL | Trayless | Blue | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-DE3RD-BL | Trayless | Blue | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3B126-SL | Tray | Silver | 0 | 18 | 1 | 2 | 2.5" SATA I/II/III |
 | D300L-4B126-SL | Tray | Silver | 0 | 24 | 0 | 2 | 2.5" SATA I/II/III |
 | D300L-4B124-SL | Tray | Silver | 0 | 16 | 0 | 2 | 2.5" SAS I/II & SATA I/II/III |
 | D300L-B126-SL | Tray | Silver | 0 | 6 | 3 | 2 | 2.5" SATA I/II/III |
 | D300L-2B126-SL | Tray | Silver | 0 | 12 | 2 | 2 | 2.5" SATA I/II/III |
 | D300L-B124-SL | Tray | Silver | 0 | 4 | 3 | 2 | 2.5" SAS I/II & SATA I/II/III |
 | D300L-2B124-SL | Tray | Silver | 0 | 8 | 2 | 2 | 2.5" SAS I/II & SATA I/II/III |
 | D300L-3B124-SL | Tray | Silver | 0 | 12 | 1 | 2 | 2.5" SAS I/II & SATA I/II/III |
 | D300L-B6BK-SL | Tray | Silver | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B6SL-SL | Tray | Silver | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B6BL-SL | Tray | Silver | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B6RD-SL | Tray | Silver | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B6PL-SL | Tray | Silver | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B3BK-SL | Tray | Silver | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B3SL-SL | Tray | Silver | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B3BL-SL | Tray | Silver | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B3RD-SL | Tray | Silver | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B3PL-SL | Tray | Silver | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4M1BK-SL | Tray | Silver | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3M1BK-SL | Tray | Silver | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2M1BK-SL | Tray | Silver | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-M1BK-SL | Tray | Silver | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4M1SL-SL | Tray | Silver | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3M1SL-SL | Tray | Silver | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2M1SL-SL | Tray | Silver | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-M1SL-SL | Tray | Silver | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4M1BL-SL | Tray | Silver | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3M1BL-SL | Tray | Silver | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2M1BL-SL | Tray | Silver | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-M1BL-SL | Tray | Silver | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4M1RD-SL | Tray | Silver | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3M1RD-SL | Tray | Silver | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2M1RD-SL | Tray | Silver | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-M1RD-SL | Tray | Silver | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4M1PL-SL | Tray | Silver | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3M1PL-SL | Tray | Silver | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2M1PL-SL | Tray | Silver | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-M1PL-SL | Tray | Silver | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4T7-SL | Tray | Silver | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3T7-SL | Tray | Silver | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2T7-SL | Tray | Silver | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-T7-SL | Tray | Silver | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4T5F-SL | Trayless | Silver | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3T5F-SL | Trayless | Silver | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2T5F-SL | Trayless | Silver | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-T5F-SL | Trayless | Silver | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4B126-RD | Tray | Red | 0 | 24 | 0 | 2 | 2.5" SATA I/II/III |
 | D300L-3B126-RD | Tray | Red | 0 | 18 | 1 | 2 | 2.5" SATA I/II/III |
 | D300L-2B126-RD | Tray | Red | 0 | 12 | 2 | 2 | 2.5" SATA I/II/III |
 | D300L-B126-RD | Tray | Red | 0 | 6 | 3 | 2 | 2.5" SATA I/II/III |
 | D300L-4B124-RD | Tray | Red | 0 | 16 | 0 | 2 | 2.5" SAS I/II & SATA I/II/III |
 | D300L-3B124-RD | Tray | Red | 0 | 12 | 1 | 2 | 2.5" SAS I/II & SATA I/II/III |
 | D300L-2B124-RD | Tray | Red | 0 | 8 | 2 | 2 | 2.5" SAS I/II & SATA I/II/III |
 | D300L-B124-RD | Tray | Red | 0 | 4 | 3 | 2 | 2.5" SAS I/II & SATA I/II/III |
 | D300L-B6BK-RD | Tray | Red | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B6SL-RD | Tray | Red | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B6BL-RD | Tray | Red | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B6RD-RD | Tray | Red | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B6PL-RD | Tray | Red | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B3BK-RD | Tray | Red | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B3SL-RD | Tray | Red | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B3BL-RD | Tray | Red | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B3RD-RD | Tray | Red | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B3PL-RD | Tray | Red | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4M1BK-RD | Tray | Red | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3M1BK-RD | Tray | Red | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2M1BK-RD | Tray | Red | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-M1BK-RD | Tray | Red | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4M1SL-RD | Tray | Red | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3M1SL-RD | Tray | Red | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2M1SL-RD | Tray | Red | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-M1SL-RD | Tray | Red | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4M1BL-RD | Tray | Red | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3M1BL-RD | Tray | Red | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2M1BL-RD | Tray | Red | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-M1BL-RD | Tray | Red | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4M1RD-RD | Tray | Red | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3M1RD-RD | Tray | Red | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2M1RD-RD | Tray | Red | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-M1RD-RD | Tray | Red | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4M1PL-RD | Tray | Red | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3M1PL-RD | Tray | Red | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2M1PL-RD | Tray | Red | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-M1PL-RD | Tray | Red | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4T7-RD | Tray | Red | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3T7-RD | Tray | Red | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2T7-RD | Tray | Red | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-T7-RD | Tray | Red | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4T5F-RD | Trayless | Red | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3T5F-RD | Trayless | Red | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2T5F-RD | Trayless | Red | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-T5F-RD | Trayless | Red | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4B126-BL | Tray | Blue | 0 | 24 | 0 | 2 | 2.5" SATA I/II/III |
 | D300L-3B126-BL | Tray | Blue | 0 | 18 | 1 | 2 | 2.5" SATA I/II/III |
 | D300L-2B126-BL | Tray | Blue | 0 | 12 | 2 | 2 | 2.5" SATA I/II/III |
 | D300L-B126-BL | Tray | Blue | 0 | 6 | 3 | 2 | 2.5" SATA I/II/III |
 | D300L-4B124-BL | Tray | Blue | 0 | 16 | 0 | 2 | 2.5" SAS I/II & SATA I/II/III |
 | D300L-3B124-BL | Tray | Blue | 0 | 12 | 1 | 2 | 2.5" SAS I/II & SATA I/II/III |
 | D300L-2B124-BL | Tray | Blue | 0 | 8 | 2 | 2 | 2.5" SAS I/II & SATA I/II/III |
 | D300L-B124-BL | Tray | Blue | 0 | 4 | 3 | 2 | 2.5" SAS I/II & SATA I/II/III |
 | D300L-B6BK-BL | Tray | Blue | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B6SL-BL | Tray | Blue | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B6BL-BL | Tray | Blue | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B6RD-BL | Tray | Blue | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B6PL-BL | Tray | Blue | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B3BK-BL | Tray | Blue | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B3SL-BL | Tray | Blue | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B3BL-BL | Tray | Blue | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B3RD-BL | Tray | Blue | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B3PL-BL | Tray | Blue | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4M1BK-BL | Tray | Blue | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3M1BK-BL | Tray | Blue | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2M1BK-BL | Tray | Blue | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-M1BK-BL | Tray | Blue | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4M1SL-BL | Tray | Blue | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3M1SL-BL | Tray | Blue | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2M1SL-BL | Tray | Blue | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-M1SL-BL | Tray | Blue | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4M1BL-BL | Tray | Blue | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3M1BL-BL | Tray | Blue | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2M1BL-BL | Tray | Blue | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-M1BL-BL | Tray | Blue | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4M1RD-BL | Tray | Blue | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3M1RD-BL | Tray | Blue | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2M1RD-BL | Tray | Blue | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-M1RD-BL | Tray | Blue | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4M1PL-BL | Tray | Blue | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3M1PL-BL | Tray | Blue | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2M1PL-BL | Tray | Blue | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-M1PL-BL | Tray | Blue | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4T7-BL | Tray | Blue | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3T7-BL | Tray | Blue | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2T7-BL | Tray | Blue | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-T7-BL | Tray | Blue | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4T5F-BL | Trayless | Blue | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3T5F-BL | Trayless | Blue | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2T5F-BL | Trayless | Blue | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-T5F-BL | Trayless | Blue | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4B126 | Tray | Black | 0 | 24 | 0 | 2 | 2.5" SATA I/II/III |
 | D300L-3B126 | Tray | Black | 0 | 18 | 1 | 2 | 2.5" SATA I/II/III |
 | D300L-2B126 | Tray | Black | 0 | 12 | 2 | 2 | 2.5" SATA I/II/III |
 | D300L-B126 | Tray | Black | 0 | 6 | 3 | 2 | 2.5" SATA I/II/III |
 | D300L-4B124 | Tray | Black | 0 | 16 | 0 | 2 | 2.5" SAS I/II & SATA I/II/III |
 | D300L-3B124 | Tray | Black | 0 | 12 | 1 | 2 | 2.5" SAS I/II & SATA I/II/III |
 | D300L-2B124 | Tray | Black | 0 | 8 | 2 | 2 | 2.5" SAS I/II & SATA I/II/III |
 | D300L-B124 | Tray | Black | 0 | 4 | 3 | 2 | 2.5" SAS I/II & SATA I/II/III |
 | D300L-B6BK | Tray | Black | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B6SL | Tray | Black | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B6BL | Tray | Black | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B6RD | Tray | Black | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B6PL | Tray | Black | 6 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B3BK | Tray | Black | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B3SL | Tray | Black | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B3BL | Tray | Black | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B3RD | Tray | Black | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-B3PL | Tray | Black | 3 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4M1BK | Tray | Black | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3M1BK | Tray | Black | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2M1BK | Tray | Black | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-M1BK | Tray | Black | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4M1SL | Tray | Black | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3M1SL | Tray | Black | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2M1SL | Tray | Black | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-M1SL | Tray | Black | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4M1BL | Tray | Black | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3M1BL | Tray | Black | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2M1BL | Tray | Black | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-M1BL | Tray | Black | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4M1RD | Tray | Black | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3M1RD | Tray | Black | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2M1RD | Tray | Black | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-M1RD | Tray | Black | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4M1PL | Tray | Black | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3M1PL | Tray | Black | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2M1PL | Tray | Black | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-M1PL | Tray | Black | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4T7 | Tray | Black | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3T7 | Tray | Black | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2T7 | Tray | Black | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-T7 | Tray | Black | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-4T5F | Trayless | Black | 4 | 0 | 0 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-3T5F | Trayless | Black | 3 | 0 | 1 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-2T5F | Trayless | Black | 2 | 0 | 2 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D300L-T5F | Trayless | Black | 1 | 0 | 3 | 2 | 3.5" SAS I/II & SATA I/II/III |
 | D-300L-SILVER | Silver | 0 | 0 | 4 | 2 | ||
 | D-300L-RED | Red | 0 | 0 | 4 | 2 | ||
 | D-300L-BLUE | Blue | 0 | 0 | 4 | 2 |
Featured Videos
 | Description: How to install IS-400R2UP Power Supply into a 3U chassis Products: D-300,D-300SE,D-300SEA,D-300L,D-300LSE,D2-300 |
 | Description: How to install IS-1U40PD8 Power Supply into D-300 Chassis Products: D-300,D-300SE,D-300SEA,D-300L,D-300LSE,D2-300,D-300A,D-300ASE |
 | Description: How to install TC-2U70PD8 Power Supply into D-300 Chassis Products: D-300,D-300SE,D-300SEA,D-300L,D-300LSE,D2-300,D-300A,D-300ASE |
 | Description: D300L Products: D-300L |
SUPPORT
Providing technical support as our top priority.
Contact us today!
tech support contact info:
Tel: 1-626-303-8885
Product Support Request
Contact us today!
tech support contact info:
Tel: 1-626-303-8885
Product Support Request
