Industrial Chassis | iStarUSA Products | D-402A-14 - Build-to-Order 4U 14 Slots Industrial PC Rackmount Chassis

D-402A-14

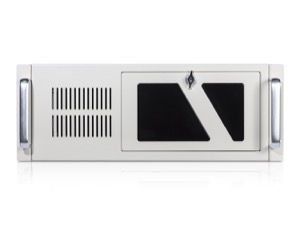

Build-to-Order 4U 14 Slots Industrial PC Rackmount Chassis

Front Access USB2.0 x2
120mm x1 Cooling Fan
Removable Air Filter
Power and HDD LED
Power and Alarm Reset Switch
support PICMG Backplane 14 Slot Backplane
Black Color option

Product Introduction
The 4U form factor chassis accepts 14 full-height expansion cards and 12"x9.6" ATX / Micro ATX motherboards. The rackmount chassis provides your server a sturdy structure, reliability and performance. The D-402A-14 series is formed around a group of integration of a single common all steel chassis design. The D-402A-14 Rack Chassis is 17.8 inches of solid performer in its ability to ruggedly house the most demanding applications. The D-402A-14 Enclosure features a lockable front door that secures four front accessible 5.25" drive bays for fixed or removable media as well as optional internal brackets that based on unit configuration can host one external internal 3.5" drive. This is the ideal high capacity, low profile, (only 4U high) system or server enclosure. Single or dual front mounted power supplies on some integration and single unit high capacity power subsystems on other integration.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards

Model Number	D-402A-14
RoHS Compliance	Yes
Form factor	4 U
Standard Drive Bays	3.5" Drive (internal): 1 5.25" Drives: 3
Indicators	Power, HDD
Switches	Power, Reset
Supported PSU Type	PS2
Expansion Slots	14
Security	Front Bezel Key Lock
Material of Front Bezel	SGCC 1.0mm
Material of Handle	SECC Zinc-Coated Steel
Material of Main Chassis	SGCC 1.2mm
Color of Front Bezel	Black or Beige
Color of Main Chassis	Beige
Front Connector	2x USB 2.0
Air Filter	Removable & Washable
Motherboard Size	Passive backplane/ Single board and ATX
Cooling Fan	1x120mm
Dimensions (WxHxD)	19.00" x 7.00" x 17.80" 482.6 mm x 177.8 mm x 452.1 mm

Download

Data Sheet (PDF)

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	BPU-124V2-SS	Build-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPU-126-SA	Special Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	BPU-230SATA	2x 5.25" to 3x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
	BPU-340SATA	3x 5.25" to 4x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
	BPU-350SATA	3x 5.25" to 5x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
	DIY-RHF03	Build-to-Order - 3.5" to 5.25" Anti-Vibration Hard Drive Mounting Bracket
	RP-COMBO-SLIM	5.25" Optical Drive and Floppy Drive Cage Holder
	RP-COMBO-SLIM2535	2.5"/ 3.5" HDD & Slim Optical Drive to 5.25" Drive Bay Cage
	RP-FDD35	5.25" Drive Bay Bracket for 3.5" Devices
	RP-HDD2.5	2.5" to 3.5" Hard Drive Mounting Bracket
	RP-HDD25BC	2.5" HDD SSD Mounting Bracket for 3.5" Bay
	RP-HDD25P	3.5" Drive Bay Bracket for 2x 2.5" SSDs
	RP-HDD3.5	3.5" to 5.25" Hard Drive Mounting Bracket
	RP-HUB-SAUF	3.5" Combo Hub for USB2.0/ Firewire/ e-SATA
	RP-READER35	Build-to-Order - All-in-one USB 2.0 Card Reader
	T-25HD-SI	Build-to-Order - 2.5" SATA HDD SSD Slot Carrier
	T5F-SS	EOL - Trayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack
	T5-SA	Build-to-Order - Trayless 5.25" to 3.5" SATA HDD Anti-vibration Hotswap Rack
	T-7M1-SATA	5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-7-SA	Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	TC-ISTORM7	2x5.25" to 3x3.5" Internal Mounting Cooling Kit with Removable Filter
	TC-ISTORM8	3.5" to 5.25" Hard Drive Cooling Heat Sink
	TC-RAIL-20	20" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-24	24" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-26	26" Sliding Rail Kit for Most Rackmount Chassis
	BPN-DE230SS	Trayless 2x5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack
	BPN-DE340SS	Trayless 3x 5.25" to 4x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack
	RP-2HDD2535	5.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives
	RP-4HDD255F	EOL 4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket
	BPN-DE110SS	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	BPU-124DE-SS	5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-G525-SS	Industrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
	BPN-DE110SS-WB	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	BPN-DE230SS-WB	Trayless 2x 5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	BPN-DE340SS-WB	Trayless 3x 5.25" to 4x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	BPN-124K-SA	Trayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K3525U-SA	Trayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	T-5K225T-SA	Trayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K35T-SA	Trayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack
	T-5K25TU-SA	Trayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	BPN-DE350SS	Trayless 3x 5.25" to 5x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack

Compatible Power Supplies

	Model #	Description	Required Bracket(s)
Redundant
	IS-500R8P	Build-to-Order - 500W PS2 Mini Redundant Power Supply	Brackets Not Required
	IX-500R8PD8	Build-to-Order - 500W PS2 Mini High Efficiency Redundant Power Supply	Brackets Not Required
	IS-550R8P	EOL - 550W PS2 Mini Redundant Power Supply	Brackets Not Required
	IS-800R3NP	Special Order - 800W PS2 Mini Redundant Power Supply	Brackets Not Required
Single
	TC-400PD8	Build-to-Order - 400W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	TC-500PD8	500W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	TC-500PD3	Build-to-Order - 500W PS3 Size ATX12V Switching Power Supply	Brackets Not Required
	IS-680PD8	Build-to-Order - 680W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	IS-680PD8	Build-to-Order - 680W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	TC-700PD8B	700W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	IS-780PD8	Build-to-Order - 780W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	IS-880PD8	Build-to-Order - 880W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	IS-1000PD8	Build-to-Order - 1000W PS2 ATX 80 Plus High Efficiency Switching Power Supply	Brackets Not Required
