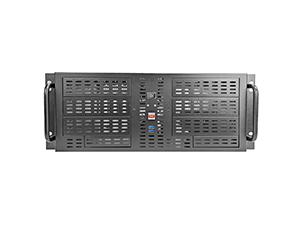

D-406-EC
4U Compact Stylish Rackmount Chassis
  • Front Access USB3.0 x2
  • 80mm x2 Cooling Fan
  • Power and HDD LED
  • Full ODM/OEM Capable
  • Liquid Cool Solution Ready
Product Introduction
iStarUSA 4U industrial rackmount chassis D Storm Economy D-406-EC. Combine with BPU or T Series enable hot-swappable storage capability. It also supports up to seven add-on cards and total storage capacity up to 5 storage drives for RAID configuration. D-406-EC provide your server or cluster maximum reliability and performance. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution.

Model NumberD-406-EC
RoHS ComplianceYes
Form factor4 U
Standard Drive Bays 3.5" Drives: 2
3.5" Drive (internal): 2
5.25" Drives: 6
IndicatorsPower, HDD
SwitchesPower, Reset
Supported PSU TypePS2, Mini Redundant
Expansion Slots7
Material of Front BezelAluminum alloy
Material of HandleSECC Zinc-Coated Steel
Material of Main Chassis1.2mm SECC Zinc-Coated Steel
Color of Front BezelBlack
Color of Main ChassisBlack
Front Connector2x USB 3.0
Motherboard Size12 x 9.6 (ATX, microATX)
Cooling Fan1x80mm
Optional Fan:80mm x1
Dimensions (WxHxD)19.00" x 7.00" x 20.80"
482.6 mm x 177.8 mm x 528.3 mm
