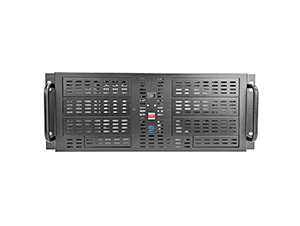

D-406L-EC
4U High Performance Rackmount Chassis
  • 120mm x3, 80mm x2 Cooling Fan
  • Front Access USB3.0 x2
  • Power and HDD LED
  • Power and Reset Switch
  • Full ODM/OEM Capable
  • Liquid Cool Solution Ready
Product Introduction
iStarUSA 4U industrial rackmount chassis D Storm Economy D-406L-EC. Combine with BPU or T Series enable hot-swappable JBOD and RAID configuration. It also supports up to seven full-length full-height add-on cards. Total capacity up to 3.5" x12 or 2.5" x36 HDD drives for high density data storage. Center hot-swappable 120mm fan provides excellent thermal cooling solution. Achieve ultimate uninterrupted operation with support of iStarUSA redundant power supply. D-406L-EC provides your server or cluster maximum flexibility and performance.

Model NumberD-406L-EC
RoHS ComplianceYes
Form factor4 U
Standard Drive Bays 3.5" Drives: 2
3.5" Drive (internal): 2
5.25" Drives: 6
IndicatorsPower, HDD
SwitchesPower, Reset
Supported PSU TypePS2, Mini Redundant
Expansion Slots7
Material of Front BezelAluminum alloy
Material of HandleSECC Zinc-Coated Steel
Material of Main Chassis1.2mm SECC Zinc-Coated Steel
Color of Front BezelBlack
Color of Main ChassisBlack
Front Connector2x USB 3.0
Motherboard Size12 x 13 (EATX, ATX, microATX)
Cooling Fan1x80mm, 3x120mm
Optional Fan:80mm x1
Dimensions (WxHxD)19.00" x 7.00" x 27.90"
482.6 mm x 177.8 mm x 708.7 mm


Download
FAQ


There are no FAQ entries for this model.

Optional Accessories

Model #Description

Compatible Power Supplies

Model #DescriptionRequired Bracket(s)

Compatible Motherboards

Model #Motherboard SizeCompany Name

There are no compatibility motherboard for this model.

Featured Videos

There are currently no iStarVideos for this Item.
