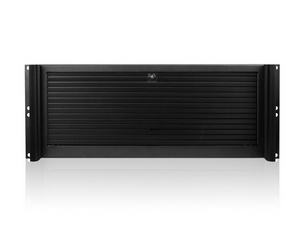

D-416-2B126SA
Build to Order - 4U Compact Stylish Rackmount Chassis 12 x 2.5" Hotswap Drives PS2 PSU
  • Supports front access USB ports
  • Supports standard ATX power supplies
  • Compatible with redundant power supplies
  • 12 hot-swappable bays for 2.5" HDDs/SSDs
  • Key lock front bezel to prevent unauthorized access
Product Introduction
D-416-2B126SA is a reliable and stable 4U-high server chassis. The full size I/O supports all ATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 7 full-height add-on cards. This chassis is 21? deep and has optional three 80mm cooling fans in the center and two 60mm fans at rear for air ventilation. In addition, D-416-2B126SA supports a standard ATX PS2 power supply to meet regular server system applications.

Model NumberD-416-2B126SA
RoHS ComplianceYes
Form factor4 U
Standard Drive Bays Hotswap 2.5": 12
3.5" Drive (internal): 2
5.25" Drives: 4
Hotswap HDD Type:2.5" SATA I/II/III
IndicatorsPower, HDD
SwitchesPower, Reset
Expansion Slots7
Material of Front BezelAluminum
Material of HandleAluminum
Material of Main ChassisGalvanized Steel
Color of Front BezelBlack
Color of Main ChassisBlack
Front ConnectorFront USB 2.0 x 2 Connector
Motherboard Size12 x 9.6 (ATX, microATX)
Optional Fan:80mm x2, 60mm x2
Dimensions (WxHxD)19.00" x 7.00" x 21.77"
482.6 mm x 177.8 mm x 553.0 mm
Notes- the two internal 3.5" bays at the bottom of drive cage cannot be used when an EATX motherboard is in place.


Download
FAQ


There are no FAQ entries for this model.

Optional Accessories

Model #Description
BPU-124V2-SSBuild-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
BPU-126-SASpecial Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
BPU-230SATA2x 5.25" to 3x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
BPU-340SATA3x 5.25" to 4x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
BPU-350SATA3x 5.25" to 5x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
DIY-RHF03Build-to-Order - 3.5" to 5.25" Anti-Vibration Hard Drive Mounting Bracket
RP-COMBO-SLIM5.25" Optical Drive and Floppy Drive Cage Holder
RP-COMBO-SLIM25352.5"/ 3.5" HDD & Slim Optical Drive to 5.25" Drive Bay Cage
RP-FDD355.25" Drive Bay Bracket for 3.5" Devices
RP-HDD2.52.5" to 3.5" Hard Drive Mounting Bracket
RP-HDD25BC2.5" HDD SSD Mounting Bracket for 3.5" Bay
RP-HDD25P3.5" Drive Bay Bracket for 2x 2.5" SSDs
RP-HDD3.53.5" to 5.25" Hard Drive Mounting Bracket
TC-RAIL-2626" Sliding Rail Kit for Most Rackmount Chassis
BPN-DE230SSTrayless 2x5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack
BPN-DE340SSTrayless 3x 5.25" to 4x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack
BPN-DE230SS-WBTrayless 2x 5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
BPN-DE340SS-WBTrayless 3x 5.25" to 4x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
TC-RAIL-2020" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2424" Sliding Rail Kit for Most Rackmount Chassis
BPN-DE350SSTrayless 3x 5.25" to 5x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack

Compatible Power Supplies

Model #DescriptionRequired Bracket(s)
Single
TC-400PD8Build-to-Order - 400W PS2 ATX High Efficiency Switching Power SupplyBrackets Not Required
TC-500PD8500W PS2 ATX High Efficiency Switching Power SupplyBrackets Not Required
TC-500PD3Build-to-Order - 500W PS3 Size ATX12V Switching Power SupplyBrackets Not Required
