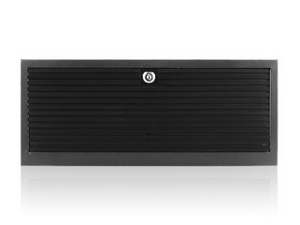

D-416-DT
4U Compact Stylish Server/Desktop Chassis
4U Compact Stylish Server/Desktop Chassis
- Supports front access USB ports
- Supports standard ATX power supplies
- Compatible with redundant power supplies
- Fits extended-ATX motherboards for high peroformance configurations
- The most economic solution for 4U chassis with 6 x 5.25" bays
Product Introduction
D-416-DT is a reliable and stable 4U-high server chassis. The full size I/O supports all ATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 7 full-height add-on cards. This chassis is 21" deep and has optional three 80mm cooling fans in the center and two 60mm fans at rear for air ventilation. In addition, D-416-DT supports a standard ATX PS2 power supply to meet regular server system applications.
D-416-DT is a reliable and stable 4U-high server chassis. The full size I/O supports all ATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 7 full-height add-on cards. This chassis is 21" deep and has optional three 80mm cooling fans in the center and two 60mm fans at rear for air ventilation. In addition, D-416-DT supports a standard ATX PS2 power supply to meet regular server system applications.
| Model Number | D-416-DT |
| RoHS Compliance | Yes |
| Form factor | 4 U |
| Standard Drive Bays |
3.5" Drive (internal): 2 5.25" Drives: 6 |
| Indicators | Power, HDD |
| Switches | Power, Reset |
| Supported PSU Type | PS2 |
| Expansion Slots | 7 |
| Security | Front Bezel Key Lock |
| Material of Front Bezel | Aluminum |
| Material of Handle | Aluminum |
| Material of Main Chassis | Galvanized Steel |
| Color of Front Bezel | Black |
| Color of Main Chassis | Black |
| Front Connector | 2x USB 2.0 |
| Motherboard Size | 12 x 9.6 (ATX, microATX) |
| Optional Fan: | 80mm x2, 60mm x2 |
| Dimensions (WxHxD) | 19.00" x 7.00" x 20.47" 482.6 mm x 177.8 mm x 519.9 mm |
| Notes | - the two internal 3.5" bays at the bottom of drive cage cannot be used when an EATX motherboard is in place. |
FAQ
There are no FAQ entries for this model. |
Optional Accessories
| Model # | Description | |
 | RP-HDD25P | |
 | RHF-03 | |
 | RP-COMBO-SLIM | 5.25" Optical Drive and Floppy Drive Cage Holder |
 | RP-COMBO-SLIM2535 | |
 | RP-FDD35 | 5.25" Drive Bay Bracket for 3.5" Devices |
 | RP-HDD2.5 | 2.5" to 3.5" Hard Drive Mounting Bracket |
 | RP-HDD25BC | |
 | RP-HDD3.5 | 3.5" to 5.25" Hard Drive Mounting Bracket |
 | TC-ISTORM7 | 2x5.25" to 3x3.5" Internal Mounting Cooling Kit with Removable Filter |
 | TC-ISTORM8 | 3.5" to 5.25" Hard Drive Cooling Heat Sink |
 | TC-RAIL-26 | 26" Sliding Rail Kit for Most Rackmount Chassis |
 | BPU-124V2-SS | Build-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack |
 | T-7M1-SATA | 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack |
 | T5F-SS | EOL - Trayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack |
 | BPU-350SATA | 3x 5.25" to 5x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack |
 | BPU-340SATA | 3x 5.25" to 4x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack |
 | BPU-230SATA | 2x 5.25" to 3x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack |
 | T-7-SA | Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack |
 | T5-SA | Build-to-Order - Trayless 5.25" to 3.5" SATA HDD Anti-vibration Hotswap Rack |
 | T-25HD-SI | Build-to-Order - 2.5" SATA HDD SSD Slot Carrier |
 | BPU-126-SA | Special Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack |
 | BPN-DE230SS | Trayless 2x5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack |
 | BPN-DE340SS | Trayless 3x 5.25" to 4x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack |
 | RP-4HDD255F | EOL 4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket |
 | RP-2HDD2535 | 5.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives |
 | BPN-DE110SS | Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack |
 | BPU-124DE-SS | 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack |
 | T-G525-SS | Industrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack |
 | BPN-DE110SS-WB | Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel |
 | BPN-DE230SS-WB | Trayless 2x 5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack with Wood Look Bezel |
 | BPN-DE340SS-WB | Trayless 3x 5.25" to 4x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack with Wood Look Bezel |
 | BPN-124K-SA | Trayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack |
 | T-5K3525U-SA | Trayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0 |
 | T-5K225T-SA | Trayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack |
 | T-5K35T-SA | Trayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack |
 | T-5K25TU-SA | Trayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0 |
 | TC-RAIL-20 | 20" Sliding Rail Kit for Most Rackmount Chassis |
 | TC-RAIL-24 | 24" Sliding Rail Kit for Most Rackmount Chassis |
 | BPN-DE350SS | Trayless 3x 5.25" to 5x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack |
Compatible Power Supplies
| Model # | Description | Required Bracket(s) | |
| Single | |||
 | TC-400PD8 | Build-to-Order - 400W PS2 ATX High Efficiency Switching Power Supply | Brackets Not Required |
 | TC-500PD8 | 500W PS2 ATX High Efficiency Switching Power Supply | Brackets Not Required |
 | TC-500PD3 | Build-to-Order - 500W PS3 Size ATX12V Switching Power Supply | Brackets Not Required |
Compatible Motherboards
| Model # | Motherboard Size | Company Name |
There are no compatibility motherboard for this model. | ||
