Industrial Chassis | iStarUSA Products | D2-300L-M6SA - Build-to-Order

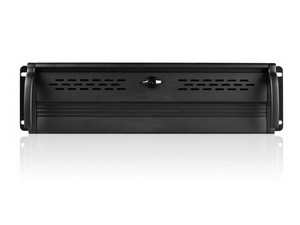

D2-300L-M6SA
Build-to-Order - 3U 6 Hot-Swappable Rackmount Chassis

Front Access USB2.0 x2
80mm x5 cooling fan
Power and HDD LED
Power and Alarm Reset Switch
6 Hot-Swappable SATA II Drive Bay

Product Introduction
A descendant of our popular D-Storm rackmount chassis D2-300L-M6SA is stylish and compact. The redesigned D2-300L-M6SA feature 6 hot-swap drive trays with SATA II interface to provide high density and high availability storage system. D2-300L-M6SA supports up to 7 add-on cards for system expansions and upgrades. Excellent thermal design with CoolingFan cooling fan to ensure optimal performance. D2-300L-M6SA is the cost-effective solution for 3U storage server chassis.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards

Model Number	D2-300L-M6SA
RoHS Compliance	Yes
Form factor	3 U
Standard Drive Bays	Hotswap 3.5": 6 5.25" Drives: 2
Hotswap HDD Type:	3.5" SAS I/II & SATA I/II/III
Indicators	Power, HDD, Temperature, Fan
Switches	Power ON/OFF, System & Alarm Reset
Expansion Slots	7
Security	Front Bezel
Material of Front Bezel	Aluminum alloy
Material of Handle	SECC Zinc-Coated Steel
Material of Main Chassis	1.2mm SECC Zinc-Coated Steel (Japan Made)
Color of Front Bezel	Black
Color of Main Chassis	Black
Front Connector	Front USB 2.0 x 2 Connector
Air Filter	Removable & Washable
Motherboard Size	12 x 13 (EATX, ATX, microATX)
Cooling Fan	2x60mm, 3x80mm
Dimensions (WxHxD)	19.00" x 5.25" x 27.10" 482.6 mm x 133.3 mm x 688.3 mm

Download

Data Sheet (PDF)

Product Drawing (PDF)

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	BPU-124V2-SS	Build-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPU-126-SA	Special Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	BPU-230SATA	2x 5.25" to 3x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
	BPU-2535-SI	Build-to-Order - 3.5" to 2.5" SATA 6 Gbps HDD Hot-swap Rack
	DIY-RHF03	Build-to-Order - 3.5" to 5.25" Anti-Vibration Hard Drive Mounting Bracket
	RP-COMBO-SLIM	5.25" Optical Drive and Floppy Drive Cage Holder
	RP-COMBO-SLIM2535	2.5"/ 3.5" HDD & Slim Optical Drive to 5.25" Drive Bay Cage
	RP-FDD35	5.25" Drive Bay Bracket for 3.5" Devices
	RP-HDD2.5	2.5" to 3.5" Hard Drive Mounting Bracket
	RP-HDD25BC	2.5" HDD SSD Mounting Bracket for 3.5" Bay
	RP-HDD25P	3.5" Drive Bay Bracket for 2x 2.5" SSDs
	RP-HDD3.5	3.5" to 5.25" Hard Drive Mounting Bracket
	RP-HUB-SAUF	3.5" Combo Hub for USB2.0/ Firewire/ e-SATA
	T-25HD-SI	Build-to-Order - 2.5" SATA HDD SSD Slot Carrier
	T5F-SS	EOL - Trayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack
	T5-SA	Build-to-Order - Trayless 5.25" to 3.5" SATA HDD Anti-vibration Hotswap Rack
	T-7M1-SATA	5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-7-SA	Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	TC-ISTORM7	2x5.25" to 3x3.5" Internal Mounting Cooling Kit with Removable Filter
	TC-ISTORM8	3.5" to 5.25" Hard Drive Cooling Heat Sink
	TC-RAIL-24	24" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-26	26" Sliding Rail Kit for Most Rackmount Chassis
	BPN-DE230SS	Trayless 2x5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack
	RP-2HDD2535	5.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives
	RP-4HDD255F	EOL 4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket

	BPN-DE110SS	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	BPU-124DE-SS	5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-G525-SS	Industrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
	BPN-2535DE-SA	3.5" to 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-G35-SS	Industrial 3.5" to 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPN-DE110SS-WB	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	BPN-DE230SS-WB	Trayless 2x 5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	BPN-124K-SA	Trayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K3525U-SA	Trayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	T-5K225T-SA	Trayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K35T-SA	Trayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack
	T-5K25TU-SA	Trayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	T-35K25-SA	Build-to-Order - Trayless 3.5" to 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack

Compatible Power Supplies

	Model #	Description	Required Bracket(s)
Redundant
	IS-350R2UP	Build-to-Order - 350W 2U Redundant Power Supply	Brackets Not Required
	IS-400R2UP	Build-to-Order - 400W 2U Redundant Power Supply	Brackets Not Required
	IS-700R3KP	EOL - 700W 3U Redundant Power Supply	Brackets Not Required
	IS-700S2UP	Build-to-Order - 700W 2U Redundant Power Supply	BRT-0203-S2 (1)
	IS-800R3KP	800W 3U Redundant Power Supply	Brackets Not Required
	IS-1000R3KP	EOL - 1000W 3U Redundant Power Supply	Brackets Not Required
Single
	IS-2U40PD8	Build-to-Order - 2U 400W 80 Plus High Efficiency Power Supply	BRT-0003-RR-S6 (1)
	IS-2U46PD8	2U 460W 80 Plus High Efficiency Power Supply	BRT-0003-RR-S6 (1)
	IS-2U50PD8	Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply	BRT-0003-RR-S6 (1)
	TC-2U50PD8	EOL - 500W 2U High Efficiency Switching Power Supply	BRT-0303-1 (1) BRT-0003-RR (1)
	TC-2U60PD8	EOL - 600W 2U High Efficiency Switching Power Supply	BRT-0303-1 (1) BRT-0003-RR (1)
