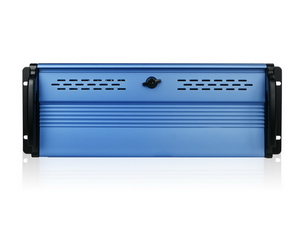

D2-400-7-BLUE
4U Compact Stylish Rackmount Chassis

Front Access USB2.0 x2
Power and HDD LED
Standard I/O Shield
Power and Reset Switch
80mm x1 Cooling Fan

Product Introduction
D2-400-7-BLUE is iStarUSA 4U industrial rackmount chassis. It can be combined with iStarUSA HDD Cages, BPU-Series or T Series enable hot-swappable storage capability. It also supports up to seven add-on cards for system expansions and upgrades. D2-400-7-BLUE provides your server or cluster maximum reliability and performance.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards
Chassis Combo	Back Panel

Model Number	D2-400-7-BLUE
RoHS Compliance	Yes
Form factor	4 U
Standard Drive Bays	3.5" Drives: 1 3.5" Drive (internal): 1 5.25" Drives: 7
Indicators	Power, HDD
Switches	Power, Reset
Expansion Slots	7
Security	Front Bezel
Material of Front Bezel	Aluminum alloy
Material of Handle	Aluminum
Material of Main Chassis	Steel 1.2mm
Color of Front Bezel	Blue
Color of Main Chassis	Black
Front Connector	USB 2.0 x 2 Connector
Motherboard Size	12 x 9.6 (ATX, microATX)
Cooling Fan	1x80mm
Optional Fan:	1x80mm
Dimensions (WxHxD)	19.00" x 7.00" x 20.75" 482.6 mm x 177.8 mm x 527.0 mm

Download

Data Sheet (PDF)

Product Drawing (PDF)

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	BPU-124V2-SS	Build-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPU-126-SA	Special Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	BPU-230SATA	2x 5.25" to 3x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
	BPU-2535-SI	Build-to-Order - 3.5" to 2.5" SATA 6 Gbps HDD Hot-swap Rack
	BPU-340SATA	3x 5.25" to 4x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
	BPU-350SATA	3x 5.25" to 5x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
	DIY-RHF03	Build-to-Order - 3.5" to 5.25" Anti-Vibration Hard Drive Mounting Bracket
	RP-COMBO-SLIM	5.25" Optical Drive and Floppy Drive Cage Holder
	RP-COMBO-SLIM2535	2.5"/ 3.5" HDD & Slim Optical Drive to 5.25" Drive Bay Cage
	RP-FDD35	5.25" Drive Bay Bracket for 3.5" Devices
	RP-HDD2.5	2.5" to 3.5" Hard Drive Mounting Bracket
	RP-HDD25BC	2.5" HDD SSD Mounting Bracket for 3.5" Bay
	RP-HDD25P	3.5" Drive Bay Bracket for 2x 2.5" SSDs
	RP-HDD3.5	3.5" to 5.25" Hard Drive Mounting Bracket
	T-25HD-SI	Build-to-Order - 2.5" SATA HDD SSD Slot Carrier
	T5F-SS	EOL - Trayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack
	T5-SA	Build-to-Order - Trayless 5.25" to 3.5" SATA HDD Anti-vibration Hotswap Rack
	T-7M1-SATA	5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-7-SA	Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	TC-ISF08	8 Ports Fan Sensor Board
	TC-ISTORM7	2x5.25" to 3x3.5" Internal Mounting Cooling Kit with Removable Filter
	TC-ISTORM8	3.5" to 5.25" Hard Drive Cooling Heat Sink
	TC-RAIL-20	20" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-24	24" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-26	26" Sliding Rail Kit for Most Rackmount Chassis
	BPN-DE230SS	Trayless 2x5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack
	BPN-DE340SS	Trayless 3x 5.25" to 4x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack
	BPN-DE110SS	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	BPU-124DE-SS	5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-G525-SS	Industrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
	BPN-2535DE-SA	3.5" to 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-G35-SS	Industrial 3.5" to 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPN-DE110SS-WB	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	BPN-DE230SS-WB	Trayless 2x 5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	BPN-DE340SS-WB	Trayless 3x 5.25" to 4x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	BPN-124K-SA	Trayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K3525U-SA	Trayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	T-5K225T-SA	Trayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K35T-SA	Trayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack
	T-5K25TU-SA	Trayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	T-35K25-SA	Build-to-Order - Trayless 3.5" to 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	DD-FANBAR	Center Support Bar for D Storm 2U 3U 4U Chassis
	BPN-DE350SS	Trayless 3x 5.25" to 5x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack

Compatible Power Supplies

	Model #	Description	Required Bracket(s)
Redundant
	IS-500R8P	Build-to-Order - 500W PS2 Mini Redundant Power Supply	Brackets Not Required
	IS-550R8P	EOL - 550W PS2 Mini Redundant Power Supply	Brackets Not Required
	IS-700R3NP	Build-to-Order - 700W PS2 Mini Redundant Power Supply	Brackets Not Required
	IS-800R3NP	Special Order - 800W PS2 Mini Redundant Power Supply	Brackets Not Required
	IS-950R3NPD8	Build-to-Order - 950W 80 Plus PS2 Mini Redundant Power Supply	BRT-D34UR3KN8-LR (2) BRT-D4UR3N8-RR (1) DD-STANDOFF-12MM (2)
	IS-1000R3NP	EOL - 1000W PS2 Mini Redundant Power Supply	Brackets Not Required
Single
	TC-500PD3	Build-to-Order - 500W PS3 Size ATX12V Switching Power Supply	Brackets Not Required
	IS-680PD8	Build-to-Order - 680W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	IS-780PD8	Build-to-Order - 780W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	IS-880PD8	Build-to-Order - 880W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	IS-1000PD8	Build-to-Order - 1000W PS2 ATX 80 Plus High Efficiency Switching Power Supply	Brackets Not Required

Compatible Motherboards

Model #	Motherboard Size	Company Name
P8B-C(4L)	ATX	ASUS

P8B-E(4L)	ATX	ASUS

P8B-X	ATX	ASUS

P6T WS Professional	ATX	ASUS

P6X58-E WS	ATX	ASUS

P8B WS	ATX	ASUS

P8C WS	ATX	ASUS

P8P67 WS REVOLUTION	ATX	ASUS

P8Z77 WS	ATX	ASUS

Z9PA-U8	ATX	ASUS

P8B-MX	Micro-ATX	ASUS

C216 WS	ATX	ASRock

E3C204	ATX	ASRock

E3C204-4L	ATX	ASRock

E3C204-V+	ATX	ASRock

E3C204-V4L	ATX	ASRock

H77WS-DL	ATX	ASRock

Z77 WS	ATX	ASRock

AD2550R/U3S3	Mini ITX	ASRock

S5512	ATX	TYAN

S5510	MicroATX	TYAN

S5515	MicroATX	TYAN

GA-6UASV3	microATX	GIGABYTE

GA-6UASL3	microATX	GIGABYTE

GA-6PXSV4	ATX	GIGABYTE

GA-6PXSV1	ATX	GIGABYTE

GA-6PXSV2	ATX	GIGABYTE

GA-6PXSV3	ATX	GIGABYTE

Chassis Combo

Model #

HDD Tray

Front Bezel
Color

Hotswap
3.5" Bay

Hotswap
2.5" Bay

Ext
5.25"

Ext
3.5"

HDD Type

D2-407BL-DE10BK	Trayless	Blue	10	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-DE10SL	Trayless	Blue	10	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-DE10BL	Trayless	Blue	10	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-DE10RD	Trayless	Blue	10	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-DE5BK	Trayless	Blue	5	0	4	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-DE5SL	Trayless	Blue	5	0	4	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-DE5BL	Trayless	Blue	5	0	4	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-DE5RD	Trayless	Blue	5	0	4	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-7DE1BK	Trayless	Blue	7	0	0	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-6DE1BK	Trayless	Blue	6	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-5DE1BK	Trayless	Blue	5	0	2	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-4DE1BK	Trayless	Blue	4	0	3	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-3DE1BK	Trayless	Blue	3	0	4	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-2DE1BK	Trayless	Blue	2	0	5	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-DE1BK	Trayless	Blue	1	0	6	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-7DE1SL	Trayless	Blue	7	0	0	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-6DE1SL	Trayless	Blue	6	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-5DE1SL	Trayless	Blue	5	0	2	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-4DE1SL	Trayless	Blue	4	0	3	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-3DE1SL	Trayless	Blue	3	0	4	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-2DE1SL	Trayless	Blue	2	0	5	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-DE1SL	Trayless	Blue	1	0	6	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-7DE1BL	Trayless	Blue	7	0	0	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-6DE1BL	Trayless	Blue	6	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-5DE1BL	Trayless	Blue	5	0	2	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-4DE1BL	Trayless	Blue	4	0	3	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-3DE1BL	Trayless	Blue	3	0	4	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-2DE1BL	Trayless	Blue	2	0	5	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-DE1BL	Trayless	Blue	1	0	6	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-7DE1RD	Trayless	Blue	7	0	0	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-6DE1RD	Trayless	Blue	6	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-5DE1RD	Trayless	Blue	5	0	2	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-4DE1RD	Trayless	Blue	4	0	3	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-3DE1RD	Trayless	Blue	3	0	4	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-2DE1RD	Trayless	Blue	2	0	5	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-DE1RD	Trayless	Blue	1	0	6	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-25M2	Trayless	Blue	0	2	7	0	2.5" SATA I/II
D2-407BL-DE8BK	Trayless	Blue	8	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-DE8SL	Trayless	Blue	8	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-DE8BL	Trayless	Blue	8	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-DE8RD	Trayless	Blue	8	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-DE4BK	Trayless	Blue	4	0	4	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-DE4SL	Trayless	Blue	4	0	4	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-DE4BL	Trayless	Blue	4	0	4	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-DE4RD	Trayless	Blue	4	0	4	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-DE9BK	Trayless	Blue	9	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-DE9SL	Trayless	Blue	9	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-DE9BL	Trayless	Blue	9	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-DE9RD	Trayless	Blue	9	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-DE6BK	Trayless	Blue	6	0	3	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-DE6SL	Trayless	Blue	6	0	3	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-DE6BL	Trayless	Blue	6	0	3	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-DE6RD	Trayless	Blue	6	0	3	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-DE3BK	Trayless	Blue	3	0	5	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-DE3SL	Trayless	Blue	3	0	5	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-DE3BL	Trayless	Blue	3	0	5	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-DE3RD	Trayless	Blue	3	0	5	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-7B126	Tray	Blue	0	42	0	1	2.5" SATA I/II/III
D2-407BL-6B126	Tray	Blue	0	36	1	1	2.5" SATA I/II/III
D2-407BL-5B126	Tray	Blue	0	30	2	1	2.5" SATA I/II/III
D2-407BL-4B126	Tray	Blue	0	24	3	1	2.5" SATA I/II/III
D2-407BL-3B126	Tray	Blue	0	18	4	1	2.5" SATA I/II/III
D2-407BL-2B126	Tray	Blue	0	12	5	1	2.5" SATA I/II/III
D2-407BL-B126	Tray	Blue	0	6	6	1	2.5" SATA I/II/III
D2-407BL-7B124	Tray	Blue	0	28	0	1	2.5" SAS I/II & SATA I/II/III
D2-407BL-6B124	Tray	Blue	0	24	1	1	2.5" SAS I/II & SATA I/II/III
D2-407BL-5B124	Tray	Blue	0	20	2	1	2.5" SAS I/II & SATA I/II/III
D2-407BL-4B124	Tray	Blue	0	16	3	1	2.5" SAS I/II & SATA I/II/III
D2-407BL-3B124	Tray	Blue	0	12	4	1	2.5" SAS I/II & SATA I/II/III
D2-407BL-2B124	Tray	Blue	0	8	5	1	2.5" SAS I/II & SATA I/II/III
D2-407BL-B124	Tray	Blue	0	4	6	1	2.5" SAS I/II & SATA I/II/III
D2-407BL-B10BK	Tray	Blue	10	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-B10SL	Tray	Blue	10	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-B10BL	Tray	Blue	10	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-B10RD	Tray	Blue	10	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-B10PL	Tray	Blue	10	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-B5BK	Tray	Blue	5	0	4	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-B5SL	Tray	Blue	5	0	4	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-B5RD	Tray	Blue	5	0	4	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-B5PL	Tray	Blue	5	0	4	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-B8BK	Tray	Blue	8	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-B8SL	Tray	Blue	8	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-B8BL	Tray	Blue	8	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-B8RD	Tray	Blue	8	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-B8PL	Tray	Blue	8	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-B4BK	Tray	Blue	4	0	4	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-B4SL	Tray	Blue	4	0	4	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-B4RD	Tray	Blue	4	0	4	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-B4PL	Tray	Blue	4	0	4	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-B9BK	Tray	Blue	9	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-B9SL	Tray	Blue	9	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-B9BL	Tray	Blue	9	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-B9RD	Tray	Blue	9	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-B9PL	Tray	Blue	9	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-B6BK	Tray	Blue	6	0	3	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-B6SL	Tray	Blue	6	0	3	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-B6RD	Tray	Blue	6	0	3	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-B6PL	Tray	Blue	6	0	3	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-B3BK	Tray	Blue	3	0	5	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-B3SL	Tray	Blue	3	0	5	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-B3BL	Tray	Blue	3	0	5	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-B3RD	Tray	Blue	3	0	5	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-B3PL	Tray	Blue	3	0	5	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-7M1BK	Tray	Blue	7	0	0	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-6M1BK	Tray	Blue	6	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-5M1BK	Tray	Blue	5	0	2	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-4M1BK	Tray	Blue	4	0	3	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-3M1BK	Tray	Blue	3	0	4	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-2M1BK	Tray	Blue	2	0	5	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-M1BK	Tray	Blue	1	0	6	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-7M1SL	Tray	Blue	7	0	0	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-6M1SL	Tray	Blue	6	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-5M1SL	Tray	Blue	5	0	2	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-4M1SL	Tray	Blue	4	0	3	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-3M1SL	Tray	Blue	3	0	4	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-2M1SL	Tray	Blue	2	0	5	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-M1SL	Tray	Blue	1	0	6	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-7M1BL	Tray	Blue	7	0	0	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-6M1BL	Tray	Blue	6	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-5M1BL	Tray	Blue	5	0	2	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-4M1BL	Tray	Blue	4	0	3	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-3M1BL	Tray	Blue	3	0	4	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-2M1BL	Tray	Blue	2	0	5	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-M1BL	Tray	Blue	1	0	6	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-7M1RD	Tray	Blue	7	0	0	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-6M1RD	Tray	Blue	6	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-5M1RD	Tray	Blue	5	0	2	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-4M1RD	Tray	Blue	4	0	3	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-3M1RD	Tray	Blue	3	0	4	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-2M1RD	Tray	Blue	2	0	5	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-M1RD	Tray	Blue	1	0	6	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-7M1PL	Tray	Blue	7	0	0	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-6M1PL	Tray	Blue	6	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-5M1PL	Tray	Blue	5	0	2	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-4M1PL	Tray	Blue	4	0	3	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-3M1PL	Tray	Blue	3	0	4	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-2M1PL	Tray	Blue	2	0	5	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-M1PL	Tray	Blue	1	0	6	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-7T7	Tray	Blue	7	0	0	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-6T7	Tray	Blue	6	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-5T7	Tray	Blue	5	0	2	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-4T7	Tray	Blue	4	0	3	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-3T7	Tray	Blue	3	0	4	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-2T7	Tray	Blue	2	0	5	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-T7	Tray	Blue	1	0	6	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-7T5F	Trayless	Blue	7	0	0	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-6T5F	Trayless	Blue	6	0	1	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-5T5F	Trayless	Blue	5	0	2	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-4T5F	Trayless	Blue	4	0	3	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-3T5F	Trayless	Blue	3	0	4	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-2T5F	Trayless	Blue	2	0	5	1	3.5" SAS I/II & SATA I/II/III
D2-407BL-T5F	Trayless	Blue	1	0	6	1	3.5" SAS I/II & SATA I/II/III

Backplane

	Model #	Port
	N-DVR-28030	0
	N-DVR-28041	16
	N-DVR-28042	16
	N-DVR-28043	16
	N-DVR-28044	16
	N-DVR-28045	36
	N-DVR-28046	16
	N-DVR-28047	16
	N-DVR-28048	32
	N-DVR-28049	16
	N-DVR-28049-1	16
	N-DVR-28050	16
	N-DVR-28051	16
	N-DVR-28052	16
	N-DVR-28053	32
	N-DVR-28054	16
	N-DVR-28055	48
	N-DVR-28056	16
	N-DVR-28057	16
	N-DVR-28058	32
	N-DVR-28058-1	16
	N-DVR-28059	16
	N-DVR-28060	16
	N-DVR-28061	16
	N-DVR-28420	0
	N-DVR-28421	0
	N-DVR-28422	0
	N-DVR-28423	0
	N-DVR-28424	0
	N-DVR-28425	0
	N-DVR-28426	0
