Industrial Chassis | iStarUSA Products | E-306L-95R3K8 - 3U E-ATX 6 x 5.25" Bays Rackmount Chassis with 950W Redundant Power Supply

E-306L-95R3K8

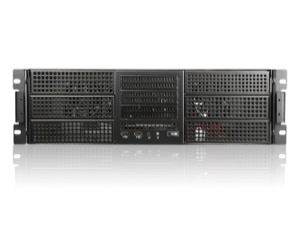

3U E-ATX 6 x 5.25" Bays Rackmount Chassis with 950W Redundant Power Supply

80mm x4 and 60mm x2 Cooling Fans
1.2mm Steel Body Chassis
Power and Alarm Reset Switch
Power LED Indicators
Supports Front Access USB3.0 x2
Supports E-ATX Motherboard
950W Redundant Power Supply

Product Introduction
E-306L rackmount chassis is designed with six 5.25" drive bays Indicatorsand three 3.5" drive bays. combined with BPU 3.5" to 5.25" hdd cages provides up to 13 x 3.5" hard drives or SSDs capability for any RAID configuration. Four 80mm fans is equipped with E-306L to provide the best air ventilation preventing critical equipment from heat damage. E-306L also supports E-ATX motherbaord and redundant power supply to provide maximum reliability and performance for server applications.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards

Model Number	E-306L-95R3K8
RoHS Compliance	Yes
Form factor	3 U
Standard Drive Bays	3.5" Drives: 3 5.25" Drives: 6
Indicators	Power
Switches	Power, Reset
Expansion Slots	7
Material of Front Bezel	Aluminum
Material of Handle	Aluminum
Material of Main Chassis	Zinc-Coated Steel SECC 1.2mm
Color of Main Chassis	Black
Front Connector	2x USB 3.0
Motherboard Size	12 x 13 (EATX, ATX, microATX)
Cooling Fan	2x60mm, 4x80mm
Dimensions (WxHxD)	19.00" x 5.19" x 25.10" 482.6 mm x 131.8 mm x 637.5 mm

Download

There are no downloadable media for this product.

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	BPU-124V2-SS	Build-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPU-126-SA	Special Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	BPU-230SATA	2x 5.25" to 3x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
	BPU-2535-SI	Build-to-Order - 3.5" to 2.5" SATA 6 Gbps HDD Hot-swap Rack
	BPU-340SATA	3x 5.25" to 4x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
	BPU-350SATA	3x 5.25" to 5x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
	RP-COMBO-SLIM	5.25" Optical Drive and Floppy Drive Cage Holder
	RP-COMBO-SLIM2535	2.5"/ 3.5" HDD & Slim Optical Drive to 5.25" Drive Bay Cage
	T5F-SS	EOL - Trayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack
	T-7M1-SATA	5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-7-SA	Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	TC-ISTORM7	2x5.25" to 3x3.5" Internal Mounting Cooling Kit with Removable Filter
	TC-ISTORM8	3.5" to 5.25" Hard Drive Cooling Heat Sink
	TC-RAIL-24	24" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-26	26" Sliding Rail Kit for Most Rackmount Chassis
	BPN-DE230SS	Trayless 2x5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack
	BPN-DE340SS	Trayless 3x 5.25" to 4x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack
	RP-4HDD255F	EOL 4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket
	RP-2HDD2535	5.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives
	BPN-DE110SS	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	BPU-124DE-SS	5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-G525-SS	Industrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
	BPN-2535DE-SA	3.5" to 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-G35-SS	Industrial 3.5" to 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPN-DE110SS-WB	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	BPN-DE230SS-WB	Trayless 2x 5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	BPN-DE340SS-WB	Trayless 3x 5.25" to 4x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	BPN-124K-SA	Trayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K3525U-SA	Trayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	T-5K225T-SA	Trayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K35T-SA	Trayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack
	T-5K25TU-SA	Trayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	T-35K25-SA	Build-to-Order - Trayless 3.5" to 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	BPN-DE350SS	Trayless 3x 5.25" to 5x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack

Compatible Power Supplies

	Model #	Description	Required Bracket(s)
Redundant
	IS-500S2UP	Build-to-Order - 500W 2U Redundant Power Supply	Brackets Not Required
	IS-700S2UP	Build-to-Order - 700W 2U Redundant Power Supply	Brackets Not Required
	IS-700R3KP	EOL - 700W 3U Redundant Power Supply	Brackets Not Required
	IS-800R3KP	800W 3U Redundant Power Supply	Brackets Not Required
	IS-1000R3KP	EOL - 1000W 3U Redundant Power Supply	Brackets Not Required
Single
	IS-2U40PD8	Build-to-Order - 2U 400W 80 Plus High Efficiency Power Supply	Brackets Not Required
	IS-2U46PD8	2U 460W 80 Plus High Efficiency Power Supply	Brackets Not Required
	TC-2U50PD8	EOL - 500W 2U High Efficiency Switching Power Supply	BRT-0303-1 (1)
	IS-2U50PD8	Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply	Brackets Not Required
	TC-2U60PD8	EOL - 600W 2U High Efficiency Switching Power Supply	BRT-0303-1 (1)
