E-40

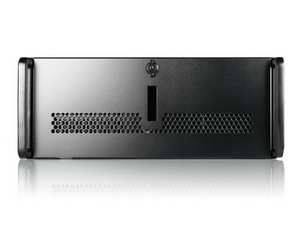

Build-to-Order - 4U Rugged 15" Compact Rackmount Chassis
  • Compact 15" Depth
  • 1.6mm Steel Body Chassis
  • Shock Absorbing Drive Cage
  • Front Access USB3.0 x2
  • 120mm x1 Cooling Fan
  • Removable Air Filter
  • Fan and Temperature Monitor Option
  • Industrial Keylock Bezel
Product Introduction
E-40 rackmount chassis is designed to withstand the toughest and compact environment. E-40 is 4U height with only 15" in depth and special features of front USB access, ball-bearing cooling fan, and system sensor board to enhance functionality and usability for critical missions and applications.

Model NumberE-40
RoHS ComplianceYes
Form factor4 U
Standard Drive Bays 3.5" Drives: 1
3.5" Drive (internal): 2
5.25" Drives: 2
IndicatorsLEDs for Power ON/OFF, HDD, Fan & Alarm
SwitchesPower ON/OFF, System & Alarm Reset
Expansion Slots7
SecurityFront Bezel
Material of Front Bezel1.6mm SECC Zinc-Coated Steel
Material of Handle1.6mm SECC Zinc-Coated Steel
Material of Main Chassis1.6mm SECC Zinc-Coated Steel
Color of Front BezelBlack
Color of Main ChassisBlack
Front ConnectorFront USB 3.0 x 2 Connector
Air FilterRemovable & Washable
Motherboard Size12 x 9.6 (ATX, microATX)
Cooling Fan1x120mm
Dimensions (WxHxD)19.00" x 6.97" x 15.00"
482.6 mm x 177.0 mm x 381.0 mm


Download
FAQ


There are no FAQ entries for this model.

Optional Accessories

Model #Description
BPU-230SATA2x 5.25" to 3x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
RP-COMBO-SLIM5.25" Optical Drive and Floppy Drive Cage Holder
RP-HDD3.53.5" to 5.25" Hard Drive Mounting Bracket
T-7M1-SATA5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
T-7-SARugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
TC-ISTORM72x5.25" to 3x3.5" Internal Mounting Cooling Kit with Removable Filter
TC-ISTORM83.5" to 5.25" Hard Drive Cooling Heat Sink
TC-RAIL-2020" Sliding Rail Kit for Most Rackmount Chassis
BPN-DE230SSTrayless 2x5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack
RP-2HDD25355.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives
RP-4HDD255FEOL 4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket
BPN-DE110SSTrayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
BPU-124DE-SS5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
T-G525-SSIndustrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
BPN-DE110SS-WBTrayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
BPN-DE230SS-WBTrayless 2x 5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
BPN-124K-SATrayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-5K3525U-SATrayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
T-5K225T-SATrayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-5K35T-SATrayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack
T-5K25TU-SATrayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0

Compatible Power Supplies

Model #DescriptionRequired Bracket(s)
Single
TC-400PD8Build-to-Order - 400W PS2 ATX High Efficiency Switching Power SupplyBrackets Not Required
TC-500PD3Build-to-Order - 500W PS3 Size ATX12V Switching Power SupplyBrackets Not Required
TC-500PD8500W PS2 ATX High Efficiency Switching Power SupplyBrackets Not Required
IS-680PD8Build-to-Order - 680W PS2 ATX High Efficiency Switching Power SupplyBrackets Not Required
TC-700PD8B700W PS2 ATX High Efficiency Switching Power SupplyBrackets Not Required
IS-780PD8Build-to-Order - 780W PS2 ATX High Efficiency Switching Power SupplyBrackets Not Required
IS-880PD8Build-to-Order - 880W PS2 ATX High Efficiency Switching Power SupplyBrackets Not Required
IS-1000PD8Build-to-Order - 1000W PS2 ATX 80 Plus High Efficiency Switching Power SupplyBrackets Not Required

Compatible Motherboards

Model #Motherboard SizeCompany Name
P8B-C(4L)ATXASUS
P8B-E(4L)ATXASUS
P8B-XATXASUS
P6T WS ProfessionalATXASUS
P6X58-E WSATXASUS
P8B WSATXASUS
P8C WSATXASUS
P8P67 WS REVOLUTIONATXASUS
P8Z77 WSATXASUS
Z9PA-U8ATXASUS
P8B-MXMicro-ATXASUS
C216 WSATXASRock
E3C204ATXASRock
E3C204-4LATXASRock
E3C204-V+ATXASRock
E3C204-V4LATXASRock
H77WS-DLATXASRock
Z77 WSATXASRock
AD2550R/U3S3Mini ITXASRock
S5512ATXTYAN
S5510MicroATXTYAN
S5515MicroATXTYAN
GA-6UASV3microATXGIGABYTE
GA-6UASL3microATXGIGABYTE
GA-6PXSV4ATXGIGABYTE
GA-6PXSV1ATXGIGABYTE
GA-6PXSV2ATXGIGABYTE
GA-6PXSV3ATXGIGABYTE

Chassis Combo

Model #HDD Tray Front Bezel
Color		Hotswap
3.5" Bay		 Hotswap
2.5" Bay		Ext
5.25"		 Ext
3.5"		HDD Type
E40-25M2TraylessBlack02202.5" SATA I/II
E40-2DE1BKTraylessBlack20013.5" SAS I/II & SATA I/II/III
E40-DE1BKTraylessBlack10113.5" SAS I/II & SATA I/II/III
E40-2DE1SLTraylessBlack20013.5" SAS I/II & SATA I/II/III
E40-DE1SLTraylessBlack10113.5" SAS I/II & SATA I/II/III
E40-2DE1BLTraylessBlack20013.5" SAS I/II & SATA I/II/III
E40-DE1BLTraylessBlack10113.5" SAS I/II & SATA I/II/III
E40-2DE1RDTraylessBlack20013.5" SAS I/II & SATA I/II/III
E40-DE1RDTraylessBlack10113.5" SAS I/II & SATA I/II/III
E40-DE3BKTraylessBlack30013.5" SAS I/II & SATA I/II/III
E40-DE3SLTraylessBlack30013.5" SAS I/II & SATA I/II/III
E40-DE3BLTraylessBlack30013.5" SAS I/II & SATA I/II/III
E40-DE3RDTraylessBlack30013.5" SAS I/II & SATA I/II/III
E40-2B126TrayBlack012012.5" SATA I/II/III
E40-B126TrayBlack06112.5" SATA I/II/III
E40-2B124TrayBlack08012.5" SAS I/II & SATA I/II/III
E40-B124TrayBlack04112.5" SAS I/II & SATA I/II/III
E40-B3BKTrayBlack30013.5" SAS I/II & SATA I/II/III
E40-B3SLTrayBlack30013.5" SAS I/II & SATA I/II/III
E40-B3BLTrayBlack30013.5" SAS I/II & SATA I/II/III
E40-B3RDTrayBlack30013.5" SAS I/II & SATA I/II/III
E40-B3PLTrayBlack30013.5" SAS I/II & SATA I/II/III
E40-2M1BKTrayBlack20013.5" SAS I/II & SATA I/II/III
E40-M1BKTrayBlack10113.5" SAS I/II & SATA I/II/III
E40-2M1SLTrayBlack20013.5" SAS I/II & SATA I/II/III
E40-M1SLTrayBlack10113.5" SAS I/II & SATA I/II/III
E40-2M1BLTrayBlack20013.5" SAS I/II & SATA I/II/III
E40-M1BLTrayBlack10113.5" SAS I/II & SATA I/II/III
E40-2M1RDTrayBlack20013.5" SAS I/II & SATA I/II/III
E40-M1RDTrayBlack10113.5" SAS I/II & SATA I/II/III
E40-2M1PLTrayBlack20013.5" SAS I/II & SATA I/II/III
E40-M1PLTrayBlack10113.5" SAS I/II & SATA I/II/III
E40-2T7TrayBlack20013.5" SAS I/II & SATA I/II/III
E40-T7TrayBlack10113.5" SAS I/II & SATA I/II/III
E40-2T5FTraylessBlack20013.5" SAS I/II & SATA I/II/III
E40-T5FTraylessBlack10113.5" SAS I/II & SATA I/II/III
