Industrial Chassis | iStarUSA Products | EB-2101-ITX - Build-to-Order - 4 x 2.5" Bays Industrial Embedded Chassis

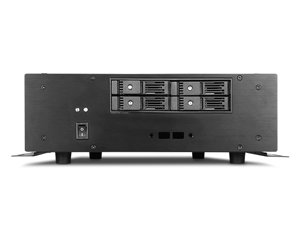

EB-2101-ITX
Build-to-Order - 4 x 2.5" Bays Industrial Embedded Chassis

Sleek aluminum front panel
4 trayless and hotswappable 2.5" bays for HDD/SSD quick swap
Removable air filter
Ultra-compact size
Support mini-ITX motherboard
Optional Wall-mount kit available
Fanless with aluminum heatsink housing - good for CPU power consumption under 50W*
Perfect for ultra-low noise, power saving, and space-limited applications
Available in custom colors

Product Introduction
iStarUSA introduces the aluminum fanless embedded chassis EB-2101-ITX. It features a compact size, fanless cooling design, mini-ITX motherboard compatibility, wall-mountability, and four 2.5" hotswap bays. EB-2101-ITX is not only good at flexibility with quad 2.5" HDD/SSD storage expansion, it also provides elegance with a sleek aluminum front panel. With aluminum heatsink design on both sides, it is perfect for ultra-low noise, power saving, and space-limited applications.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards

Model Number	EB-2101-ITX
RoHS Compliance	Yes
Standard Drive Bays	Hotswap 2.5": 4
Indicators	Power, HDD
Switches	Power
Supported PSU Type	1U Flex
Expansion Slots	1
Material of Front Bezel	Aluminum
Material of Main Chassis	Aluminum & SECC 1.0mm
Color of Front Bezel	Black
Color of Main Chassis	Black
Front Connector	2x USB 3.0
Air Filter	Removable
Motherboard Size	6.7 x 6.7 (mini-ITX)
Cooling Fan	2x80mm
Dimensions (WxHxD)	12.00" x 3.70" x 10.60" 304.8 mm x 94.0 mm x 269.2 mm
Notes	please contact sales department for an OEM design with cooling fan(s) if the CPU power consumption is more than 50W to 70W

Download

Data Sheet (PDF)

FAQ

Q :	CPU Power Requirement Reference.
A :	Please refer to the PDF file.

Optional Accessories

	Model #	Description
	BPN-DE230SS	Trayless 2x5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack
	BPN-DE340SS	Trayless 3x 5.25" to 4x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack
	BPN-DE350SS	Trayless 3x 5.25" to 5x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack
	BPU-230SATA	2x 5.25" to 3x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
	BPU-340SATA	3x 5.25" to 4x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
	BPU-350SATA	3x 5.25" to 5x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
	T-7M1-SATA	5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPU-126-SA	Special Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	BPU-124V2-SS	Build-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPN-DE110SS	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	BPU-124DE-SS	5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-G525-SS	Industrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
	BPN-DE110SS-WB	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	BPN-DE230SS-WB	Trayless 2x 5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	BPN-DE340SS-WB	Trayless 3x 5.25" to 4x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	BPN-124K-SA	Trayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K3525U-SA	Trayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	T-5K225T-SA	Trayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K35T-SA	Trayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack
	T-5K25TU-SA	Trayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	BPN-DE350SS	Trayless 3x 5.25" to 5x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack

Compatible Power Supplies

	Model #	Description	Required Bracket(s)
Single
	TC-1U15FX1	Special Order - 1U 150W Flex Power Supply	Brackets Not Required
	TC-1U18FX1	1U 180W Flex Power Supply	Brackets Not Required
	TC-1U22FX8	Special Order - 1U 220W Flex High Efficiency Power Supply	Brackets Not Required
	TC-1U30FX8	1U 300W Flex High Efficiency Power Supply	Brackets Not Required
