Industrial Chassis | iStarUSA Products | S-0312-DT - Compact Stylish Mini-ITX Enclosure with PSU and Desktop Stand

S-0312-DT

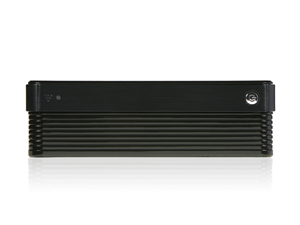

Compact Stylish Mini-ITX Enclosure with PSU and Desktop Stand

Comes with 60W (12V/5A) power adapter
One 2.5" hard drive mounting bracket
Optional VESA mount kit
Power Connectors: 20+4 pin, Floppy x1, SATA x1, Molex x1, 4pin 12V x1
Compatible with slim optical drive

Product Introduction
The S-0312-DT is design to house high performing systems at a much reduced size. Porous cover and side wall designs allow maximum heat ventilation. Desktop stands and optional monitor mount makes this case a workstations new friend.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards

Model Number	S-0312-DT
RoHS Compliance	Yes
Form factor	Desktop U
Standard Drive Bays	2.5" Drive (internal): 1 Slim 5.25" Optical: 1
Switches	Power
Material of Front Bezel	Plastic
Material of Main Chassis	SECC 0.8mm
Color of Front Bezel	Black
Color of Main Chassis	Black
Front Connector	2x USB 2.0 & Audio In/Out
Motherboard Size	6.7 x 6.7 (mini-ITX)
Ordering Information (Part Number)	with 60W (12V/5A) power adapter: S-0312-DT with 120W (12V/10A) power adapter: S-0312-DT-120
Dimensions (WxHxD)	5.10" x 10.40" x 11.00" 129.5 mm x 264.2 mm x 279.4 mm
Notes	- height of heat sink with fan needs to be less than 48mm.
