IS-2U46PD8
2U 460W 80 Plus High Efficiency Power Supply
- 80 Plus High Efficiency and Reliability
- 16ms Hold Up Time
- Over Current Protection
- Over Voltage Protection
- Short Circuit Protection
- Low Noise and Thermal-controlled Fan
Product Introduction
XEAL 2U power supply series provide high performance in compact form factor. The IS-2U46PD8 supports server, compact PC, and space constrained application. Standard feature includes 80+ efficiency, triple circuits protection, and active PFC for industrial and high performance system requirement.
| Model Number | IS-2U46PD8 |
| RoHS Compliance | Yes |
| Output Wattage | 460 |
| Efficiency | 80% |
| Connector Type | Main Connector :: 24 pin 4pin 12V :: 1 8pin EPS 12V :: 1 Molex :: 4 SATA :: 2 Floppy :: 1 |
| Dimensions (WxHxD) | 3.94" x 2.76" x 7.87" 100.1 mm x 70.1 mm x 199.9 mm |
Parts & Accessories
| Image | Accessory | Description |

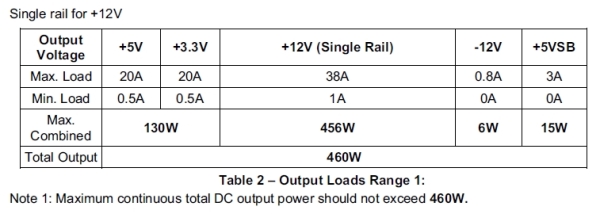

Output
FAQ
| Q : | What is the dBA of the power supply? |
| A : |
40.3 dBA Max. |
Featured Videos
Compatible Chassis
| Model # | Description | |
|
D-200 | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-200A-T | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-200L | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-200L-T | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-200-T | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-200SE | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-200LSE | 2U 460W 80 Plus High Efficiency Power Supply |
|
D2-200 | 2U 460W 80 Plus High Efficiency Power Supply |
|
D2-200L-M4SA | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-300 | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-300A | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-300AS | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-300L | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-300L-B6SA | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-300-MUSIC | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-300SE | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-300LSE | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-300ASE | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-300SASE | 2U 460W 80 Plus High Efficiency Power Supply |
|
D2-300 | 2U 460W 80 Plus High Efficiency Power Supply |
|
D2-300L-M6SA | 2U 460W 80 Plus High Efficiency Power Supply |
|
E-207L | 2U 460W 80 Plus High Efficiency Power Supply |
|
E-212L | 2U 460W 80 Plus High Efficiency Power Supply |
|
E-204L | 2U 460W 80 Plus High Efficiency Power Supply |
|
E-306L | 2U 460W 80 Plus High Efficiency Power Supply |
|
V-3-M4SA | 2U 460W 80 Plus High Efficiency Power Supply |
|
E2M4 | 2U 460W 80 Plus High Efficiency Power Supply |
|
E2M4-25M2SA | 2U 460W 80 Plus High Efficiency Power Supply |
|
E2M4-2T7SA | 2U 460W 80 Plus High Efficiency Power Supply |
|
E2M12 | 2U 460W 80 Plus High Efficiency Power Supply |
|
E2M4-2M1 | 2U 460W 80 Plus High Efficiency Power Supply |
|
E2M8 | 2U 460W 80 Plus High Efficiency Power Supply |
|
E2M10 | 2U 460W 80 Plus High Efficiency Power Supply |
|
D200L-24R-40R2U | 2U 460W 80 Plus High Efficiency Power Supply |
|
D200L-24R-46R2U | 2U 460W 80 Plus High Efficiency Power Supply |
|
D200-24R-46R2U | 2U 460W 80 Plus High Efficiency Power Supply |
|
D200-24R-40R2U | 2U 460W 80 Plus High Efficiency Power Supply |
|
D200SE-24R-40R2U | 2U 460W 80 Plus High Efficiency Power Supply |
|
D200SE-24R-46R2U | 2U 460W 80 Plus High Efficiency Power Supply |
|
D200LSE-24R-40R2U | 2U 460W 80 Plus High Efficiency Power Supply |
|
D200LSE-24R-46R2U | 2U 460W 80 Plus High Efficiency Power Supply |
|
D300-24R-40R2U | 2U 460W 80 Plus High Efficiency Power Supply |
|
D300-24R-46R2U | 2U 460W 80 Plus High Efficiency Power Supply |
|
D300SE-24R-40R2U | 2U 460W 80 Plus High Efficiency Power Supply |
|
D300SE-24R-46R2U | 2U 460W 80 Plus High Efficiency Power Supply |
|
D300L-24R-40R2U | 2U 460W 80 Plus High Efficiency Power Supply |
|
D300L-24R-46R2U | 2U 460W 80 Plus High Efficiency Power Supply |
|
D300LSE-24R-40R2U | 2U 460W 80 Plus High Efficiency Power Supply |
|
D300LSE-24R-46R2U | 2U 460W 80 Plus High Efficiency Power Supply |
|
D300LB6-24R-40R2U | 2U 460W 80 Plus High Efficiency Power Supply |
|
D300LB6-24R-46R2U | 2U 460W 80 Plus High Efficiency Power Supply |
|
E2M4-24R-40R2U | 2U 460W 80 Plus High Efficiency Power Supply |
|
E2M4-24R-46R2U | 2U 460W 80 Plus High Efficiency Power Supply |
|
E2M8-24R-40R2U | 2U 460W 80 Plus High Efficiency Power Supply |
|
E2M8-24R-46R2U | 2U 460W 80 Plus High Efficiency Power Supply |
|
E2M10-24R-40R2U | 2U 460W 80 Plus High Efficiency Power Supply |
|
E2M10-24R-46R2U | 2U 460W 80 Plus High Efficiency Power Supply |
|
E204L-24R-40R2U | 2U 460W 80 Plus High Efficiency Power Supply |
|
E204L-24R-46R2U | 2U 460W 80 Plus High Efficiency Power Supply |
|
E306L-DE4 | 2U 460W 80 Plus High Efficiency Power Supply |
|
E204L-M1B3SA | 2U 460W 80 Plus High Efficiency Power Supply |
|
E306L-DE6 | 2U 460W 80 Plus High Efficiency Power Supply |
|
E306L-B5SA | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-300L-TS669 | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-300-BK-TS669 | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-300-BL-TS669 | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-300-RD-TS669 | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-300-SL-TS669 | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-300A-BK-TS669 | 2U 460W 80 Plus High Efficiency Power Supply |
|
|
D-300A-BL-TS669 | 2U 460W 80 Plus High Efficiency Power Supply |
|
|
D-300A-RD-TS669 | 2U 460W 80 Plus High Efficiency Power Supply |
|
|
D-300A-SL-TS669 | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-300L-BK-TS669 | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-300L-BL-TS669 | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-300L-RD-TS669 | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-300L-SL-TS669 | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-300-TS669 | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-300A-TS669 | 2U 460W 80 Plus High Efficiency Power Supply |
|
|
D200-40R2UP-RAIL24 | 2U 460W 80 Plus High Efficiency Power Supply |
|
|
D200L-40R2UP-RAIL24 | 2U 460W 80 Plus High Efficiency Power Supply |
|
|
D200SE-40R2UP-RAIL24 | 2U 460W 80 Plus High Efficiency Power Supply |
|
|
D300-40R2UP-RAIL24 | 2U 460W 80 Plus High Efficiency Power Supply |
|
|
D300L-40R2UP-RAIL24 | 2U 460W 80 Plus High Efficiency Power Supply |
|
|
D300SE-40R2UP-RAIL24 | 2U 460W 80 Plus High Efficiency Power Supply |
|
|
E2M4-40R2UP-RAIL24 | 2U 460W 80 Plus High Efficiency Power Supply |
|
|
E204L-40R2UP-RAIL24 | 2U 460W 80 Plus High Efficiency Power Supply |
|
|
E306L-40R2UP-RAIL24 | 2U 460W 80 Plus High Efficiency Power Supply |
|
|
E2M10-40R2UP-RAIL24 | 2U 460W 80 Plus High Efficiency Power Supply |
|
|
E2M8-40R2UP-RAIL24 | 2U 460W 80 Plus High Efficiency Power Supply |
|
|
D200LSE-40R2U-RAIL24 | 2U 460W 80 Plus High Efficiency Power Supply |
|
|
D300L-B6PL-40R-RL24 | 2U 460W 80 Plus High Efficiency Power Supply |
|
|
D300LSE-40R2U-RAIL24 | 2U 460W 80 Plus High Efficiency Power Supply |
|
RG-3023H | 2U 460W 80 Plus High Efficiency Power Supply |
|
RG-2210 | 2U 460W 80 Plus High Efficiency Power Supply |
|
RD-3410T | 2U 460W 80 Plus High Efficiency Power Supply |
|
|
ASH-2210 | 2U 460W 80 Plus High Efficiency Power Supply |
|
|
ASH-3023H | 2U 460W 80 Plus High Efficiency Power Supply |
|
E306L-DE5 | 2U 460W 80 Plus High Efficiency Power Supply |
|
E306L-DE10 | 2U 460W 80 Plus High Efficiency Power Supply |
|
E-204V2-L | 2U 460W 80 Plus High Efficiency Power Supply |
|
E-306V2-L | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-200SEA | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-200SEA-BK | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-200SEA-RD | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-200SEA-SL | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-300SEA | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-300SEA-BK | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-300SEA-RD | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-300SEA-SL | 2U 460W 80 Plus High Efficiency Power Supply |
|
|
STAR200 | 2U 460W 80 Plus High Efficiency Power Supply |
|
|
STAR300 | 2U 460W 80 Plus High Efficiency Power Supply |
|
E306V2L-DE8 | 2U 460W 80 Plus High Efficiency Power Supply |
|
E306V2L-DE8BK | 2U 460W 80 Plus High Efficiency Power Supply |
|
E306V2L-DE8BL | 2U 460W 80 Plus High Efficiency Power Supply |
|
E306V2L-DE8RD | 2U 460W 80 Plus High Efficiency Power Supply |
|
E306V2L-DE8SL | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-300-35 | 2U 460W 80 Plus High Efficiency Power Supply |
|
|
D-300S2 | 2U 460W 80 Plus High Efficiency Power Supply |
|
E-204 | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-300L-SD | 2U 460W 80 Plus High Efficiency Power Supply |
|
|
D-395 | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-395-DE15 | 2U 460W 80 Plus High Efficiency Power Supply |
|
EX2M8 | 2U 460W 80 Plus High Efficiency Power Supply |
|
EX3M16 | 2U 460W 80 Plus High Efficiency Power Supply |
|
EX2M8-750PD8G | 2U 460W 80 Plus High Efficiency Power Supply |
|
EX3M16-750PD8G | 2U 460W 80 Plus High Efficiency Power Supply |
|
EX2M8-60S2UP8 | 2U 460W 80 Plus High Efficiency Power Supply |
|
EX2M8-80S2UP8 | 2U 460W 80 Plus High Efficiency Power Supply |
|
EX3M16-60S2UP8 | 2U 460W 80 Plus High Efficiency Power Supply |
|
EX3M16-80S2UP8 | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-200L-60S2UP8 | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-200L-80S2UP8 | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-200L-75S2UP8G | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-200L-46R2U | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-200L-60S2U | 2U 460W 80 Plus High Efficiency Power Supply |
|
D-300-95R3K8 | 2U 460W 80 Plus High Efficiency Power Supply |
|
E-306L-80R3K | 2U 460W 80 Plus High Efficiency Power Supply |
|
E-306L-95R3K8 | 2U 460W 80 Plus High Efficiency Power Supply |
|
E-204L-80S2UP8 | 2U 460W 80 Plus High Efficiency Power Supply |
|
E-204L-75S2UP8G | 2U 460W 80 Plus High Efficiency Power Supply |
|
RG-2210-46R2UP | 2U 460W 80 Plus High Efficiency Power Supply |
|
E2M8HD | 2U 460W 80 Plus High Efficiency Power Supply |
|
|
U-280HD | 2U 460W 80 Plus High Efficiency Power Supply |
|
U-316HD | 2U 460W 80 Plus High Efficiency Power Supply |
