Model # Image Form
Factor		 5.25"
Drive		 3.5"
Drive		 Hotswap
3.5"		 Slim
Optical		 Slim
FDD		 Expansion
slots		 Mainboard Size(inch) Depth
D-406-EC4U6200712 x 9.6 (ATX, microATX)20.80

D-406L-EC4U6200712 x 13 (EATX, ATX, microATX)27.90

D-200-EC2U2200312 x 9.6 (ATX, microATX, mini-ITX)20.80

D-300-EC3U4200712 x 9.6 (ATX, microATX)20.80

D-406-EC
4U Compact Stylish Rackmount Chassis
Drives:
• 5.25" Drive : 6
• 3.5" Drive(Ext.) : 2
• 3.5" Drive(Int.) : 2

Motherboard Size:
• 12 x 9.6 (ATX, microATX)

Dimension:
• 19.00 x 7.00 x 20.80 inches
• 482.6 x 177.8 x 528.3 mm

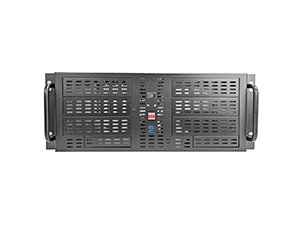

D-406L-EC
4U High Performance Rackmount Chassis
Drives:
• 5.25" Drive : 6
• 3.5" Drive(Ext.) : 2
• 3.5" Drive(Int.) : 2

Motherboard Size:
• 12 x 13 (EATX, ATX, microATX)

Dimension:
• 19.00 x 7.00 x 27.90 inches
• 482.6 x 177.8 x 708.7 mm

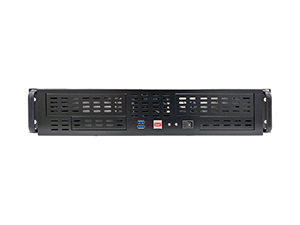

D-200-EC
2U Compact Stylish Rackmount Chassis
Drives:
• 5.25" Drive : 2
• 3.5" Drive(Ext.) : 2

Motherboard Size:
• 12 x 9.6 (ATX, microATX, mini-ITX)

Dimension:
• 19.00 x 3.50 x 20.80 inches
• 482.6 x 88.9 x 528.3 mm

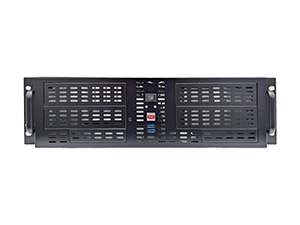

D-300-EC
3U Compact Stylish Rackmount Chassis
Drives:
• 5.25" Drive : 4
• 3.5" Drive(Ext.) : 2
• 3.5" Drive(Int.) : 1

Motherboard Size:
• 12 x 9.6 (ATX, microATX)

Dimension:
• 19.00 x 5.25 x 20.80 inches
• 482.6 x 133.4 x 528.3 mm
